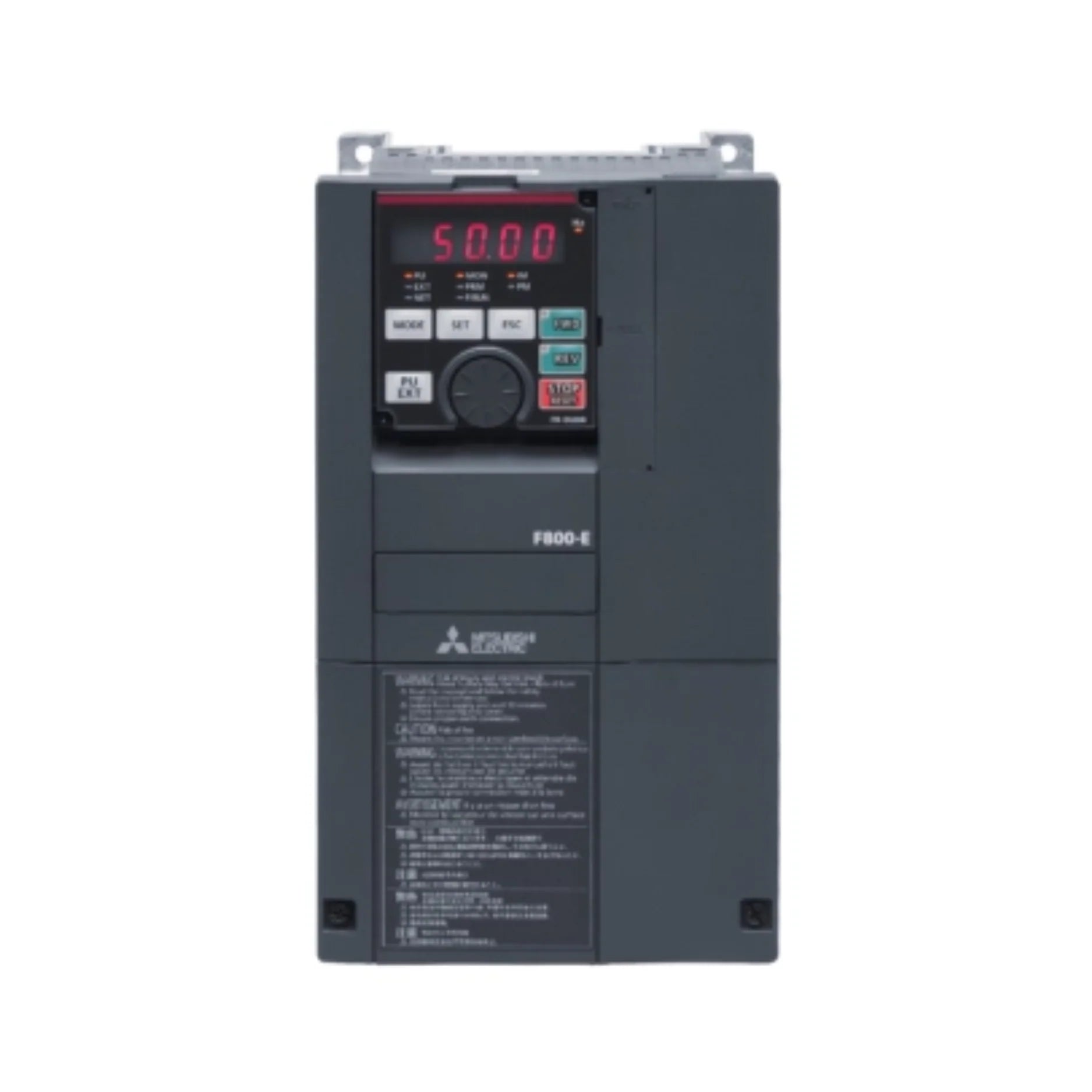

Mitsubishi FR-F840-00126-2-60

Overview

Unlock unparalleled efficiency and precise motor control for your critical HVAC and pump applications with the Mitsubishi FR-F840-00126-2-60 Variable Frequency Drive. As a pivotal component of the advanced FR-F800 series, this 30 HP VFD is expertly engineered to deliver significant energy savings and superior performance in demanding industrial environments. Operating seamlessly on a 3-phase 480V input, it provides robust and reliable operation, ensuring your systems run optimally while minimizing energy consumption. Featuring an IP20 open-type enclosure, the FR-F840-00126-2-60 is perfectly suited for panel mounting, offering a compact and integrated solution for a wide range of industrial installations globally.

Key Features

• Series: FR-F800 – Part of Mitsubishi Electric's innovative FREQROL series, known for cutting-edge technology and reliability.
• Power Rating: 30 HP (22 kW) – Ideal for a broad spectrum of medium-power industrial motor applications.
• Input Voltage: 3-phase 380–480V – Ensures compatibility with standard industrial power supplies across regions.
• Rated Current: 60A – Designed for efficient power handling and smooth operation.
• Enclosure: IP20 (open type) – Provides essential protection for internal components, suitable for integration within control panels.
• Control Method: V/F, vector control, and advanced PID – Offering versatile and highly accurate motor speed and torque regulation.
• Built-in Functions: PLC logic, autotuning, energy monitoring – Enhancing system intelligence, simplifying setup, and tracking energy usage.
• Cooling: Fan cooled – Ensures optimal operating temperatures and prolongs drive lifespan.
• Interface: RS-485, USB, optional Ethernet – Facilitates seamless communication and integration with existing control networks.
• Display: LCD keypad with real-time diagnostics – Provides immediate operational feedback and simplified troubleshooting.

Technical Specifications

• Catalog Number: FR-F840-00126-2-60
• Input Voltage: 3-phase 380–480V ±10%
• Rated Output Current: 60A
• Output Frequency: 0.01 to 400 Hz
• Rated Output Power: 30 HP (22 kW)
• Enclosure Protection: IP20
• Control Modes: V/F, vector, sensorless vector
• Ambient Temperature: -10°C to 50°C
• Dimensions: Approx. 380 x 220 x 210 mm
• Weight: ≈ 11 kg
• Certifications: CE, UL, cUL, RoHS

Applications

The Mitsubishi FR-F840-00126-2-60 VFD is a highly adaptable solution, making it an excellent choice for optimizing performance and energy efficiency across a diverse range of industrial operations:

• HVAC Systems and Chillers: Precisely manage airflow and cooling capacity for enhanced building comfort and reduced energy bills.
• Pump and Fan Control: Optimize fluid and air handling in a variety of industrial processes, preventing over-pressurization and saving energy.
• Building Automation: Integrate seamlessly into intelligent building management systems for centralized control and efficiency.
• Water Treatment Plants: Achieve accurate flow control and energy savings in municipal and industrial water processing.
• Energy-saving Industrial Installations: A cornerstone for any facility aiming to reduce its carbon footprint and operational costs through efficient motor control.

Why Choose This Model?

• Exceptional Energy Efficiency: Specifically optimized for variable torque loads common in HVAC and pumping applications, leading to substantial energy savings.
• Versatile Control Capabilities: With support for V/F, vector, and sensorless vector control, it offers precise and responsive motor regulation for any task.
• Advanced Diagnostics and Monitoring: The integrated LCD keypad provides real-time operational data and diagnostics, simplifying maintenance and reducing downtime.
• Integrated Smart Functions: Built-in PLC logic and autotuning capabilities minimize the need for external controllers, streamlining system design and reducing complexity.
• Robust and Reliable Construction: Featuring industrial-grade components and an IP20 enclosure, this drive is built to withstand challenging industrial environments and ensure long-term reliability.

Order Now

Elevate your industrial operations with the Mitsubishi FR-F840-00126-2-60 Variable Frequency Drive. This high-performance, energy-efficient solution is readily available and ships worldwide, bringing Mitsubishi Electric's renowned quality directly to your facility. Explore the comprehensive range of Mitsubishi FR Series Frequency Inverters (FREQROL category) for additional precision motor control and industrial automation solutions. For a complete overview of Mitsubishi Electric's innovative offerings, browse our full selection of Mitsubishi products.
