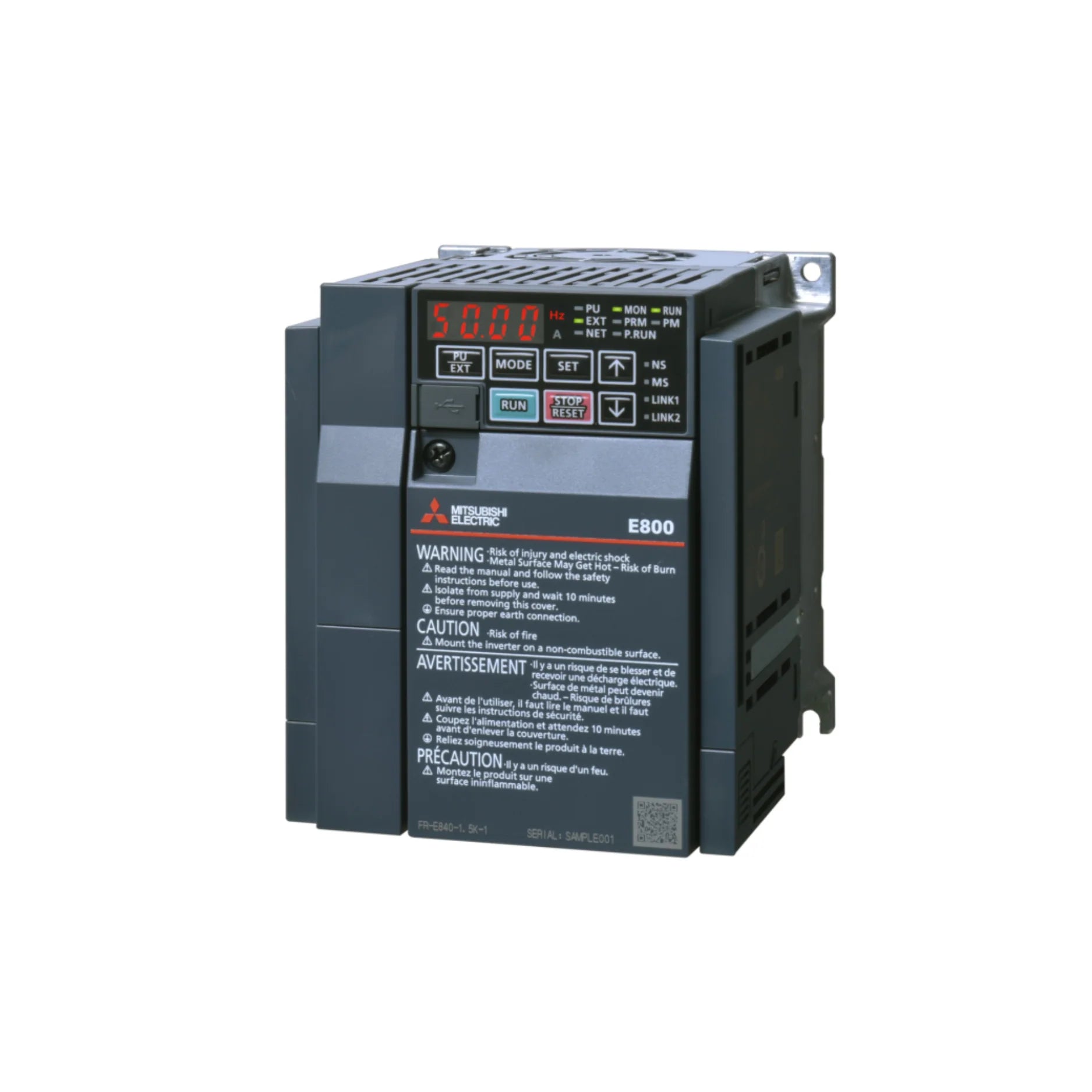

Mitsubishi FR-E840-0040EPB-60

Overview

The Mitsubishi FR-E840-0040EPB-60 is a cutting-edge variable frequency drive (VFD) from Mitsubishi Electric's acclaimed FR-E800 series, meticulously engineered for modern industrial automation. This compact yet powerful inverter delivers a robust 2.2 kW output, perfectly suited for a wide array of motor control applications operating on a 380–480 V three-phase power supply. Its intelligent design seamlessly integrates advanced communication capabilities, including built-in Ethernet (Modbus TCP, CC-Link IE TSN), and a programmable logic controller (PLC) compliant with IEC 61131-3 for enhanced local logic execution. Furthermore, it incorporates essential safety features like Safe Torque Off (STO), ensuring both operational efficiency and personnel protection. The FR-E840-0040EPB-60’s incredibly small footprint makes it an ideal solution for space-constrained environments, offering unparalleled precision, control, and reliability within a remarkably compact package. This VFD represents the pinnacle of Mitsubishi Electric's commitment to innovative, high-performance industrial solutions, providing a versatile and future-proof platform for various automation needs.

Key Features

• Optimal Power Output: Delivers a reliable 2.2 kW output power, designed for efficient operation of industrial motor drives.
• Versatile Voltage Support: Compatible with a wide input range of 3-phase 380–480 V AC, ensuring broad applicability across different power systems.
• Advanced Network Integration: Features built-in Ethernet with support for Modbus TCP and CC-Link IE TSN, facilitating seamless communication and integration into modern automation networks.
• Integrated PLC Functionality: Equipped with an IEC 61131-3 compliant PLC, enabling local logic execution and reducing the need for external control devices.
• Enhanced Safety: Includes Safe Torque Off (STO) functionality, adhering to IEC 61800‑5‑2 standards for critical machine safety applications.
• Proactive Diagnostics: Incorporates predictive maintenance diagnostics and comprehensive energy monitoring capabilities to optimize performance and reduce downtime.
• Space-Saving Design: Its compact form factor is suitable for both panel and DIN-rail mounting, maximizing installation flexibility in tight spaces.
• User-Friendly Configuration: Easily configurable via the intuitive FR Configurator2 software or the integrated keypad interface.

Technical Specifications

• Rated Output Power: 2.2 kW
• Input Voltage: 3-phase 380–480 V AC
• Output Current: Approximately 7–8 A (model-specific, consult documentation for precise values)
• Frequency Range: 0.2–400 Hz
• Control Methods: Supports V/F (Voltage/Frequency), Sensorless vector control, Vector control, and Torque control for precise motor regulation.
• Overload Capacity: 150% for 60 seconds; 200% for 3 seconds, ensuring robustness under demanding conditions.
• Interfaces: Equipped with USB, RS-485, and built-in Ethernet. Optional I/O and network cards are available for expanded connectivity.
• Protection Features: Comprehensive protection includes STO, overcurrent, overvoltage, ground-fault detection, and motor stall detection.
• Cooling: Efficient forced-air cooling system to maintain optimal operating temperatures.
• EMC Filter: Built-in EMC filter to comply with electromagnetic compatibility standards.

Applications

• Compact Packaging and Machine Tools: Ideal for applications where space is limited but precise motion control is paramount.
• Pumps, Fans, and Compressor Drives: Provides efficient and reliable control for various fluid and air handling systems.
• Conveyor Systems with Networked Control: Facilitates seamless integration and precise speed regulation for material handling applications.
• HVAC Environments: Perfect for motor control in heating, ventilation, and air conditioning systems requiring a compact solution.
• Automated Systems: Suited for intelligent automation setups that benefit from local logic execution and integrated safety functions.

Why Choose This Model?

The Mitsubishi FR-E840-0040EPB-60 stands out as an exceptional choice for demanding industrial applications due to its innovative blend of features and Mitsubishi Electric's renowned reliability:

• All-in-One Intelligent Drive: This model consolidates vital functionalities, including Ethernet communication, a powerful built-in PLC, and STO safety, into a single, cohesive unit. This integration simplifies system architecture and enhances overall operational efficiency.
• Compact and Modular Design: Engineered with space efficiency in mind, its compact and modular construction ensures easy integration into even the most confined installation environments, offering significant flexibility in system design.
• Energy-Efficient Performance: Benefit from sophisticated active monitoring and optimized control algorithms that significantly reduce energy consumption, leading to lower operating costs and a reduced environmental footprint.
• Safety and Standards Compliant: With integrated machine safety features, including STO compliant with international standards, you can be assured of a safe working environment and adherence to regulatory requirements.
• Effortless Programming: Configuration and programming are streamlined through user-friendly software tools or the convenient built-in keypad, allowing for quick setup and adjustments, minimizing downtime.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi FR-E840-0040EPB-60 inverter. This high-performance drive offers a unique combination of compact design, intelligent features, and robust safety protocols, making it the ultimate solution for precise, networked motor control. Experience the unparalleled craftsmanship and advanced technology that Mitsubishi Electric is known for. Explore a wider range of cutting-edge solutions within the Mitsubishi FR Series Frequency Inverters (FREQROL category), designed for exceptional precision, superior energy efficiency, and seamless industrial automation integration. For a comprehensive overview of innovative solutions, discover the full spectrum of Mitsubishi products. Upgrade your systems today and achieve new levels of productivity and control!
