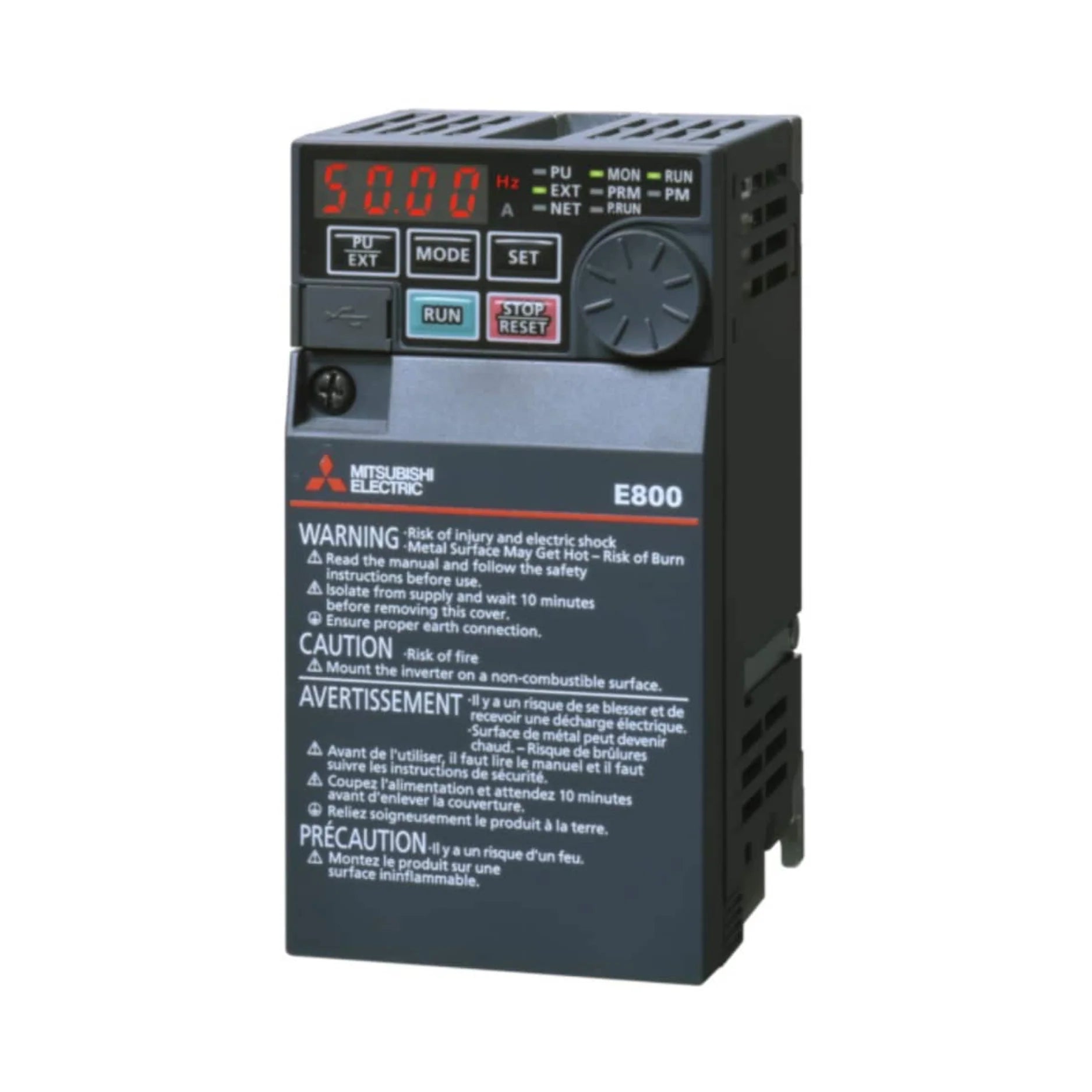

Mitsubishi FR‑E820S‑0030‑4‑60

Overview

Unlock precise and efficient motor control with the Mitsubishi FR-E820S-0030-4-60 VFD Inverter. Engineered as a core component within the renowned FR-E800 series, this compact 0.4 kW variable frequency drive (VFD) is specifically designed for seamless integration into a wide array of single-phase 200–240 V AC input applications. Featuring advanced sensorless vector control, the FR-E820S-0030-4-60 ensures high torque and superior motor performance, making it an ideal solution for optimizing operations in compact machinery such as conveyors, pumps, and fans. Its robust design and sophisticated capabilities guarantee reliable and energy-efficient operation, contributing to reduced operational costs and enhanced system longevity.

Key Features

• Input Voltage: Operates efficiently with 200–240 V AC single-phase power supplies, offering broad compatibility.
• Output Performance: Delivers a consistent 3 A output to power 0.4 kW three-phase motors with exceptional agility.
• Motor Control: Incorporates cutting-edge sensorless vector control technology for high starting torque and precise speed regulation across various loads.
• Compact Design: Housed in a durable IP20 chassis, meticulously engineered for space-saving panel integration without compromising performance.
• Integrated Communication: Features built-in RS-485 communication capabilities, enabling straightforward integration into existing control networks.
• EMC Filter Compatibility: Designed for seamless compatibility with built-in EMC filters, ensuring compliance with electromagnetic compatibility standards and reducing interference.
• Overload Capacity: Offers impressive overload tolerance, sustaining 150% for 60 seconds and 200% for 3 seconds, ideal for demanding applications.
• Cooling System: Equipped with a robust cooling fan and designed for panel mounting, facilitating optimal heat dissipation and extended operational life.

Technical Specifications

• Part Number: FR-E820S-0030-4-60
• Series: FR-E800
• Output Power: 0.4 kW
• Input Voltage: 200–240 V AC (single-phase)
• Output Voltage: 230 V AC (three-phase)
• Output Current: 3 A
• Frequency Range: 0.2 to 400 Hz
• Control Method: V/f (Volts per Hertz) and sensorless vector control
• Cooling: Forced-air
• IP Rating: IP20
• Operating Temperature: –10 °C to +50 °C
• Mounting Type: Panel mount

Applications

The versatility and compact nature of the Mitsubishi FR-E820S-0030-4-60 VFD Inverter make it an excellent choice for a diverse range of industrial and commercial applications requiring precise motor control:

• Material Handling: Perfect for small conveyors and pumping systems where reliable and consistent operation is paramount.
• HVAC Systems: Optimizes performance of fan systems in heating, ventilation, and air conditioning units, enhancing energy efficiency.
• General Industrial Automation: A robust solution for various automated industrial processes demanding accurate speed and torque control.
• Packaging and Labeling: Improves efficiency and precision in packaging and labeling machinery, crucial for high-speed production lines.
• OEM Equipment: An ideal component for Original Equipment Manufacturers looking for high-performance, compact, and reliable motor control.

Why Choose This Model?

The Mitsubishi FR-E820S-0030-4-60 stands out in the crowded market of VFD inverters due to a compelling combination of features and benefits:

• Effortless Integration: Its compact and lightweight design facilitates easy and quick integration into existing control panels, saving valuable space and installation time.
• Single-to-Three Phase Conversion: Uniquely converts single-phase input power to a three-phase output, enabling the use of efficient three-phase motors in single-phase power environments.
• Superior Performance: Leveraging advanced sensorless vector control, this drive ensures enhanced motor performance, offering greater torque control and speed accuracy without the need for external feedback devices.
• Unwavering Reliability: Built with Mitsubishi Electric's renowned quality and engineering excellence, guaranteeing long-term reliability and peace of mind in demanding industrial settings.
• Flexible Connectivity: Offers a variety of communication and configuration options, simplifying setup and allowing for seamless integration with diverse control systems.

Order Now

Enhance your operational efficiency and achieve unparalleled precision in motor control with the Mitsubishi FR-E820S-0030-4-60 VFD Inverter. This high-performance, compact drive is readily available to ship worldwide, ensuring you can quickly upgrade your systems no matter your location.

Discover complementary solutions and explore more options within the extensive Mitsubishi FR Series Frequency Inverters (FREQROL category). These drives are expertly engineered for precision motor control, superior energy efficiency, and advanced industrial automation, catering to a broad spectrum of application needs.

For a comprehensive range of cutting-edge industrial solutions, we invite you to explore our full selection of Mitsubishi products. Equip your operations with the best in class and experience the difference in performance and reliability.
