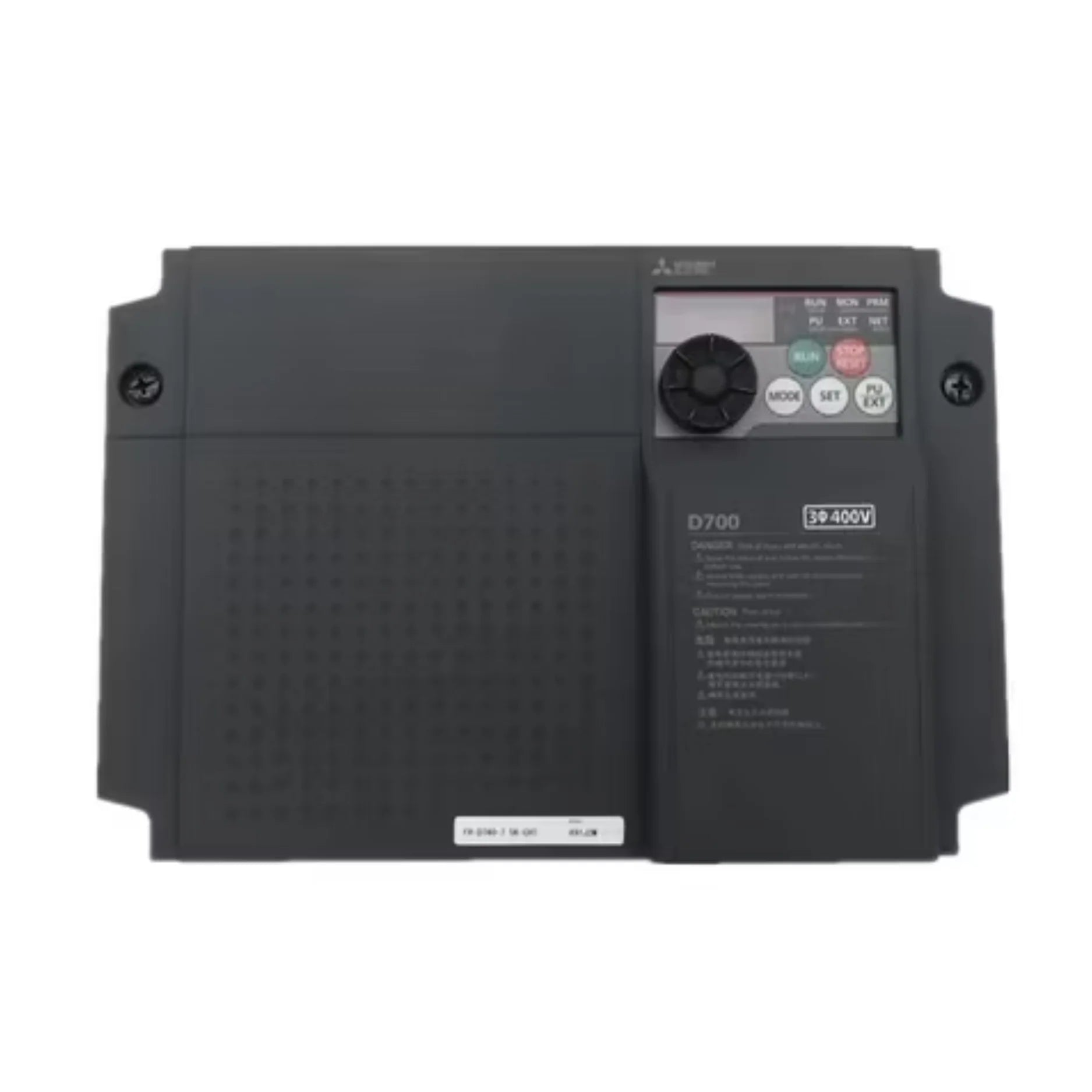

Mitsubishi FR-D740-7.5K-CHT

Overview

The Mitsubishi FR-D740-7.5K-CHT is a state-of-the-art variable frequency drive (VFD) from Mitsubishi Electric's renowned D700 series, meticulously engineered to provide precise and efficient motor control for a diverse range of industrial applications. This robust 7.5kW (10 HP) inverter is designed to operate seamlessly with 3-phase 380–480V input, delivering unparalleled speed and torque regulation. Its compact footprint, intuitive user interface, and integrated braking transistor make it an ideal choice for streamlined panel integration and reliable performance in demanding environments. This VFD embodies Mitsubishi Electric's commitment to quality, offering a powerful yet user-friendly solution for optimizing machinery operation and energy consumption.

Key Features

• Series: FR-D700
• Rated Power: 7.5kW (10 HP)
• Input Voltage: 3-phase 380–480V AC
• Output Voltage: 3-phase 0–480V AC
• Frequency Range: 0.2 to 400 Hz
• Control Mode: V/f and advanced magnetic flux vector control
• Braking Transistor: Built-in for enhanced deceleration control
• Display: Clear LED operator panel for easy monitoring and configuration
• Safety Function: Integrated STO (Safe Torque Off) for increased operational safety
• Cooling: Efficient fan-cooled design
• Mounting: Versatile wall or panel mount options

Technical Specifications

• Catalog Number: FR-D740-7.5K-CHT
• Power Output: 7.5kW (10 HP)
• Input Voltage: 3-phase 380–480V ±10%
• Output Frequency: 0.2–400 Hz
• Overload Capacity: 150% for 60s, ensuring robust performance under load
• Control System: V/f, V/f PG, Advanced flux vector for accurate motor management
• Protection Rating: IP20, providing protection against solid objects
• Ambient Temperature: -10°C to 50°C
• Dimensions: Approximately 260 x 150 x 140 mm
• Weight: Approximately 4.0 kg
• Certifications: CE, UL, cUL, RoHS compliant, ensuring global applicability and safety standards

Applications

The versatility and robust performance of the Mitsubishi FR-D740-7.5K-CHT VFD make it suitable for a wide array of industrial applications, including but not limited to:

• Fans and pumps, optimizing fluid dynamic systems
• Conveyors and mixers, enhancing material handling processes
• Machine tools, providing precision control for manufacturing equipment
• HVAC systems, improving energy efficiency and environmental control
• General-purpose motor speed control across various machinery

Why Choose This Model?

• Built-in Brake Transistor: Simplifies system design and reduces the need for external components, offering cost savings and easier integration.
• Compact & Efficient: Engineered to maximize space utilization without compromising on performance, making it ideal for installations with limited enclosure space.
• Flexible Control: Features advanced V/f control and magnetic flux vector control, providing exceptional versatility for various motor types and operational requirements.
• Easy Setup: Designed for user-friendliness with simple keypad operation and straightforward configuration, minimizing commissioning time and effort.
• Robust & Reliable: Built with Mitsubishi Electric's renowned industrial quality, ensuring long-term reliability and consistent performance in demanding industrial environments.
• Integrated Safety: The built-in STO (Safe Torque Off) function enhances operational safety, aligning with modern industrial safety standards.

Order Now

The Mitsubishi FR-D740-7.5K-CHT Variable Frequency Drive is readily available and can be shipped worldwide to meet your industrial automation needs. Elevate your motor control capabilities with this high-performance inverter. Discover more innovative solutions within the Mitsubishi FR Series Frequency Inverters (FREQROL category), designed for precision motor control, superior energy efficiency, and advanced industrial automation. For a comprehensive overview of additional cutting-edge solutions, explore the full range of Mitsubishi Electric products.
