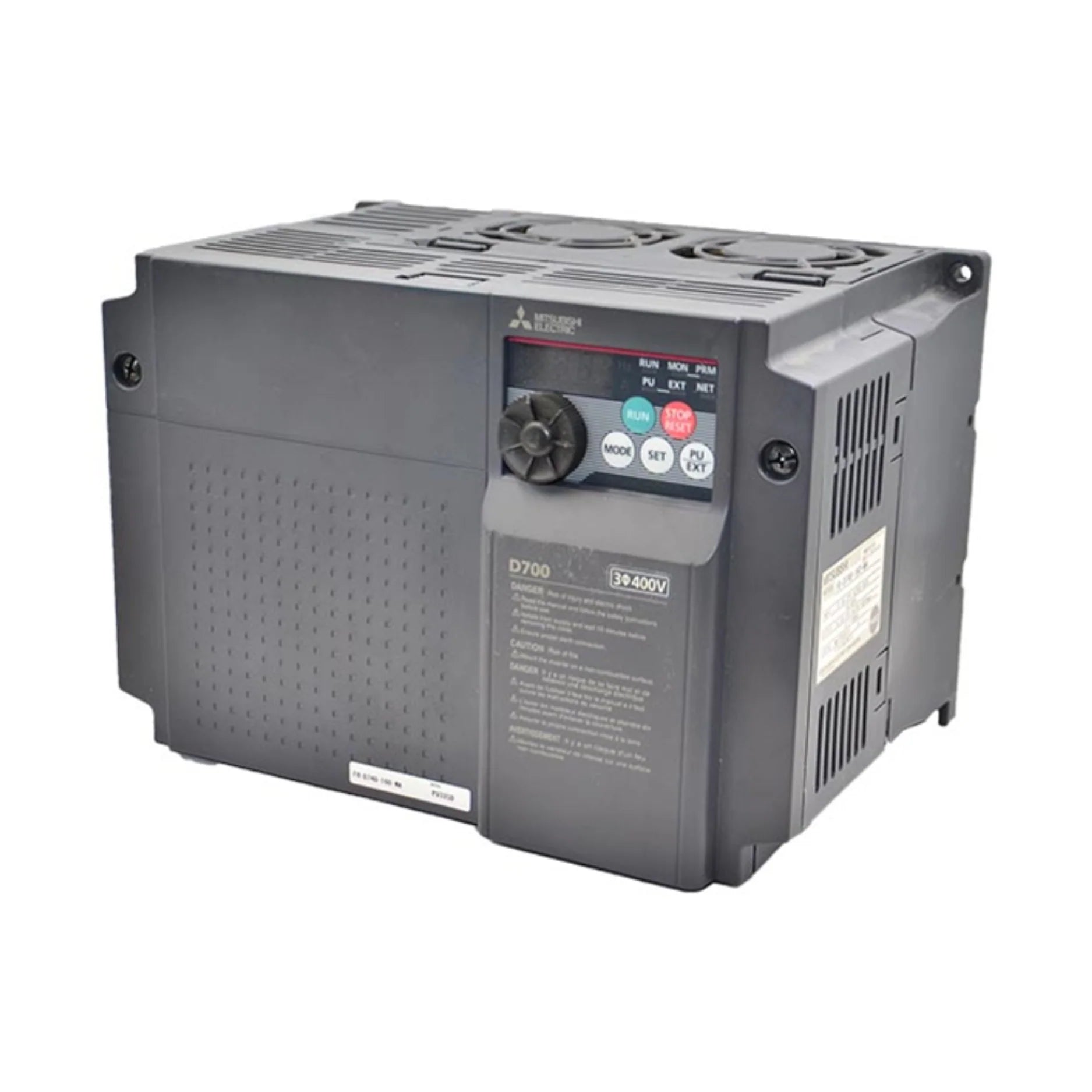

Mitsubishi FR-D740-160-NA

Overview

Experience unparalleled precision and energy efficiency with the Mitsubishi FR-D740-160-NA, a leading Variable Frequency Drive (VFD) inverter from the acclaimed FR-D700 series. Engineered by Mitsubishi Electric, a global leader in industrial automation, this VFD is meticulously designed to optimize motor control in a wide array of general-purpose applications. With a robust 20 HP capacity and seamless operation on a 240V 3-phase input, the FR-D740-160-NA offers a harmonious blend of user-friendly setup, consistently reliable performance, and exceptional durability. Its compact footprint ensures easy integration into existing control panels, making it an ideal solution for modern industrial environments demanding both space efficiency and high functionality. This inverter not only promises superior motor regulation but also contributes significantly to energy savings and reduced operational costs.

Key Features

• High-Performance Rating: Delivers a robust 20 HP (15 kW) of power, ensuring effective control for demanding applications.
• Versatile Input Voltage: Designed for 3-phase 240V power, providing broad compatibility for industrial setups.
• Wide Output Frequency Range: Offers a flexible output frequency from 0.2 Hz to 400 Hz, allowing for precise speed adjustments.
• Space-Saving Design: Its compact form factor is specifically engineered for efficient integration into crowded control panels.
• Integrated Braking Transistor: Enhances safety and control by allowing for rapid deceleration of motors.
• Advanced Communication: Features built-in RS-485 (Modbus RTU) communication for seamless integration into supervisory control systems.
• Quiet Operation: Utilizes Soft-PWM technology to ensure low-noise motor operation, contributing to a more comfortable working environment.
• Intelligent Control Functions: Equipped with built-in PID control for stable process regulation and energy-saving functions to optimize power consumption.
• Effortless Setup: Facilitates quick and easy parameter settings through an intuitive digital dial and clear display panel.

Technical Specifications

• Part Number: FR-D740-160-NA
• Manufacturer: Mitsubishi Electric
• Series: FR-D700
• Rated Capacity: 20 HP (15 kW)
• Input Voltage: 3-phase 200–240 V ±10%
• Output Voltage: 3-phase 200–240 V
• Output Current: 66 A
• Frequency Range: 0.2–400 Hz
• Control Method: V/F and slip compensation
• Overload Capacity: 150% for 60 seconds
• Protection: IP20
• Operating Temperature: –10 °C to +50 °C
• Cooling Method: Fan cooled
• Certifications: UL, cUL, CE

Applications

The Mitsubishi FR-D740-160-NA is a highly versatile VFD inverter, making it suitable for a diverse range of industrial and commercial applications that require reliable and precise motor control:

• HVAC Systems: Optimally controls fans and blowers for efficient air circulation and temperature regulation.
• Fluid Management: Ideal for pumps and compressors, ensuring consistent flow and pressure control in water treatment, chemical processing, and other industries.
• Material Handling: Provides smooth and controlled operation for conveyor systems, enhancing production line efficiency and safety.
• General Industrial Machinery: Perfect for a wide array of manufacturing equipment, offering improved performance and reduced wear and tear.
• Small Automation Systems: Enhances the functionality and efficiency of compact automated processes, delivering precise motion control.

Why Choose This Model?

The Mitsubishi FR-D740-160-NA stands out as an exceptional choice for anyone seeking a high-quality, reliable, and efficient VFD inverter. Its advanced design offers a comprehensive solution for modern motor control challenges. Opting for this model means investing in:

• Optimized Performance and Space-Efficiency: Achieve superior motor control from a compact unit, freeing up valuable panel space.
• Reduced System Complexity: Built-in features, such as the braking transistor and communication capabilities, minimize the need for external components, simplifying installation and reducing overall system costs.
• Unmatched Mitsubishi Quality: Benefit from the renowned reliability and technological expertise that Mitsubishi Electric is known for, backed by extensive global support and service.
• Streamlined Installation and Operation: Enjoy quick and straightforward setup with intuitive controls, allowing for rapid deployment and easy parameter adjustments.
• Proven Industrial Durability: Rely on a VFD that has demonstrated consistent performance and robustness across various challenging industrial environments.

Order Now

Enhance your operational efficiency and achieve superior motor control by ordering the Mitsubishi FR-D740-160-NA VFD inverter today. This high-performance unit is readily available and ships worldwide, ensuring you can quickly implement this cutting-edge technology into your systems.

For a broader selection of precision motor control solutions, explore the extensive range of Mitsubishi FR Series Frequency Inverters (FREQROL category). These drives are specifically engineered for optimal energy efficiency, precise control, and seamless integration into industrial automation frameworks.

Furthermore, discover our complete catalog of Mitsubishi products for additional innovative solutions designed to meet your diverse industrial needs. Partner with us for reliable automation components and unparalleled technical support.
