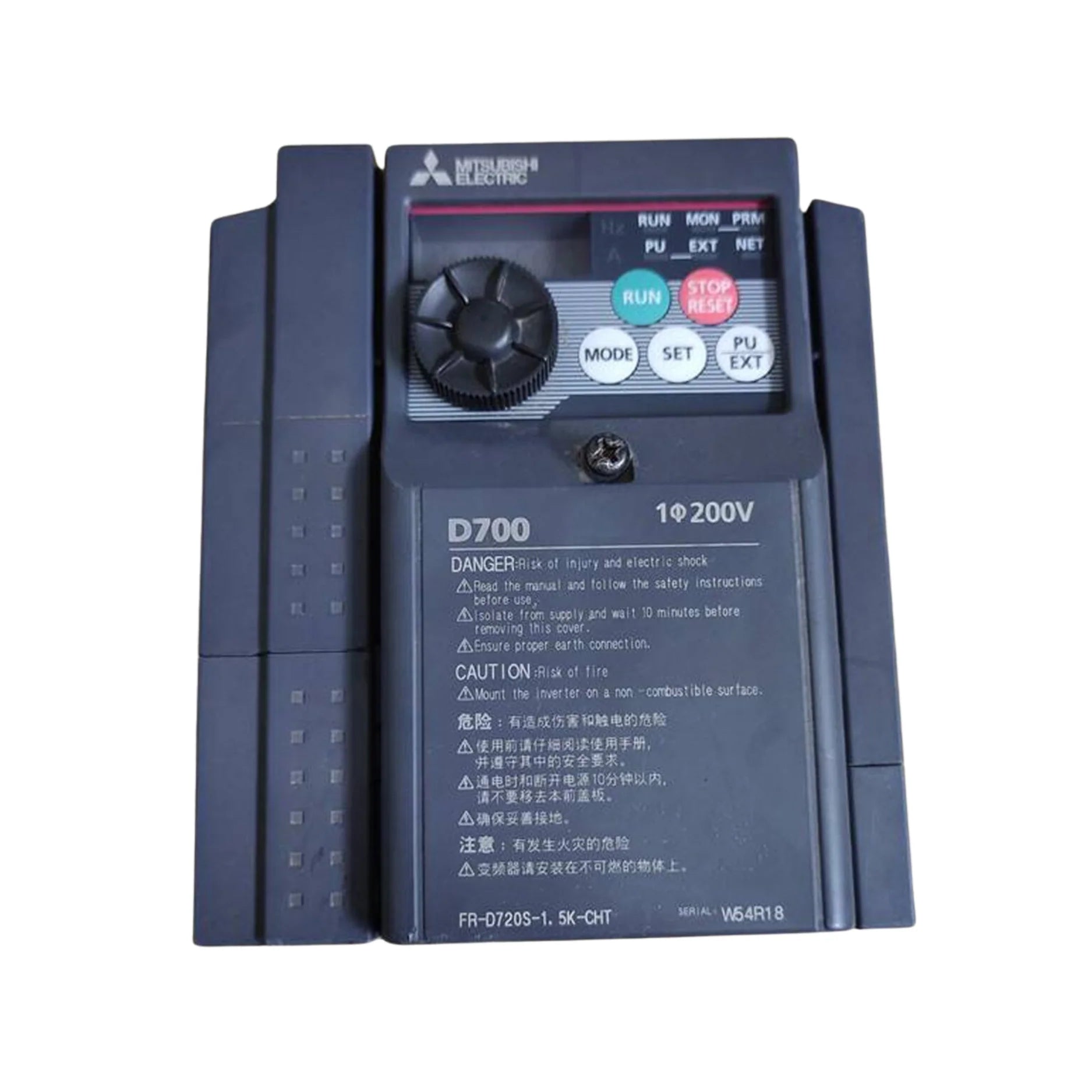

Mitsubishi FR-D720S-1.5K-CHT

Overview

Unlock superior motor performance and energy efficiency with the Mitsubishi FR-D720S-1.5K-CHT, a cutting-edge Variable Frequency Drive (VFD) from Mitsubishi Electric's renowned D700 series. Engineered for precision and reliability, this compact inverter is specifically designed for 1.5kW (2 HP) motors operating on single-phase 220V power supplies. It represents an ideal solution for a broad spectrum of small to mid-sized industrial and commercial applications that demand precise and dependable speed control of AC motors. Its user-friendly interface and robust safety features ensure seamless integration and long-term, trouble-free operation.

The FR-D720S-1.5K-CHT is more than just a motor controller; it's a gateway to optimized operational efficiency. With its streamlined design and advanced functionalities, it facilitates easy installation and minimal maintenance, making it a cost-effective choice for modern industrial environments. Whether you're looking to enhance existing systems or integrate new automation processes, this Mitsubishi VFD delivers unparalleled performance and reliability.

Key Features

• Optimized Power Output: Delivers precise control for 1.5kW (2 HP) motors, ensuring efficient operation.
• Versatile Input Voltage: Compatible with single-phase 200–240V AC power, providing broad application flexibility.
• Robust Output Voltage: Provides 3-phase 200–240V output, suitable for a wide range of AC motors.
• Wide Frequency Range: Offers a flexible output frequency from 0.2 to 400 Hz for diverse speed control needs.
• Advanced Control Modes: Features both V/F (Voltage/Frequency) and Slip Compensation Control for enhanced motor regulation.
• Space-Saving Design: Ultra-compact dimensions significantly reduce the footprint required in control panels.
• Integrated PID Control: Built-in Proportional-Integral-Derivative control ensures stable and accurate process control.
• Energy-Saving Functions: Incorporates intelligent features to minimize energy consumption and reduce operational costs.
• Intuitive User Interface: Equipped with a digital operator panel and clear LED display for easy monitoring and parameter adjustments.
• Comprehensive Safety Features: Includes integrated protection against overload, overvoltage, and undervoltage, safeguarding both the VFD and connected equipment.

Technical Specifications

• Model Number: FR-D720S-1.5K-CHT
• Motor Output: 1.5kW (2 HP)
• Input Phase: Single-phase
• Output Phase: 3-phase
• Input Voltage Range: 200–240VAC
• Output Frequency: 0.2–400 Hz
• Approximate Dimensions (H x W x D): 150 × 100 × 140 mm
• Approximate Weight: 1.2 kg
• Cooling Method: Forced Air Cooling
• Operating Temperature: -10 °C to 50 °C
• Certifications: CE, UL, RoHS compliant

Applications

The Mitsubishi FR-D720S-1.5K-CHT VFD is a versatile solution, perfectly suited for optimizing a wide range of industrial and commercial applications, including:

• Material Handling Systems: Ideal for small conveyors, ensuring smooth acceleration and deceleration, and precise speed control.
• Fluid Management: Effectively controls the speed of pumps, fans, and blowers, leading to significant energy savings and improved process efficiency.
• Mixing and Agitation: Provides consistent and controllable motor speeds for various mixers and agitators in chemical, food, and other process industries.
• HVAC Systems: Enhances the efficiency and control of heating, ventilation, and air conditioning systems, optimizing energy usage and indoor climate.
• General Industrial Automation: A robust component for various automated machinery, offering reliability and precision.
• Commercial Equipment: Suitable for a range of commercial applications requiring dependable motor speed adjustment.
• Energy-Efficient Motor Control: A cornerstone for implementing energy-saving strategies across diverse motor-driven applications.

Why Choose This Model?

• Unwavering Reliability: Benefit from Mitsubishi Electric's decades of expertise in VFD technology, ensuring consistent and dependable performance.
• Superior Space Optimization: Its exceptionally compact design is engineered for seamless integration into tight control panels and machinery, maximizing valuable space.
• Effortless Operation: Experience simplified programming and rapid startup procedures, reducing installation time and operational complexities.
• Comprehensive Integrated Functions: Equipped with advanced features such as PID control for process regulation, robust braking capabilities for enhanced safety, and continuous safety monitoring, providing a holistic motor control solution.
• Economical Motor Control: Specifically optimized for single-phase motor applications, this VFD offers a cost-effective path to achieving precise speed control and significant energy savings.
• Global Availability: Ready for immediate shipment to customers worldwide, ensuring your projects stay on schedule.

Order Now

Elevate your motor control capabilities today with the Mitsubishi FR-D720S-1.5K-CHT inverter. This high-performing VFD is currently in stock and available for worldwide shipping, allowing you to quickly implement advanced motor control in your operations. Explore more innovative solutions within the Mitsubishi FR Series of Frequency Inverters (FREQROL category), renowned for precision motor control, exceptional energy efficiency, and seamless integration into industrial automation systems. For an extensive array of industrial solutions, we invite you to browse the full range of premium Mitsubishi products.
