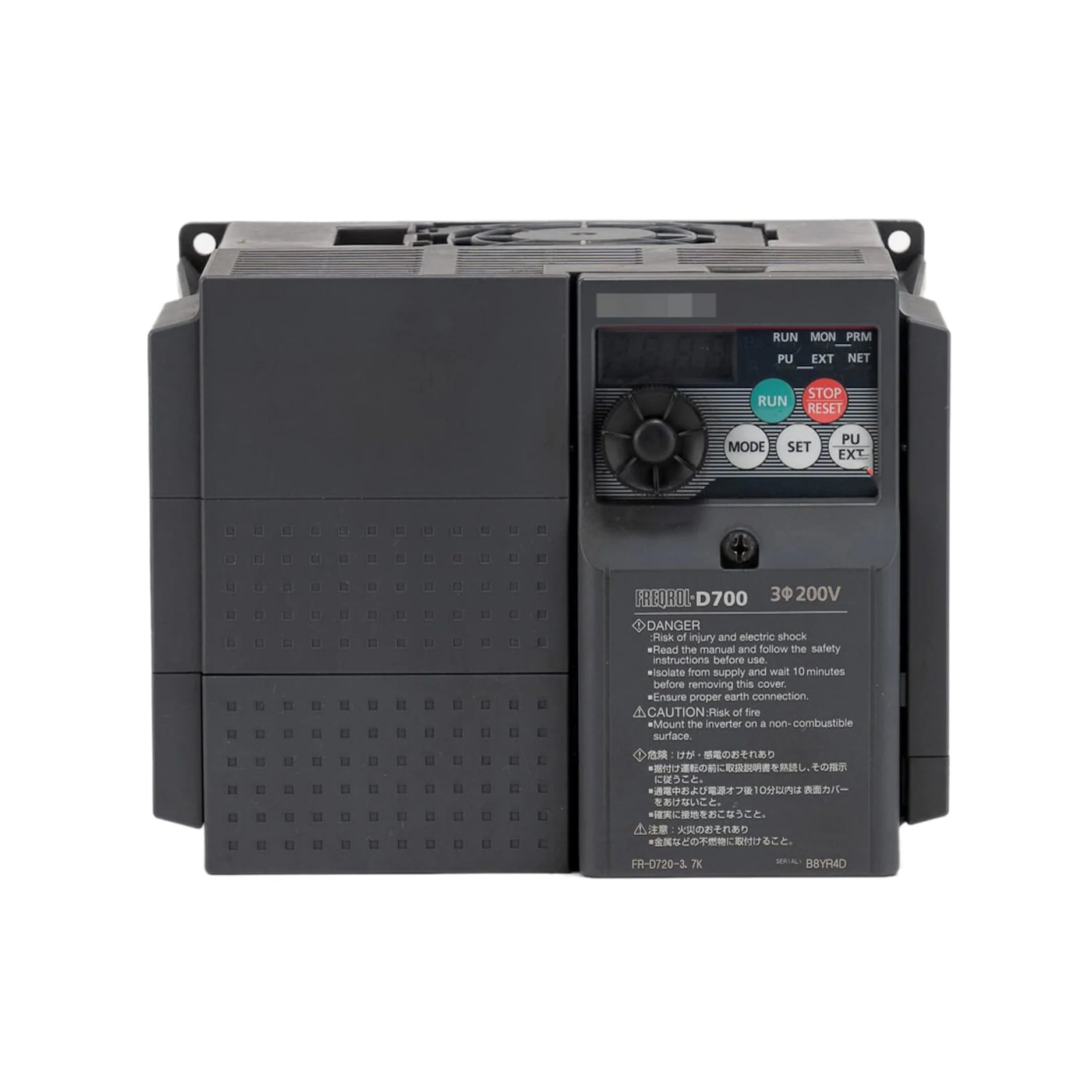

Mitsubishi FR-D720-3.7K

Overview

Elevate your industrial processes with the Mitsubishi FR-D720-3.7K Variable Frequency Drive (VFD), a cutting-edge solution engineered for precision AC motor control. Part of the renowned FR-D700 series, this 3.7kW (5 HP) inverter is designed to optimize performance in a wide array of general-purpose and light industrial applications. Its compact footprint belies its robust capabilities, offering advanced speed and torque control within a space-saving design. With a single-phase 200V input, it's an ideal choice for diverse operational requirements. The FR-D720-3.7K incorporates a built-in braking transistor, ensuring rapid and safe deceleration without the need for external components. Furthermore, its energy-saving functionalities and intuitive user interface contribute to a highly efficient and user-friendly experience, making it a valuable asset for enhancing productivity and reducing operational costs. Experience the reliability and innovation synonymous with Mitsubishi Electric.

Key Features

• Series: FR-D700 - A trusted series known for reliability and performance.
• Rated Output: 3.7kW (5 HP) - Provides ample power for a variety of motor applications.
• Input Voltage: Single-phase 200–240V AC - Versatile compatibility for common power supplies.
• Output Voltage: 3-phase 200–240V AC - Delivers stable power to your AC motors.
• Output Frequency: 0.2 to 400 Hz - Wide frequency range for flexible speed control.
• Control Method: V/f and advanced magnetic flux vector control - Ensures precise and dynamic motor performance.
• Braking: Built-in brake transistor - Facilitates enhanced and efficient braking.
• Display: LED operator panel - Provides clear and intuitive operational feedback.
• Safety Function: Built-in STO (Safe Torque Off) - Enhances operational safety by preventing unexpected motor startup.
• Mounting: Wall or panel mount - Offers flexible installation options to suit your setup.
• Cooling: Fan-cooled - Ensures optimal operating temperatures for extended lifespan.

Technical Specifications

• Catalog Number: FR-D720-3.7K
• Rated Power: 3.7kW (5 HP)
• Input Voltage: 1-phase 200–240V ±10%
• Output Frequency: 0.2–400 Hz
• Overload Capacity: 150% for 60 seconds - Designed for demanding loads.
• Control System: V/f, V/f PG, Advanced vector - Superior control for various motor types.
• Protection Rating: IP20 - Provides protection against solid objects.
• Ambient Temperature: -10°C to 50°C - Suitable for a wide range of industrial environments.
• Dimensions: Approx. 150 x 100 x 140 mm - Compact design for space-saving installations.
• Weight: ≈ 2.5 kg - Lightweight for easy handling and installation.
• Certifications: CE, UL, cUL, RoHS - Ensures compliance with international standards.

Applications

The versatility and robust performance of the Mitsubishi FR-D720-3.7K make it an ideal choice for a diverse range of industrial applications, including:

• Fans and Blowers: Optimizes airflow control for HVAC systems and ventilation.
• Small Conveyors: Ensures smooth and precise material handling in production lines.
• Food Processing Equipment: Provides reliable control for various food manufacturing machinery.
• OEM Machinery: Integrates seamlessly into original equipment manufacturer designs.
• General AC Motor Speed Control: A universal solution for various motor-driven systems requiring adjustable speed.

Why Choose This Model?

• Compact Design: Maximizes panel space efficiency, perfect for installations with limited room.
• Simple Setup: Features a user-friendly interface that facilitates quick and hassle-free commissioning, minimizing downtime.
• Reliable Motor Control: Delivers consistently efficient and stable performance, ensuring operational continuity and product quality.
• Built-in Brake Transistor: Provides enhanced braking capabilities without the need for additional external hardware, simplifying integration and reducing costs.
• Energy Saving: Incorporates advanced motor control algorithms that significantly reduce power consumption, contributing to lower operating expenses and a more sustainable operation.

Order Now

The Mitsubishi FR-D720-3.7K VFD is readily available to enhance your motor control applications and ships worldwide. Explore our comprehensive selection within the Mitsubishi FR Series Frequency Inverters (FREQROL category), specifically designed for precision motor control, exceptional energy efficiency, and advanced industrial automation. For a complete overview of innovative solutions, discover the full range of Mitsubishi products.
