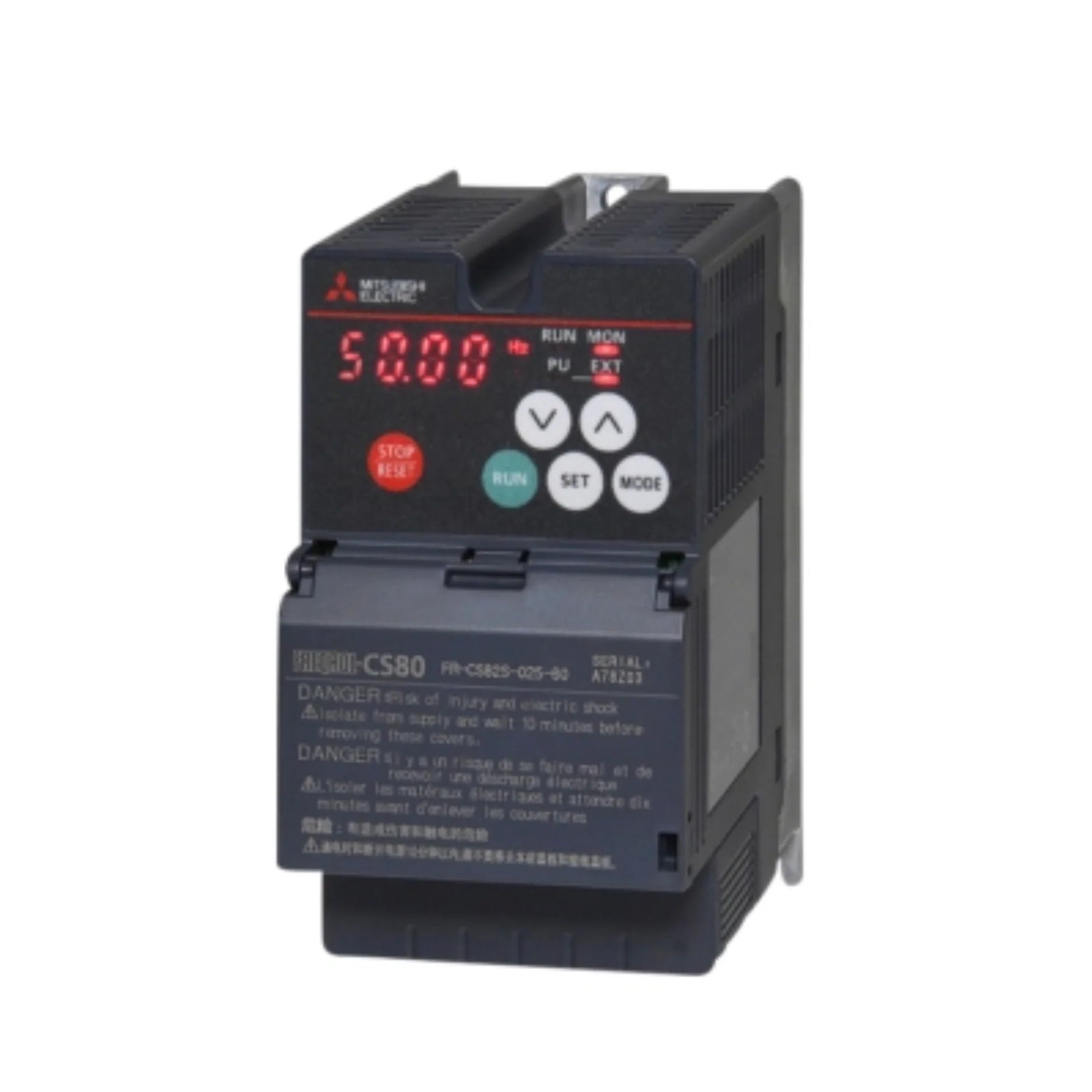

Mitsubishi FR-CS82S-025-60

Overview

The Mitsubishi FR-CS82S-025-60 is a high-performance, compact frequency inverter from the acclaimed FR-CS80 series, meticulously engineered by Mitsubishi Electric. This robust drive is designed to deliver precise and efficient 2.5 kW (approximately 3.3 HP) motor control for industrial applications operating on 3-phase 200V systems. Its innovative design integrates advanced energy-saving functionalities, a built-in RS-485 Modbus RTU communication interface, and an essential embedded EMC filter. These features make the FR-CS82S-025-60 an ideal solution for optimizing a diverse range of small machinery, conveyor systems, and critical fan/pump applications, ensuring seamless operation and enhanced energy efficiency.

Engineered for reliability and ease of integration, this inverter embodies Mitsubishi Electric's commitment to quality and technological advancement. Its compact footprint belies its powerful capabilities, providing a space-saving yet high-performing solution for modern industrial environments. Experience reduced operational costs, improved system longevity, and streamlined control with this exceptional frequency inverter.

Key Features

• Series: FR-CS80 – Part of Mitsubishi Electric's renowned FR-CS80 series, known for its compact design and powerful functionality.
• Output Power: 2.5 kW (approximately 3.3 HP) – Provides ample power for a wide range of motor control demands.
• Input Voltage: 3-phase 200–240 V AC – Compatible with standard industrial power supplies.
• Control Modes: V/F, V/F with PG, vector control – Offers versatile control options for various motor types and applications.
• Communications: RS-485 Modbus RTU (standard) – Enables seamless integration into existing control networks without additional modules.
• Filter: Built-in EMC filter – Effectively reduces electromagnetic interference, ensuring compliance and reliable operation.
• Enclosure: IP20 open type – Designed for indoor use in controlled environments.
• Display: 4-digit LED display with function keys – Provides clear operational feedback and easy parameter adjustment.
• Protection: Comprehensive suite of protective functions including overload, overvoltage, undervoltage, and overheat – Safeguards both the inverter and the connected motor.
• Energy-Saving Functions: Advanced algorithms to optimize motor usage and significantly reduce power consumption.

Technical Specifications

• Model Number: FR-CS82S-025-60
• Rated Output: 2.5 kW
• Max Output Current: Approximately 12 A
• Input Voltage Range: 200–240 V ±10%
• Frequency Range: 0.2 to 400 Hz – Offers broad speed control capabilities.
• Carrier Frequency: Up to 15 kHz (adjustable) – Allows for fine-tuning of motor operation and acoustic noise.
• Ambient Temperature: –10 °C to +50 °C – Ensures reliable performance in diverse industrial settings.
• Mounting: DIN rail or panel mount – Provides flexible installation options.
• Dimensions: Approximately 150 × 100 × 140 mm (H×W×D) – Ultra-compact design for space-constrained applications.
• Weight: ≈ 1.5 kg – Lightweight for easy handling and installation.
• Certifications: CE, UL, cUL, RoHS – Complies with international safety and environmental standards.

Applications

• Small Conveyors and Packaging Equipment: Provides precise speed and torque control for efficient material handling.
• Fan and Pump Control Systems: Optimizes energy consumption and enhances control in HVAC and fluid management systems.
• Material Handling and Feeders: Ensures smooth and regulated operation in automated processes.
• Energy-Efficient OEM Machinery: An ideal component for original equipment manufacturers focused on sustainability and performance.
• General-Purpose 3-Phase Motor Control: Versatile enough for a broad spectrum of industrial motor applications requiring speed regulation and efficiency.

Why Choose This Model?

Choosing the Mitsubishi FR-CS82S-025-60 frequency inverter means investing in precision, efficiency, and reliability for your industrial operations. This model stands out due to several compelling advantages:

• Space-Saving Design: Its remarkably compact size allows for easy integration into tight control panels and machinery, maximizing valuable industrial floor space.
• Energy Efficient Operations: Equipped with advanced energy-saving functionalities, this inverter intelligently optimizes motor usage, leading to significant reductions in power consumption and operational costs over time.
• Flexible Control Options: With support for multiple control modes, including V/F, V/F with PG, and vector control, the FR-CS82S-025-60 adapts seamlessly to various motor types and application requirements, offering superior performance and adaptability.
• Integrated Communication & Filtering: The inclusion of a built-in RS-485 Modbus RTU interface and an integrated EMC filter eliminates the need for external modules, simplifying installation, reducing overall system cost, and ensuring compliance with electromagnetic compatibility standards.
• Global Standard Compliance: Holding CE, UL, cUL, and RoHS certifications, this inverter meets rigorous international safety and environmental standards, making it suitable for global deployment and guaranteeing peace of mind.
• Reliable Mitsubishi Electric Quality: Benefit from the renowned engineering excellence and durability synonymous with Mitsubishi Electric, ensuring a long operational life and minimal downtime.

Order Now

Elevate your industrial automation with the advanced capabilities of the Mitsubishi FR-CS82S-025-60 frequency inverter. This high-quality, compact drive is readily available and ships worldwide, bringing Mitsubishi Electric's renowned reliability and performance directly to your operation.

Explore our extensive range of Mitsubishi FR Series Frequency Inverters (FREQROL) to discover more options designed for precision motor control, exceptional energy efficiency, and seamless industrial automation. For a complete overview of innovative solutions, we invite you to browse our full selection of Mitsubishi Electric products. Partner with us to optimize your systems today.
