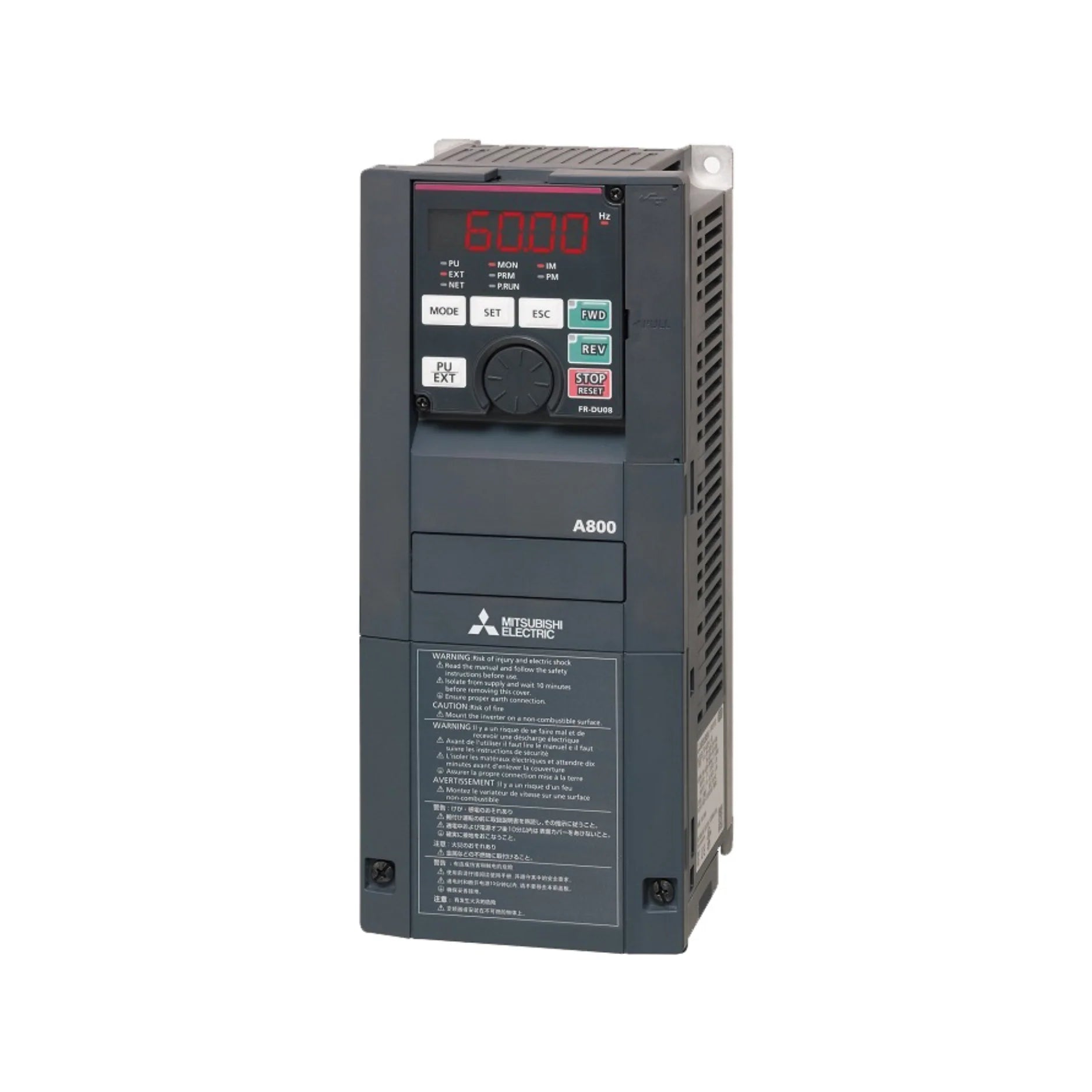

Mitsubishi FR-A820-2.2K-1

Overview

The Mitsubishi FR-A820-2.2K-1 is a state-of-the-art inverter drive engineered to deliver unparalleled performance in demanding industrial applications. As a core component of Mitsubishi’s advanced FR-A800 series, this variable frequency drive (VFD) provides exceptional motor control for 3-phase systems operating at 200V, delivering a robust 2.2 kW of power. Its sophisticated design integrates advanced vector control technology, ensuring precise motor management and optimal energy efficiency. Ideal for a wide array of industrial settings, the FR-A820-2.2K-1 stands out with its versatile integration capabilities, supported by extensive I/O options and user-friendly functionalities. This VFD is a testament to Mitsubishi Electric’s commitment to innovation, offering a long-life design and enhanced reliability for continuous operation.

Key Features

• Robust Power Output: Delivers 2.2 kW of power for 3-phase, 200V systems, ensuring efficient operation for a variety of industrial motors.
• Advanced Vector Control: Features cutting-edge vector control technology, enabling high torque at low speeds and exceptional precision across the entire speed range.
• Integrated PLC Functionality: Equipped with a built-in PLC function, offering flexible automation possibilities and reducing the need for external control systems.
• User-Friendly Interface: Includes a USB port for easy connectivity and parameter setting via FR Configurator2 software, simplifying setup and maintenance. A multi-language LCD display provides intuitive operation and monitoring.
• Enhanced Durability & Safety: Boasts a long-life design with extended service intervals, minimizing downtime. Standard safety stop function (STO) ensures operational safety.
• Regenerative Braking Capability: Supports optional regenerative braking modules, allowing for energy recovery in applications with frequent deceleration.

Technical Specifications

• Input Voltage: 3-phase 200 V AC
• Output Power: 2.2 kW
• Output Frequency Range: 0.01–590 Hz
• Control Method: V/f control, advanced vector control, real sensorless vector control
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
• Protection: IP20 enclosure rating
• Ambient Temperature: -10 to 50 °C
• Communication Interfaces: USB, RS-485 (MODBUS RTU), with options for additional network cards for expanded connectivity.

Applications

• Conveyor Systems & Material Handling: Provides precise speed and torque control for efficient and smooth operation of conveyor belts and material transport systems.
• Pumps & Fans: Optimizes energy consumption in pump and fan applications through intelligent speed regulation, leading to significant energy savings.
• Hoists, Cranes & Lifts: Ensures accurate torque precision and smooth movement for lifting and hoisting equipment, enhancing safety and operational efficiency.
• Machine Tools & Automated Systems: Integrates seamlessly into complex machine tools and automated manufacturing systems, offering reliable and high-performance motor control.
• General Industrial Motor Control: Suitable for a broad spectrum of industrial motor control environments where precision, efficiency, and reliability are paramount.

Why Choose This Model?

The Mitsubishi FR-A820-2.2K-1 stands out as a superior choice for industrial applications due to its combination of advanced technology and Mitsubishi’s renowned engineering excellence. Experience superior torque control through cutting-edge sensorless vector technology, which provides precise motor regulation without the need for external feedback devices. Enjoy integrated safety and automation functions, simplifying system design and enhancing operational reliability. This model represents Mitsubishi’s proven reliability and performance, ensuring a robust and long-lasting solution for your drive systems. Its customizable nature, through expansion cards and versatile parameter sets, allows for tailored solutions to meet specific application requirements. Designed for flexibility and long-term operation, the FR-A820-2.2K-1 offers a future-proof investment for optimizing industrial processes.

Order Now

Elevate your industrial drive systems to new heights of precision and efficiency with the Mitsubishi FR-A820-2.2K-1. This inverter drive is expertly engineered for superior control, exceptional durability, and maximized industrial productivity. Explore greater possibilities with the comprehensive Mitsubishi FR Series Frequency Inverters (FREQROL category), renowned for their precision motor control, outstanding energy efficiency, and seamless industrial automation capabilities. For a complete range of industrial solutions, we invite you to discover the full breadth of Mitsubishi Electric products.
