Mitsubishi FG4000GX-90DA

Overview

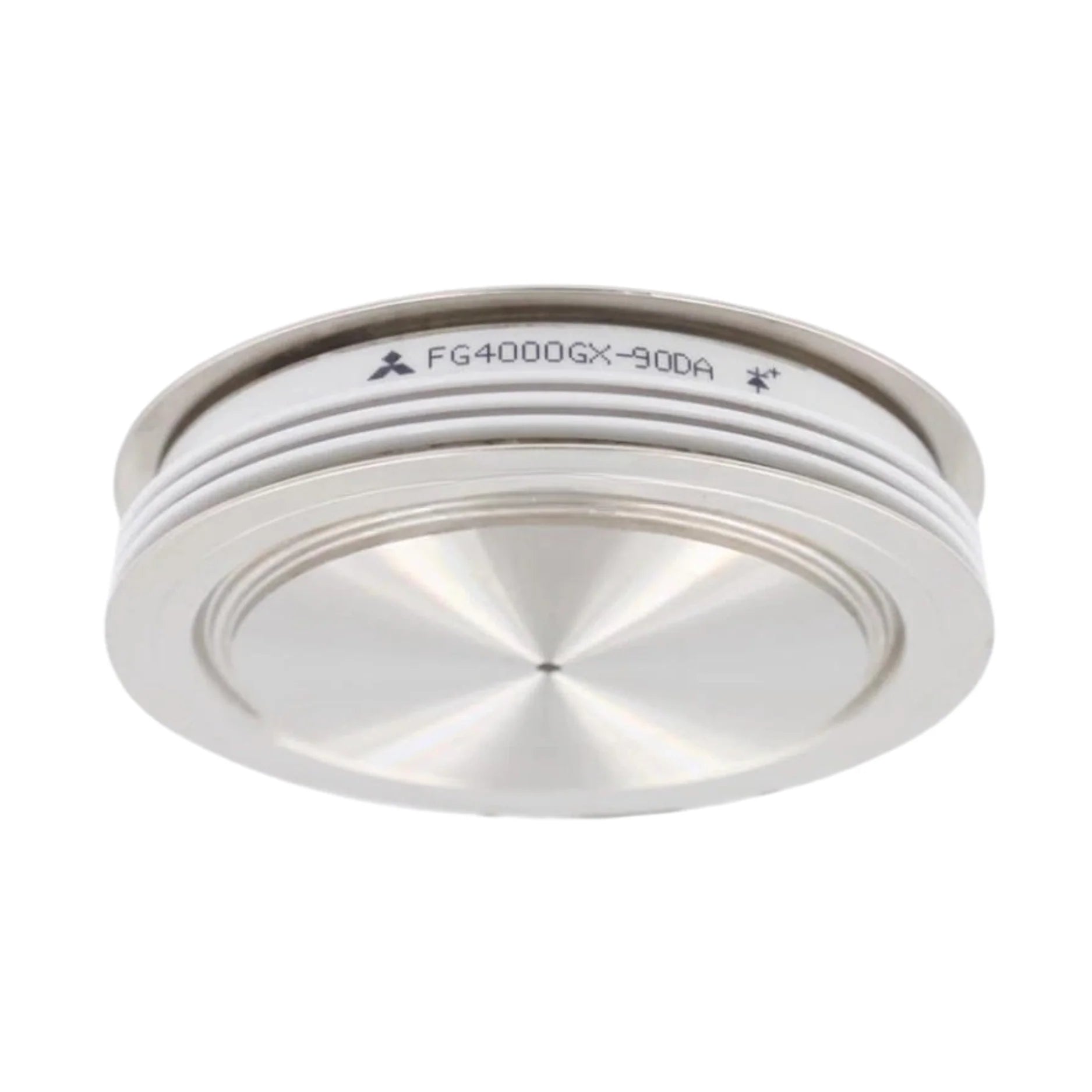

The Mitsubishi FG4000GX-90DA is a cutting-edge Gate Turn-Off (GTO) thyristor meticulously engineered for demanding industrial power control applications. This high-performance component boasts an impressive 4500V voltage rating and a substantial 4000A controllable on-state current, making it an ideal choice for high-power switching. Its anode-short, press-pack configuration is specifically optimized to deliver unparalleled reliability and efficiency in critical power electronics systems, including sophisticated inverters, robust DC choppers, and advanced induction heating systems. Built with Mitsubishi Electric's renowned expertise, the FG4000GX-90DA ensures stable and efficient operation even under the most rigorous conditions.

Key Features

• High Voltage Capability: 4500V rating for demanding high-voltage applications.
• Superior Current Handling: 4000A repetitive controllable current ensures powerful performance.
• Exceptional Surge Current: 25kA surge current rating for enhanced reliability and fault tolerance.
• Optimized Design: Anode-short configuration for fast switching and reduced losses.
• Robust Construction: Press-pack package guarantees mechanical integrity and efficient heat dissipation.
• Precise Control: Excellent gate control performance for accurate and stable operation.
• Extreme Durability: Engineered to withstand high thermal and electrical loads, ensuring long operational life.

Technical Specifications

• Model: FG4000GX-90DA
• Type: Gate Turn-Off Thyristor (GTO)
• Package: Press-pack type
• Configuration: Anode-short
• VDRM/VRRM: 4500V
• VRDC: 3600V
• ITQRM: 4000A
• IT(RMS): 1800A
• IT(AV): 1200A
• ITSM: 25,000A
• I²t: 2.6 × 10⁶ A²s
• di/dt: 500A/µs
• VFGM: 10V
• VRGM: 17V
• IFGM: 130A
• IRGM: 900mA
• PFGM: 520W
• PRGM: 33W
• PFG(AV): 130W
• PRG(AV): 300W
• Tj: –40°C to +125°C
• Tstg: –40°C to +150°C
• Mounting Force: 35–48kN
• Weight: 1220g

Applications

The Mitsubishi FG4000GX-90DA GTO thyristor is a versatile component, perfectly suited for a wide array of high-power industrial applications requiring precise and reliable switching. Its robust design and superior performance make it indispensable in:

• High-voltage inverters for motor control and renewable energy systems.
• DC choppers and converters in transportation and industrial power supplies.
• Induction heating systems demanding high-frequency and efficient power delivery.
• Electric traction drives for trains and other heavy-duty vehicles.
• Static power controllers for grid stabilization and industrial process control.

Why Choose This Model?

Opting for the Mitsubishi FG4000GX-90DA means choosing reliability, efficiency, and cutting-edge technology. Mitsubishi Electric is a global leader in power semiconductors, and this GTO thyristor is a testament to their commitment to quality and innovation. Its high-performance switching capabilities are specifically designed to optimize industrial-grade systems, ensuring maximum uptime and efficiency. The compact yet incredibly robust press-pack housing not only contributes to its longevity but also facilitates excellent thermal management. This model is engineered for continuous and peak power handling, providing a durable solution for your most critical power electronics needs. Invest in the FG4000GX-90DA for a solution that combines Mitsubishi’s trusted GTO technology with unparalleled industrial performance.

Order Now

The Mitsubishi FG4000GX-90DA GTO thyristor is currently in stock and available for immediate dispatch. We proudly offer worldwide shipping to ensure that our global customers can quickly receive this essential component for their industrial applications. Enhance your power systems with the reliability and performance of Mitsubishi Electric. Return to Mitsubishi GTO Thyristors. Explore more solutions in the GTO Thyristors main Collection.
