Mitsubishi FG4000BX-90DA

Overview

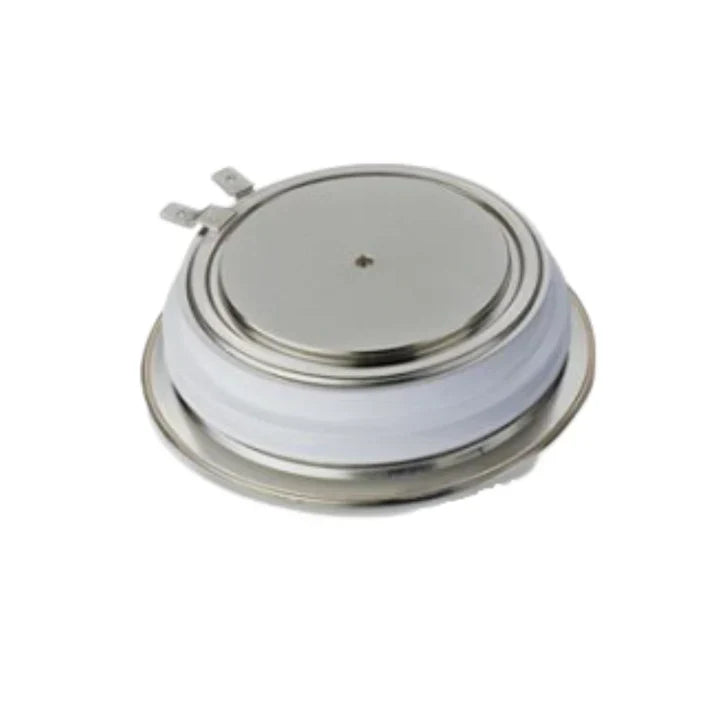

The Mitsubishi FG4000BX-90DA is a high-performance Gate Turn-Off (GTO) thyristor engineered to deliver unparalleled power control in the most demanding industrial applications. This robust component, from the renowned Mitsubishi Electric, stands out with its impressive ratings of 3000 A and 4500 V. Designed with an anode-short configuration and housed in a durable press-pack structure, the FG4000BX-90DA ensures exceptionally efficient and reliable switching operations. It is meticulously crafted to endure severe electrical and thermal stresses, making it the ideal choice for critical systems such as high-voltage inverters, DC choppers, and induction heating equipment where reliability and performance are paramount.

Key Features

• High Voltage Capacity: Rated at 4500 V for superior performance in high-power circuits.
• Exceptional Current Handling: Repetitive controllable current of 3000 A for robust operation.
• Anode-Short Configuration: Optimized design for enhanced switching characteristics.
• Press-Pack Structure: Provides mechanical robustness and excellent thermal conductivity for demanding environments.
• Impressive Surge Current Capability: Withstands surges up to 20 kA, ensuring system resilience.
• Precise Gate Control: Offers excellent characteristics for accurate and efficient GTO operation.
• Wide Operating Temperature: Junction temperature range from –40 °C to +125 °C for broad applicability.

Technical Specifications

• Model: FG4000BX-90DA
• Type: Gate Turn-Off Thyristor (GTO)
• Package: Press-pack type
• Configuration: Anode-short
• VDRM/VRRM: 4500 V
• VRDC: 2500 V
• ITQRM: 3000 A
• IT(RMS): 1600 A
• IT(AV): 1000 A
• ITSM: 20,000 A
• I²t: 1.7 × 10⁶ A²s
• di/dt: 500 A/µs
• VFGM: 10 V
• VRGM: 19 V
• IFGM: 130 A
• IRGM: 1100 mA
• PFGM: 520 W
• PRGM: 33 W
• PFG(AV): 130 W
• PRG(AV): 300 W
• Tj: –40 °C to +125 °C
• Tstg: –40 °C to +150 °C
• Mounting Force: 32–40 kN
• Weight: 1600 g

Applications

• High-Voltage Inverters: Essential for reliable energy conversion in large-scale systems.
• DC Choppers and Converters: Provides precise control in direct current power applications.
• Induction Heating Systems: Ideal for demanding industrial heating processes requiring high power and efficiency.
• Electric Traction Systems: Critical component for motor control in trains and other electric vehicles.
• Pulse Power Supplies: Ensures stable and powerful energy delivery in specialized applications.

Why Choose This Model?

The Mitsubishi FG4000BX-90DA GTO thyristor stands as a testament to Mitsubishi Electric's commitment to excellence in power semiconductor technology. Choosing this model means investing in a solution that offers unmatched performance, reliability, and longevity. Its exceptional thermal stability not only enhances operational safety but also extends the component's lifespan, even under continuous heavy loads. The robust press-pack format is specifically designed for integration into challenging industrial environments, providing superior mechanical integrity and effective heat dissipation. When you select the FG4000BX-90DA, you are leveraging Mitsubishi's renowned quality in high-current GTO technology, ensuring precise and reliable switching in the most critical high-power industrial systems. This GTO is not just a component; it is a foundation for stable and efficient power management.

Order Now

Elevate your power control systems with the Mitsubishi FG4000BX-90DA GTO thyristor. This high-performance component is readily available and poised for global delivery to meet your project timelines and operational demands. Contact us today to secure your order and experience the superior quality and reliability that only Mitsubishi Electric can provide.
