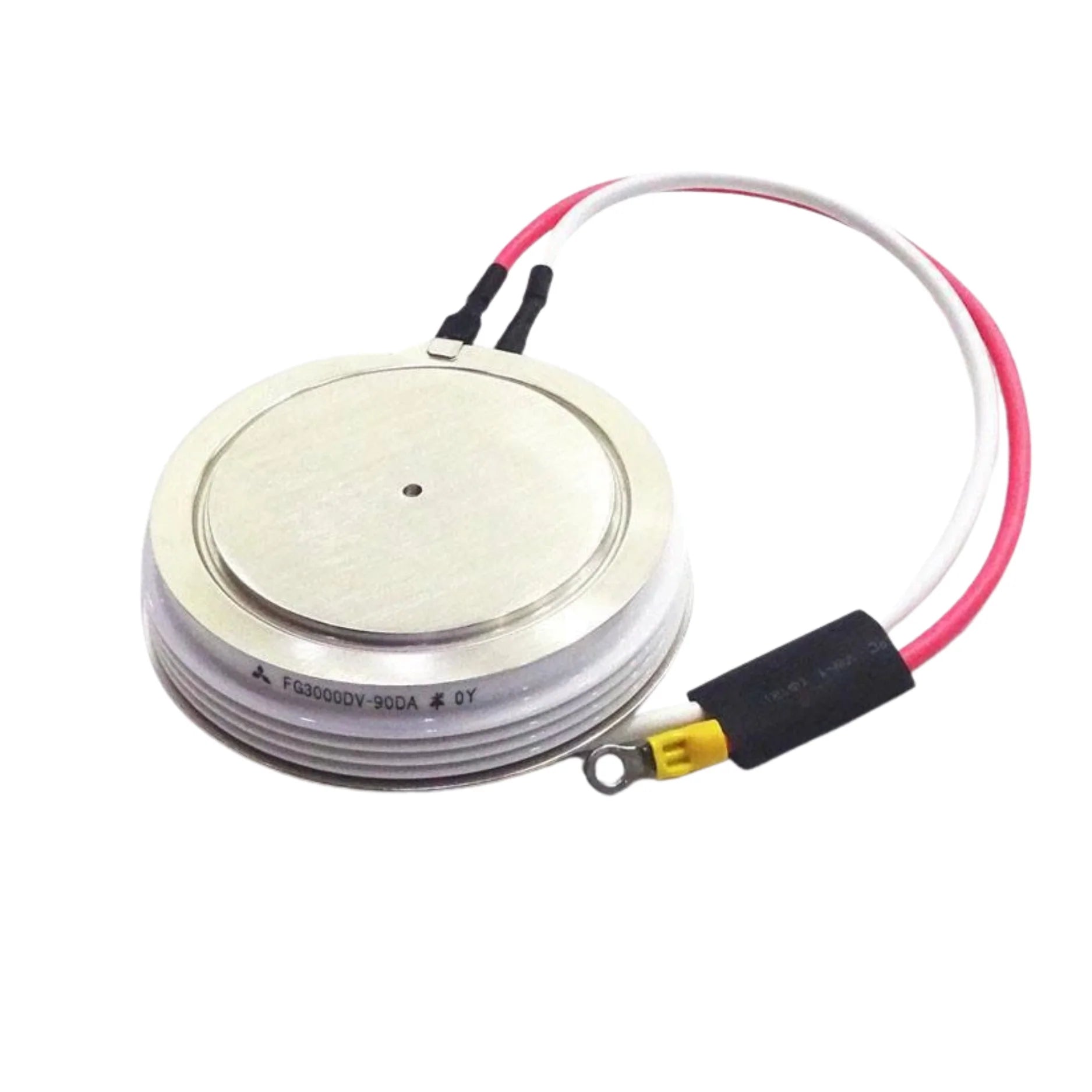

Mitsubishi FG3000DV-90DA

Overview

Elevate your high-power switching applications with the Mitsubishi FG3000DV-90DA, a state-of-the-art Gate Turn-Off (GTO) thyristor. Engineered for unparalleled performance and reliability, this discrete component boasts an impressive 3000 A continuous current rating and a substantial 4500 V voltage rating. Its innovative anode-short structure enables precise and rapid control, making it an ideal choice for the most demanding high-voltage and high-current environments. From robust industrial converters to critical railway traction systems and advanced motor drives, the FG3000DV-90DA delivers consistent, dependable power management, ensuring optimal operational efficiency and system longevity. This GTO thyristor represents Mitsubishi Electric's commitment to cutting-edge power semiconductor technology, providing a foundation for robust and efficient electronic systems.

Key Features

• High Voltage Capability: Rated at 4500 V, suitable for demanding high-voltage industrial applications.
• High Current Handling: Designed for continuous operation at 3000 A, accommodating significant power loads.
• Anode-Short Structure: Facilitates enhanced switching control and improved performance characteristics.
• Discrete GTO Design: Offers flexibility for custom integration into a wide array of power electronic circuits.
• Optimized Efficiency: Features low on-state losses and efficient switching characteristics, minimizing energy dissipation.
• Superior Surge Current Tolerance: Built to withstand high surge currents, enhancing reliability and robustness in challenging conditions.
• High-Power Switching: Specifically engineered for applications requiring precise and powerful switching capabilities.
• Mitsubishi Electric Quality: Benefits from Mitsubishi Electric's renowned manufacturing excellence and stringent quality control.

Technical Specifications

• Part Number: FG3000DV-90DA
• Type: Discrete GTO Thyristor
• Configuration: Anode-short
• Continuous Current (IT): 3000 A
• Repetitive Peak Off-State Voltage (VDRM/VRRM): 4500 V
• Turn-Off Capability: Gate-controlled
• Application Class: High-voltage power switching
• Package Type: Press-pack or stud-type (design dependent)
• Cooling Requirement: External heatsink required for optimal thermal management.

Applications

The versatility and robust performance of the Mitsubishi FG3000DV-90DA make it an indispensable component across a diverse range of high-power applications, including:

• Railway Traction Inverters: Providing reliable and efficient power conversion for electric locomotives and rail systems.
• Medium-Voltage Motor Drives: Enabling precise control and operation of large industrial motors.
• DC Choppers: Essential for power regulation and conversion in various industrial and automotive systems.
• Static VAR Compensators (SVCs): Improving power factor and voltage stability in electrical grids.
• High-Power Industrial Converters: Driving critical processes in heavy industry with efficiency and control.
• Renewable Energy Systems: Contributing to the efficient conversion and management of power in solar and wind installations.

Why Choose This Model?

Choosing the Mitsubishi FG3000DV-90DA GTO thyristor means investing in proven performance and innovative technology. This model stands out due to its:

• Unmatched Reliability: Engineered to deliver consistent and predictable performance even under the most extreme electrical loads and operating conditions.
• Mitsubishi Electric's Heritage: Backed by the global reputation of Mitsubishi Electric, a leader in GTO technology, ensuring superior design, manufacturing, and support.
• Flexible System Integration: Its discrete format allows for greater design flexibility, enabling engineers to custom-tailor power solutions to specific application requirements.
• Optimized Stability: Demonstrates excellent thermal and electrical stability, crucial for long-term operational integrity and reduced maintenance.
• Future-Proof Technology: Incorporates advanced features that ensure its relevance and effectiveness in evolving high-power electronic landscapes.
• Global Availability: Ready for deployment across the world, supported by Mitsubishi Electric's extensive distribution network.

Order Now

Seize the opportunity to enhance your power electronics systems. The Mitsubishi FG3000DV-90DA GTO thyristor is currently in stock and readily available for global shipping, ensuring timely delivery for your projects. For additional solutions in power management, please return to Mitsubishi GTO Thyristors or explore more options in our GTO Thyristors main Collection. Partner with us for reliable components that power progress.
