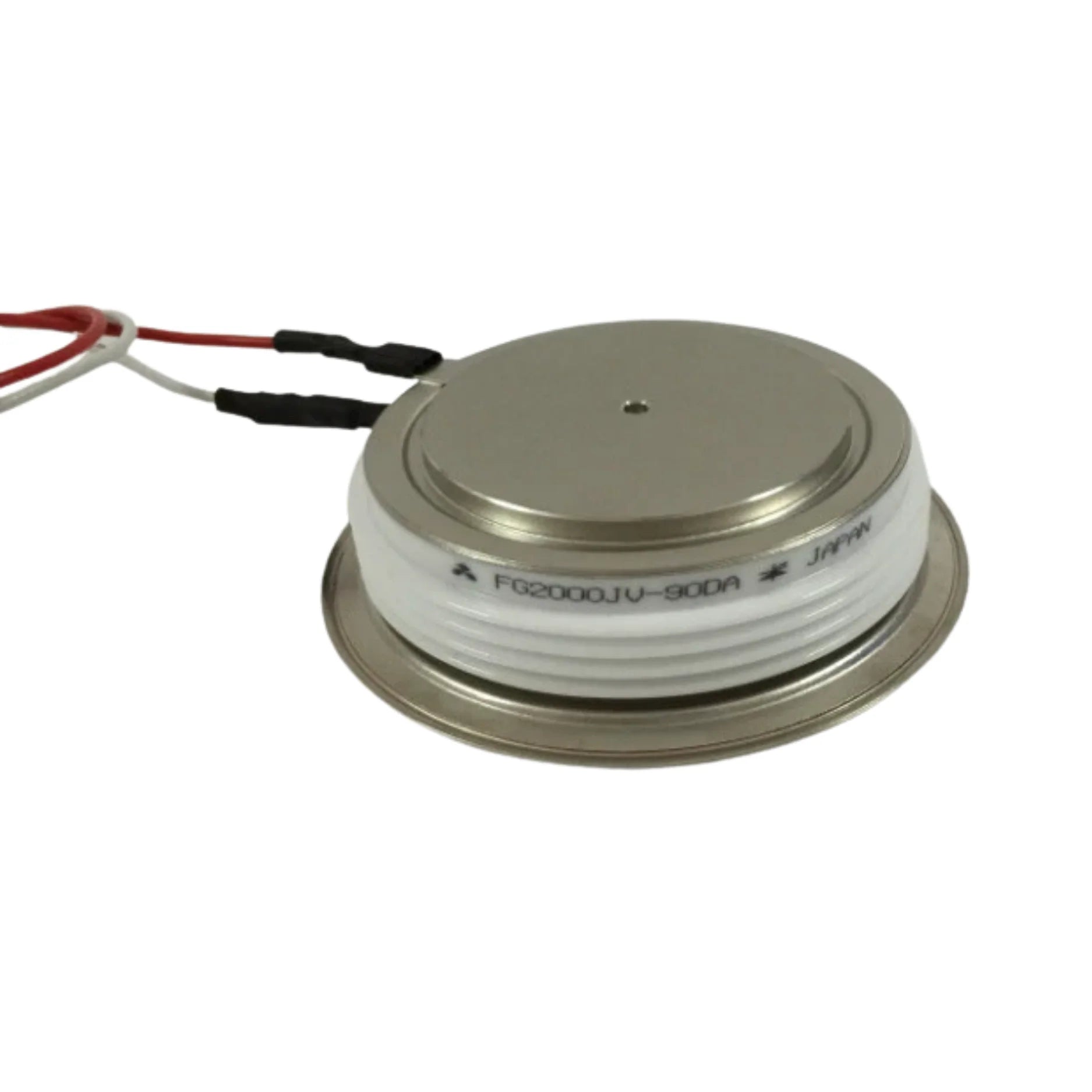

Mitsubishi FG2000JV-90DA

Overview

The Mitsubishi FG2000JV-90DA stands as a premier Gate Turn-Off (GTO) thyristor, meticulously engineered for the rigorous demands of modern high-power electronics. Boasting an impressive 4500V voltage rating and a substantial 2000A controllable current, this device is a cornerstone for applications requiring exceptional switching performance and unwavering reliability. Its advanced press pack design ensures superior thermal stability and robust operation in the most challenging industrial environments. Ideal for crucial power management systems, the FG2000JV-90DA excels in optimizing efficiency and performance in a wide array of high-frequency power conversion scenarios.

Key Features

• High Repetitive Peak Voltage: 4500V for robust power handling.
• Exceptional Controllable On-State Current: 2000A for superior power delivery.
• Anode-Short Configuration: Enhances switching speed and efficiency.
• Fast Switching with Low Losses: Optimizes energy efficiency and reduces heat generation.
• Gate Turn-Off (GTO) Design: Enables self-commutated power stages, simplifying circuit design.
• Press Pack Package: Guarantees high thermal stability and extended operational lifespan.
• Versatile Compatibility: Seamlessly integrates with inverters, converters, and high-frequency power supplies.

Technical Specifications

• Model: FG2000JV-90DA
• Type: Gate Turn-Off Thyristor (GTO)
• VDRM/VRRM: 4500V
• IT(AV): 600A
• IRMS: 940A
• ITQRM: 2000A
• ITSM: 13,000A
• Turn-On Time (tgt): 30µs
• Gate Trigger Voltage (VGT): 2.5V
• Gate Trigger Current (IGT): 2.5A
• Peak Gate Turn-Off Current (IGQM): 1000A
• Thermal Resistance: 0.017°C/W
• Mounting Force: 18–24kN
• Package Type: Press Pack
• Weight: 760g
• Operating Temperature: –40°C to +125°C

Applications

The Mitsubishi FG2000JV-90DA is engineered for leadership across a spectrum of critical power applications, ensuring optimal performance and reliability:

• High-Power Inverters: Essential for grid tie, motor control, and renewable energy systems.
• D.C. Choppers: Provides precise control in DC motor drives and power supplies.
• Induction Heaters: Delivers efficient energy transfer for industrial heating processes.
• DC/DC Converters: Optimizes power conversion in various electronic systems.
• Electric Traction Systems: Crucial for the efficient operation of electric vehicles and railway systems.

Why Choose This Model?

The FG2000JV-90DA embodies Mitsubishi Electric's commitment to excellence, offering unparalleled advantages for your high-power applications:

• Unrivaled Performance: Specifically designed for critical power switching at elevated current and voltage levels, ensuring stable and efficient operation.
• Advanced Control: Perfectly suited for self-commutated systems with integrated gate turn-off control, streamlining system design and improving responsiveness.
• Exceptional Durability: Constructed to withstand the rigors of frequent thermal and electrical cycling, guaranteeing a long operational lifespan and reducing maintenance needs.
• Proven Heritage: Benefits from Mitsubishi Electric's extensive legacy in GTO technology, ensuring a product backed by decades of innovation and reliability. This model represents a blend of cutting-edge engineering and field-tested performance, making it a wise investment for demanding industrial and commercial applications.

Order Now

Elevate your power electronics systems with the Mitsubishi FG2000JV-90DA GTO thyristor. This high-performance component is readily available and ships worldwide, ensuring you can access premium Mitsubishi Electric technology wherever you are. For further exploration, please return to our comprehensive selection of Mitsubishi GTO Thyristors or delve deeper into our GTO Thyristors main Collection for more innovative solutions.
