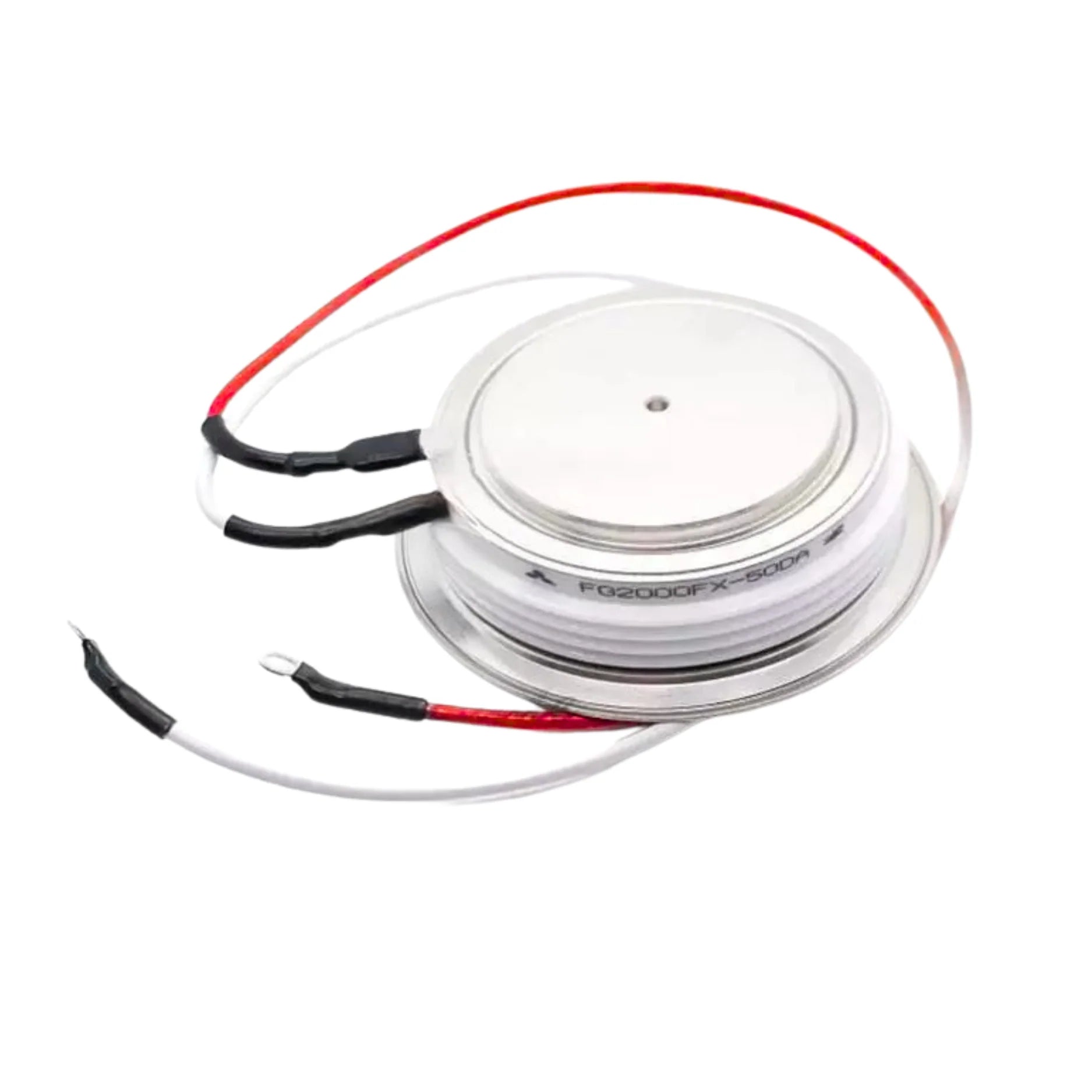

Mitsubishi FG2000FX-50DA

Overview

The Mitsubishi FG2000FX-50DA is a high-performance Gate Turn-Off (GTO) thyristor meticulously engineered for demanding power electronics applications. This robust component boasts impressive ratings of 2500V and 1050A, making it an ideal choice for sophisticated industrial systems requiring precise and reliable power control. Its innovative anode-short configuration and press pack design contribute to superior electrical characteristics, including rapid switching speeds, exceptional surge current capabilities, and optimized thermal management. This GTO thyristor is a cornerstone for advanced power conversion, ensuring efficient and stable operation in critical infrastructure.

Key Features

• Repetitive Peak Off-State Voltage: 2500V - Ensures resilience in high-voltage environments.
• Average On-State Current: 1050A - Provides substantial current handling for heavy-duty applications.
• Surge Current Rating: 16kA - Protects against transient overcurrents, enhancing system longevity.
• Anode-Short Configuration: Optimizes turn-off characteristics and reduces switching losses.
• Press Pack Package: Offers superior thermal dissipation and mechanical robustness for harsh industrial settings.
• Excellent dIT/dt: 1000A/µs - Facilitates fast and efficient current changes.
• Turn-On Time: 30µs - Enables rapid activation for dynamic power control.
• Gate Turn-Off Current: 1000A - Allows for effective and controlled deactivation.
• Thermal Resistance: 0.017°C/W - Minimizes heat accumulation, ensuring stable operation.
• Mounting Force: 18–24kN - Guarantees secure and reliable installation.

Technical Specifications

• Model: FG2000FX-50DA
• Type: Gate Turn-Off Thyristor (GTO)
• Package: Press Pack (Anode-Short Type)
• VDRM/VRRM: 2500V
• VRDC: 2000V
• IT(AV): 1050A
• ITQRM: 2200A
• IT(RMS): 1650A
• ITSM: 16,000A
• I²t: 10.5 × 10⁵ A²s
• VGT: 2.4V
• IGT: 610mA
• IGQM: 1000A
• dI/dt: 1000A/µs
• tgt: 30µs
• Thermal Resistance (Rth j-f): 0.017°C/W
• Mounting Force: 18–24kN
• Weight: 760g

Gate Ratings

• VFGM: 100V
• VRGM: 17V
• IFGM: 650mA
• IRGM: 280mA
• PFGM: 50W
• PRGM: 18W
• PFG(AV): 50W
• PRG(AV): 1.5W

Thermal & Environmental

• Junction Temperature (Tj): –40°C to +125°C
• Storage Temperature (Tstg): –40°C to +150°C

Applications

The Mitsubishi FG2000FX-50DA GTO thyristor is a versatile component, indispensable in a variety of high-power applications where efficient and reliable switching is paramount. Its robust design and superior electrical characteristics make it perfectly suited for:

• Industrial Inverters: Enabling precise motor control and energy conversion in heavy machinery.
• D.C. Choppers: Essential for regulating DC power in traction systems and industrial drives.
• Induction Heating Systems: Providing the high-frequency switching necessary for efficient heating processes.
• DC/DC Converters: Optimizing power flow and voltage regulation in diverse power supply architectures.
• High-Power Switching Systems: Serving as a critical component in various demanding power control applications.

Why Choose This Model?

Opting for the Mitsubishi FG2000FX-50DA GTO thyristor means investing in unparalleled performance, reliability, and engineering excellence. This model stands out due to:

• High Surge and Switching Capacity: Designed to withstand significant power fluctuations and operate efficiently at high switching frequencies, ensuring stable long-term performance.
• Rugged Press Pack Structure: The robust construction provides superior mechanical integrity and enhanced thermal management, making it resilient in challenging industrial environments.
• Mitsubishi Reliability for Industrial Use: Mitsubishi Electric is a globally recognized leader in power electronics, synonymous with quality, innovation, and dependable solutions that meet stringent industrial standards.
• Ideal for Compact, High-Efficiency Designs: Its optimized design allows for the creation of smaller and more efficient power conversion systems, reducing overall footprint and energy consumption.
• Optimized Performance for Critical Applications: Experience consistent and predictable performance, even under the most rigorous operating conditions, safeguarding your valuable equipment and processes.
