Mitsubishi QD77MS4

Overview

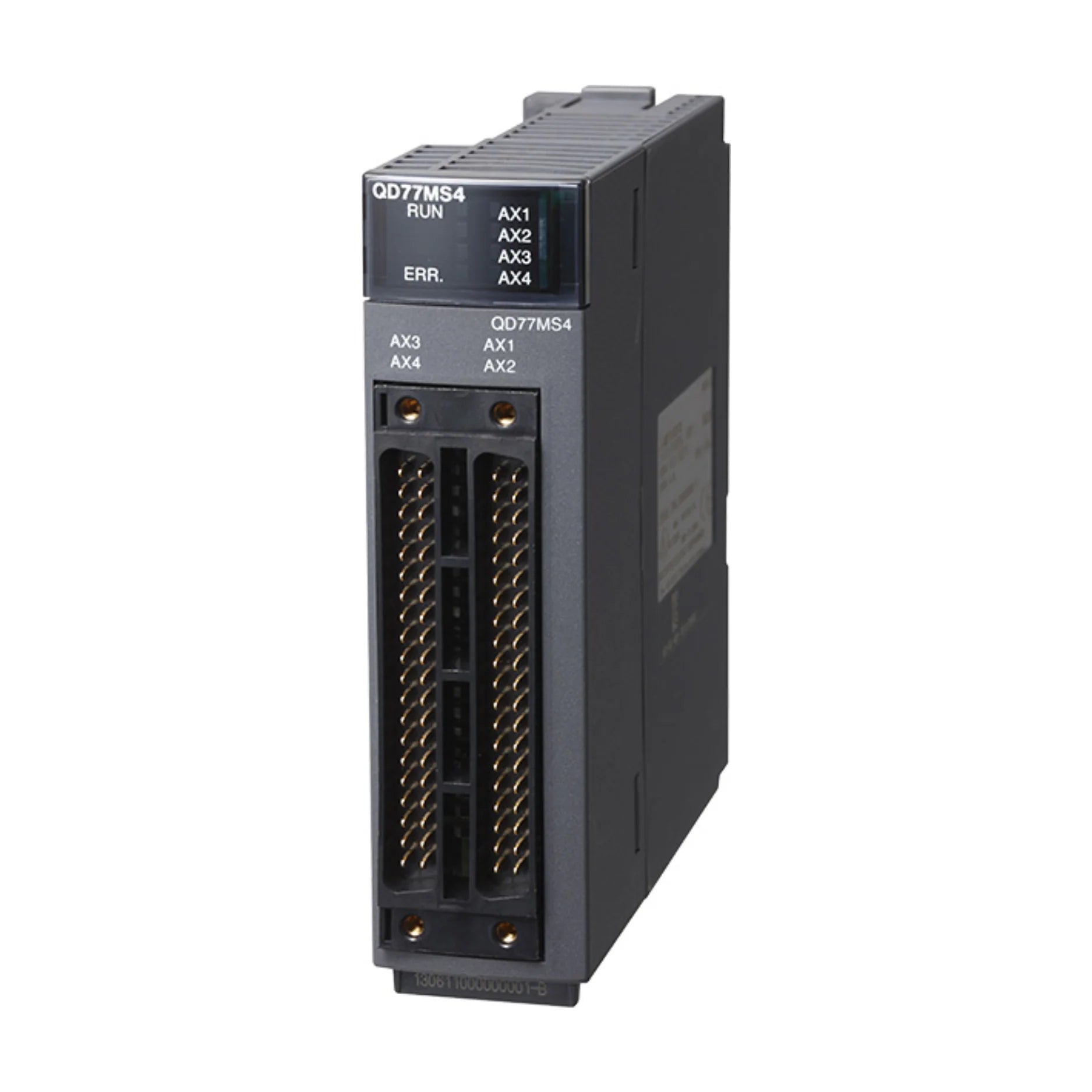

The Mitsubishi Electric QD77MS4 is a cutting-edge 4-axis motion control module engineered for the powerful Q Series PLC platform. It provides sophisticated, high-speed, and synchronized control of servo motors through the robust SSCNET III fiber-optic network. This module represents an ideal solution for a diverse range of industrial applications demanding precise positioning, intricate interpolation capabilities, and rapid motion sequencing across multiple axes. Elevate your automation systems with the QD77MS4's exceptional performance and reliability, designed to optimize efficiency and accuracy in manufacturing processes.

Key Features

• Multi-Axis Control: Manages up to 4 independent servo axes with exceptional precision.
• SSCNET III Connectivity: Utilizes the high-performance SSCNET III fiber-optic servo network for ultra-fast and reliable communication, ensuring real-time control and synchronization without compromise.
• Superior Positioning: Delivers high-speed and high-precision positioning for critical applications, minimizing error and maximizing throughput.
• Advanced Interpolation: Supports complex motion paths including linear, circular, and helical interpolation, enabling sophisticated machine movements.
• Electronic Gearing & Camming: Integrates electronic gear and cam functionalities for flexible and synchronized motion control, adapting to varying application requirements.
• Dynamic Parameter Adjustment: Allows real-time adjustment of motion parameters, providing flexibility and responsiveness during operation.
• Integrated Software Support: Seamlessly integrates with GX Works2/GX Developer for intuitive programming, configuration, and diagnostics, streamlining development and maintenance.
• Built-in Diagnostics: Features comprehensive built-in diagnostics and error monitoring for quick identification and resolution of operational issues, thus reducing downtime.
• Q Series Compatibility: Designed for standard DIN rail Q Series base unit mounting, ensuring easy installation and compatibility with existing Mitsubishi Electric systems.

Technical Specifications

• Part Number: QD77MS4
• Manufacturer: Mitsubishi Electric
• Series: MELSEC Q Series
• Number of Axes: 4
• Communication: SSCNET III (fiber optic)
• Positioning Mode: Absolute/incremental
• Interpolation: 2-axis linear/circular, 3-axis helical
• Control Frequency: 0.88 ms for 4 axes
• Power Supply: Supplied by base unit
• Mounting: Rack-mount in Q Series slot
• Operating Temperature: 0 °C to +55 °C
• Certifications: CE, UL, cUL

Applications

• Multi-Axis CNC Machines: Provides precise and synchronized control for complex machining operations, ensuring high-quality output.
• Robotics and Pick-and-Place Systems: Enhances the speed and accuracy of robotic movements, critical for efficient automation tasks.
• Automated Assembly Lines: Facilitates high-speed and precise component handling, contributing to streamlined production processes.
• Precision Motion in Packaging Equipment: Optimizes packaging operations requiring delicate and accurate product manipulation.
• Synchronization of Conveyor and Material Handling: Ensures seamless and coordinated movement across conveyor systems and various material handling applications.

Why Choose This Model?

The Mitsubishi Electric QD77MS4 stands out as a superior choice for advanced motion control due to its exceptional features and proven reliability. Its ability to deliver fast and accurate servo synchronization, powered by the robust SSCNET III fiber-optic network, ensures optimal performance in demanding industrial environments. The module's advanced interpolation and versatile motion functions provide the flexibility needed to handle complex automation challenges, from intricate CNC operations to synchronized robotics. Furthermore, the QD77MS4 is designed for scalability, allowing it to seamlessly integrate into and grow with your evolving motion control systems. Its deep compatibility and seamless integration with Mitsubishi Electric Q PLCs ensure a cohesive and efficient automation infrastructure, minimizing setup time and maximizing operational uptime. Invest in the QD77MS4 for a future-proof motion control solution that drives productivity and precision.

Order Now

The Mitsubishi Electric QD77MS4 4-axis motion control module is readily available to enhance your industrial automation systems. With its global shipping options, you can acquire this high-performance module no matter where your operations are located. Elevate your machinery's precision, speed, and reliability by integrating the QD77MS4 today. Contact us now to place your order and secure this essential component for your advanced motion control needs.
