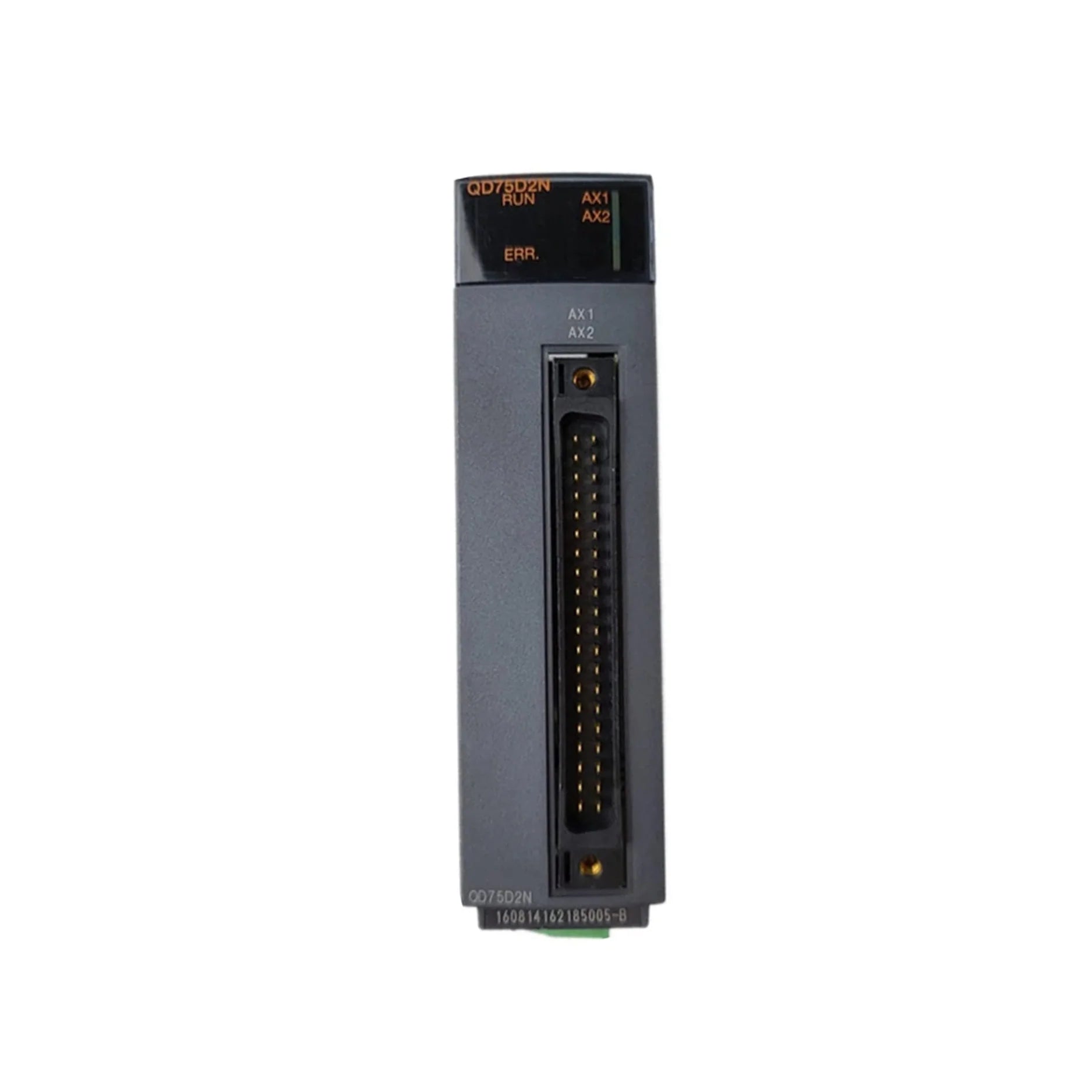

Mitsubishi QD75D2N

Overview

The Mitsubishi Electric QD75D2N is a high-performance, 2-axis positioning module engineered to deliver unparalleled precision in motion control for both servo and stepper motors. As a key component within the acclaimed MELSEC-Q series, this module provides robust pulse train outputs, making it the ideal solution for sophisticated applications demanding accurate and repeatable motion in compact automation systems. Its advanced capabilities ensure seamless integration and superior operational efficiency across various industrial environments.

Key Features

• Precision 2-Axis Pulse Output Control: Offers dedicated control for two independent axes, ensuring synchronized and accurate movement.
• Linear and Circular Interpolation Support: Enables smooth and complex motion paths, crucial for intricate manufacturing processes.
• High-Speed Positioning: Achieves rapid and precise positioning through reliable pulse train outputs, optimizing cycle times.
• Absolute and Relative Positioning Modes: Provides flexibility in defining target positions, accommodating diverse application requirements.
• Advanced Motion Profiles and Speed Control: Allows for customized acceleration, deceleration, and velocity profiles, enhancing system performance.
• Seamless MELSEC-Q Series PLC Compatibility: Designed for effortless integration with Mitsubishi Electric MELSEC-Q series PLCs, simplifying system architecture and programming.

Technical Specifications

• Mitsubishi Electric Code: QD75D2N
• Series: MELSEC-Q
• Number of Control Axes: 2
• Control Method: Pulse output (line driver)
• Maximum Output Frequency: 2 Mpps (Mega Pulses Per Second)
• Power Supply: 5 VDC (supplied from the base unit)
• Positioning Modes: Absolute, Relative, Interpolation
• Compatible Motors: Servo motors, Stepper motors
• Dimensions (W x H x D): Approximately 27.4 x 98 x 90 mm
• Mounting: Designed for installation in a standard Q-series base unit slot

Applications

The Mitsubishi Electric QD75D2N module's versatility and precision make it indispensable across a wide array of industrial applications:

• CNC Machinery: Providing accurate tool positioning and movement for milling, turning, and grinding operations.
• Robotic Arms: Enabling fluid and precise control for multi-axis robotic movements in assembly, welding, and material handling.
• Pick-and-Place Systems: Ensuring high-speed and accurate component placement in automated assembly lines.
• Packaging and Labeling Lines: Delivering precise control for synchronized movement of products and labeling mechanisms.
• Semiconductor and Electronic Assembly: Essential for highly delicate and precise manipulation in the manufacturing of microelectronics.

Why Choose This Model?

Opting for the Mitsubishi Electric QD75D2N brings a multitude of advantages to your automation projects. This module stands out due to its ability to deliver exceptionally high-speed and precise motion control, critical for optimizing production efficiency and product quality. Its seamless integration with the robust Mitsubishi Electric Q-series PLCs simplifies system design and reduces development time, offering a comprehensive and reliable automation solution. Furthermore, the QD75D2N provides flexible motion programming options and enhanced diagnostic capabilities, allowing for greater control and easier troubleshooting. Its compact footprint belies the powerful functionality it offers, making it ideal for space-constrained applications without compromising performance. Above all, you benefit from the proven reliability and extensive support that come with Mitsubishi Electric's long-standing reputation in industrial automation.

Order Now

Elevate your automation capabilities with the Mitsubishi Electric QD75D2N 2-axis positioning module. Experience the synergy of high-speed performance and unparalleled precision, meticulously engineered to fulfill the most demanding requirements of your industrial applications. Secure this essential component today to optimize your motion control systems and achieve new levels of operational excellence.
