Mitsubishi QD62E

Overview

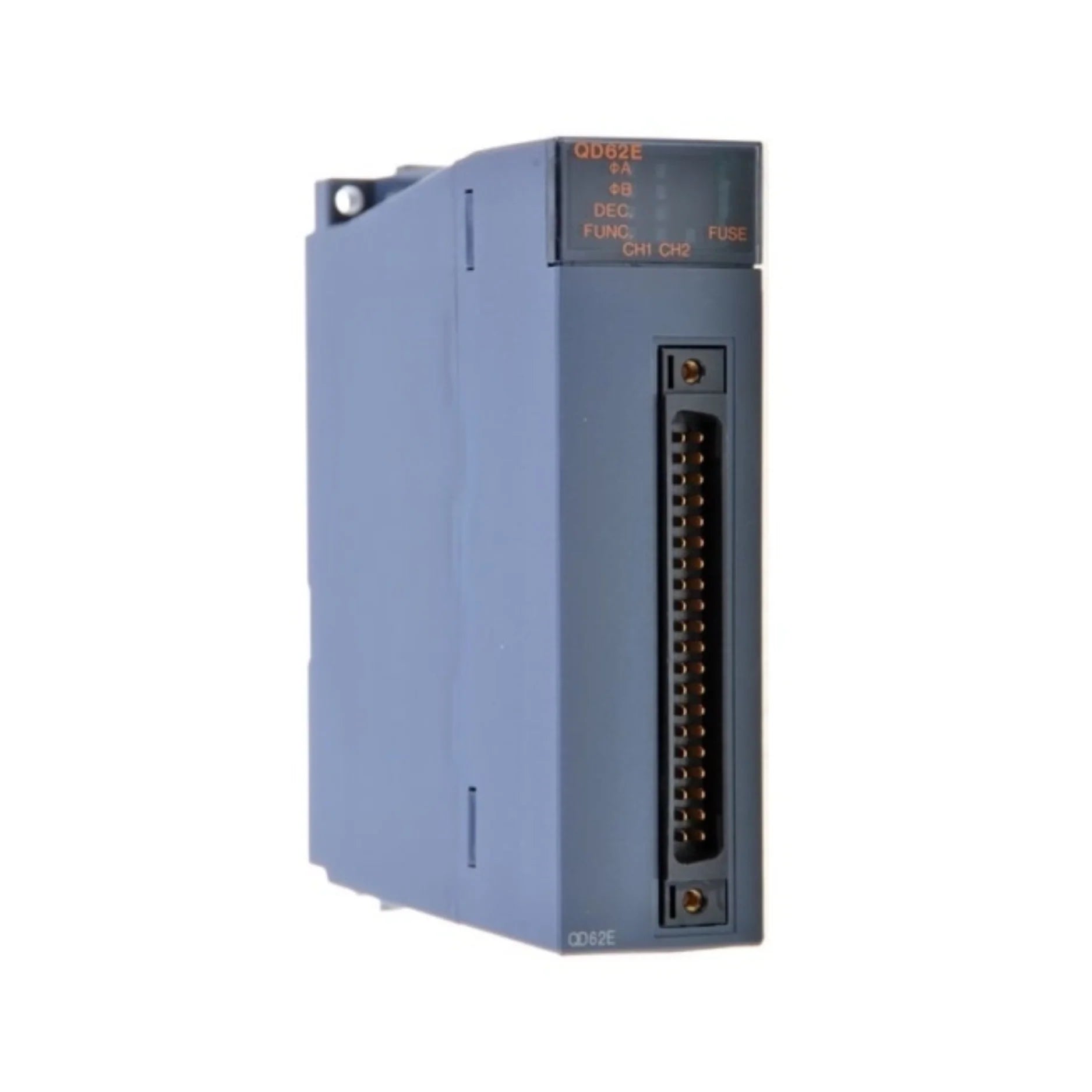

The Mitsubishi Electric QD62E is a state-of-the-art 2-channel high-speed counter module, an integral component of the renowned MELSEC-Q Series. Engineered for superior precision, this module is specifically designed for critical applications requiring accurate pulse counting and intricate position detection within advanced automation systems. With its robust capability to support input frequencies up to an impressive 200 kHz, coupled with flexible voltage ranges including 5 V, 12 V, and 24 V, the QD62E stands out as the optimal choice for industrial environments demanding real-time, highly accurate signal processing. Its compact design and DIN-rail mountable form factor ensure seamless integration into existing Q-series PLC setups, making it a versatile and indispensable asset for modern industrial control.

Key Features

• Dual-Channel High-Speed Counting: Offers two independent channels for concurrent pulse processing.
• Exceptional Input Frequency: Capable of handling input frequencies up to 200 kHz for rapid data acquisition.
• Versatile Voltage Support: Compatible with 5 V, 12 V, and 24 V DC inputs, enhancing application flexibility.
• Transistor (Source-Type) Outputs: Provides reliable and efficient output control for various devices.
• Flexible Input Modes: Supports both single-phase and A/B-phase input configurations for diverse sensor compatibility.
• High-Resolution Counter: Features a 32-bit counter resolution for precise and detailed measurements.
• Space-Saving Design: Compact and lightweight module, optimized for efficient panel space utilization.
• Easy Installation: Designed for convenient DIN-rail mounting, simplifying setup and integration.

Technical Specifications

• Catalog Number: QD62E
• Series: MELSEC-Q
• Channels: 2
• Input Voltage: 5 V / 12 V / 24 V DC
• Input Frequency: Up to 200 kHz
• Output Type: Source transistor
• Output Voltage: 12–24 V DC
• Max Output Current: 0.1 A per point
• Counter Resolution: 32-bit
• Power Consumption: 0.33 A at 5 V DC
• Dimensions: 98 × 27.4 × 90 mm
• Weight: Approximately 110 g
• Mounting: DIN rail
• Certifications: CE, UL

Applications

The Mitsubishi Electric QD62E is engineered to excel in a broad spectrum of industrial applications where high-speed, accurate counting and positioning are paramount. Its versatility makes it an invaluable component in:

• Encoder Feedback and Pulse Counting: Essential for precise monitoring of rotational and linear motion.
• Position Control in Automated Equipment: Ensures accurate placement and movement in machinery and robotics.
• High-Speed Event Tracking in Manufacturing: Critical for monitoring fast-paced production lines and processes.
• Robotic Motion Systems: Provides the necessary precision for complex robotic movements and repetitive tasks.
• Material Handling and Packaging Lines: Optimizes efficiency and accuracy in sorting, transferring, and packaging operations.

Why Choose This Model?

The Mitsubishi Electric QD62E high-speed counter module offers a compelling combination of performance, reliability, and integration advantages:

• Unmatched Accuracy: Delivers precise high-speed counting up to 200 kHz, crucial for demanding control applications.
• Broad Compatibility: Seamlessly integrates with a wide range of industrial sensors, enhancing its adaptability.
• Integrated Control: Features integrated output control for real-time responsiveness, improving system efficiency.
• Effortless Configuration: Designed for easy setup and configuration within existing MELSEC-Q systems, minimizing downtime.
• Mitsubishi Electric Assurance: Benefits from Mitsubishi Electric's renowned quality and engineering excellence, ensuring long-term reliability in a compact and durable form factor.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi Electric QD62E 2-channel high-speed counter module. This premium module is readily available and ships worldwide, bringing Mitsubishi Electric's hallmark of quality and precision directly to your operations. Enhance your system's performance and reliability by incorporating the advanced features of the QD62E. Contact us today to place your order or to learn more about how this exceptional module can meet your specific industrial requirements.
