Mitsubishi Q68ADI

Overview

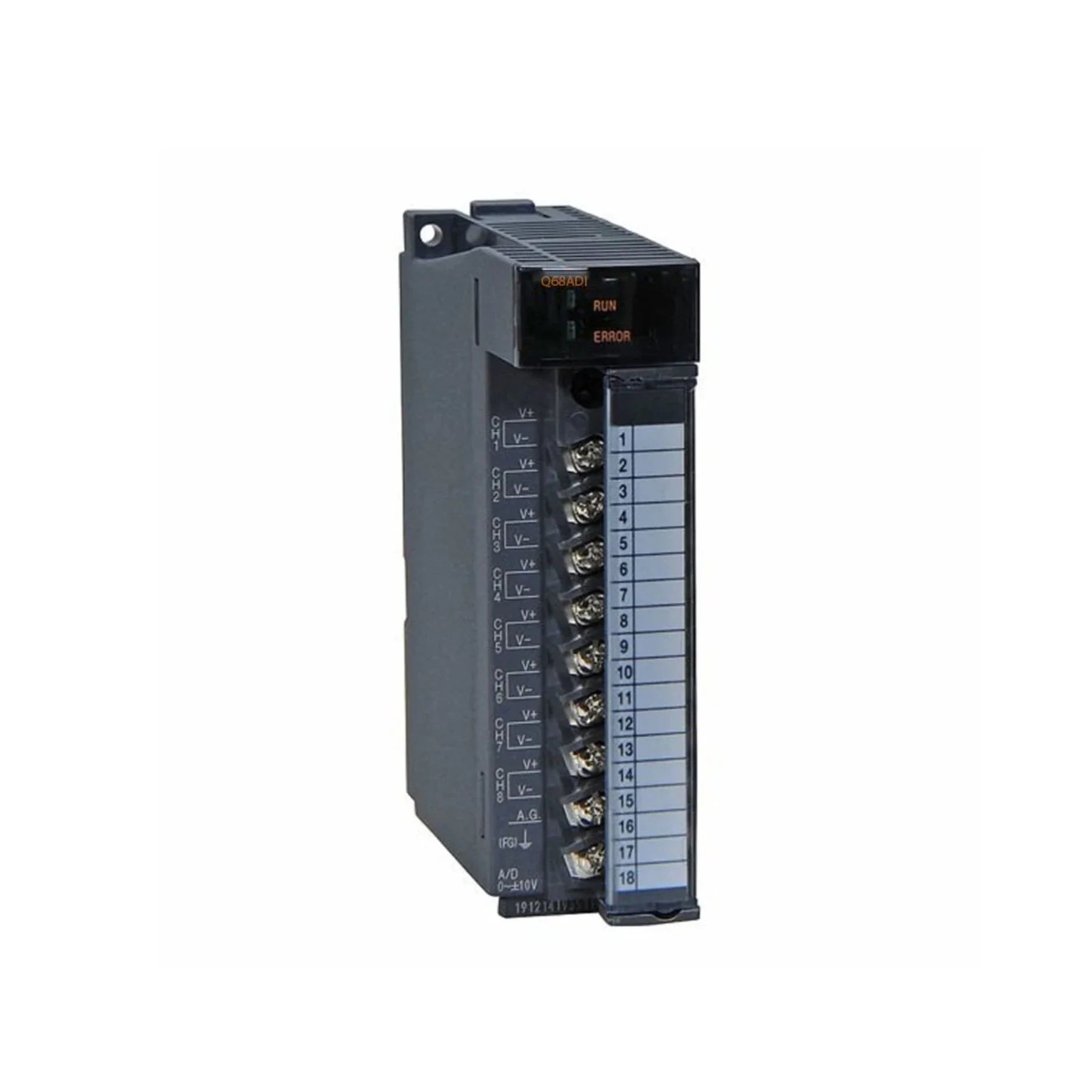

The Mitsubishi Electric Q68ADI is a state-of-the-art 16-bit analog input module engineered for seamless integration with MELSEC-Q Series PLCs. This high-precision module boasts 8 differential input channels, setting a new standard for accurate analog signal acquisition in diverse industrial applications. Designed to meticulously measure voltage or current signals, the Q68ADI is the ideal solution for demanding environments where optimal data integrity and control are paramount. Its robust design and superior performance ensure reliable operation, making it a cornerstone for advanced automation systems.

Key Features

• Precision Analog Inputs: 8 differential channels for enhanced noise immunity and signal accuracy
• High-Resolution Conversion: Industry-leading 16-bit A/D conversion for granular data capture
• Versatile Signal Support: User-selectable input signal types for both voltage (±10V, 0–10V, 1–5V) and current (0–20mA, 4–20mA) applications
• Rapid Data Acquisition: High-speed conversion capabilities, supporting real-time process control and dynamic system responses
• Integrated Diagnostics: Convenient built-in LED status indicators for real-time operational monitoring and simplified troubleshooting
• Exceptional Noise Immunity: Expertly engineered to perform reliably in electrically noisy industrial environments, safeguarding data integrity
• Effortless Integration: Fully compatible with all Mitsubishi Electric MELSEC-Q Series PLC CPUs, ensuring a smooth and straightforward setup

Technical Specifications

• Model Number: Q68ADI
• Product Series: MELSEC-Q
• Input Signal Configuration: Voltage (±10V, 0–10V, 1–5V), Current (0–20mA, 4–20mA)
• Conversion Rate: 1 ms per channel, facilitating rapid data updates
• Input Range: Fully configurable on a per-channel basis to meet specific application requirements
• Insulation: Enhanced photocoupler isolation for superior electrical protection and signal integrity
• Mounting Standard: Designed for standard Q-Series base unit slot mounting
• Operating Temperature Range: 0°C to 55°C, ensuring robust operation in industrial settings
• Physical Dimensions: Approximately 0.2 kg (0.44 lbs)
• Compliance: CE, UL certified, adhering to international quality and safety standards

Applications

• Process Monitoring: Real-time temperature, pressure, flow, and level monitoring in critical industrial processes
• Automated Control Systems: Integral component for precise industrial process control and automation
• Environmental Data Collection: Accurate acquisition of environmental parameters for analysis and compliance
• Precision Test & Measurement: Foundational element in advanced precision test systems requiring high accuracy
• Energy Management: Monitoring and control in building management systems and energy optimization projects

Why Choose This Model?

The Mitsubishi Electric Q68ADI stands out as an unparalleled choice for engineers and system integrators demanding the highest levels of accuracy and reliability. Its 16-bit resolution guarantees exceptional data fidelity, capturing even the most subtle signal variations. The implementation of differential inputs significantly mitigates electrical noise, transforming raw signals into pristine data for superior process control. With its flexible support for a wide array of voltage and current signals, configurable on a per-channel basis, the Q68ADI offers unmatched adaptability for diverse industrial challenges. Built for the rigorous demands of automation environments, its robust construction and proven performance ensure continuous, reliable operation, minimizing downtime and maximizing productivity. Invest in the Q68ADI for a future-proof solution that delivers consistent, high-quality results.

Order Now

Secure your Mitsubishi Electric Q68ADI analog input module today and elevate your industrial automation capabilities. This high-precision module is currently in stock and ready for immediate shipment to streamline your operations and enhance data accuracy. Don't miss the opportunity to integrate this critical component into your MELSEC-Q Series PLC system. Experience the difference that superior engineering makes.
