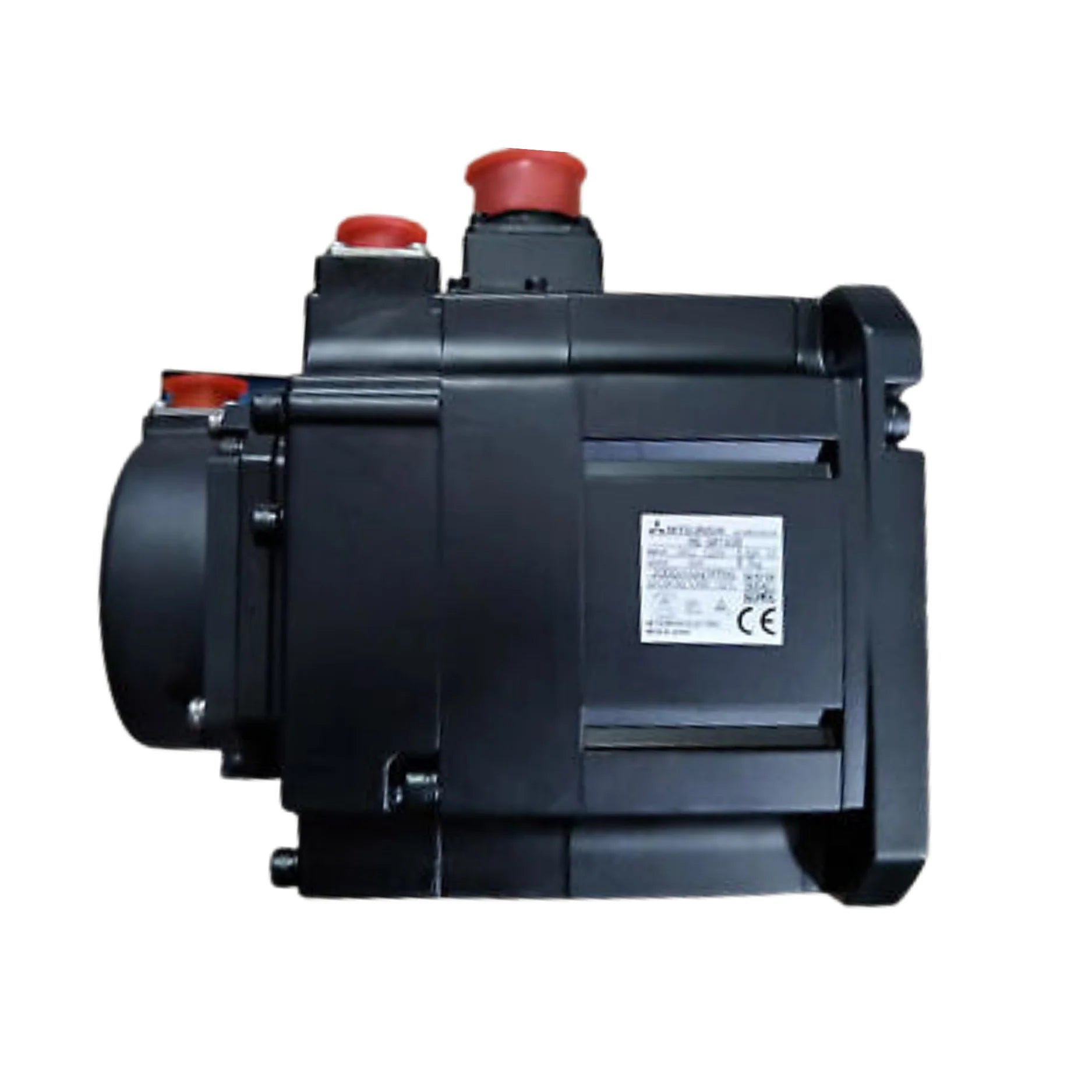

Mitsubishi HG-SR102B

Overview

The Mitsubishi Electric HG-SR102B represents a pinnacle of servo motor technology, engineered to deliver unparalleled precision and power in demanding industrial automation environments. As a core component of the acclaimed HG-SR series, this 1 kW AC servo motor is meticulously designed for applications requiring high torque density, rapid response, and exceptional positional accuracy. Its robust construction, coupled with advanced features like a built-in holding brake and a straight shaft, ensures reliable and secure motion control. This motor is a testament to Mitsubishi Electric's commitment to innovation, providing a sophisticated solution for modern industrial machinery that demands optimal performance and efficiency.

Key Features

• Rated Output: 1 kW
• Rated Voltage: 200 V AC
• Rated Speed: 3000 rpm
• Shaft Type: Straight with keyway for secure coupling
• Brake System: Integrated electromagnetic holding brake for enhanced safety and stability
• High Torque Density: Optimized design provides substantial torque within a compact footprint
• Low Inertia: Ensures rapid acceleration and deceleration capabilities
• High-Resolution Feedback: Equipped with a 22-bit absolute encoder for precise positioning and feedback
• Compatibility: Seamlessly integrates with MR-J4 and MR-J5 servo amplifiers for comprehensive system control

Technical Specifications

• Catalog Number: HG-SR102B
• Rated Torque: Approximately 3.2 Nm
• Peak Torque: Approximately 9.5 Nm
• Rated Current: Approximately 5.4 A
• Maximum Speed: 6000 rpm
• Encoder Resolution: 22-bit absolute/incremental for superior accuracy
• Protection Class: IP65 (excluding the shaft extension) ensures dust and water resistance
• Cooling Method: Natural convection for efficient heat dissipation
• Mounting: Flange type for flexible installation
• Insulation Class: F for enhanced thermal endurance
• Certifications: CE, UL, RoHS compliant, affirming global standards for safety and environmental responsibility

Applications

The Mitsubishi Electric HG-SR102B servo motor is ideally suited for a diverse range of high-precision industrial applications, including but not limited to:

• Precision Machinery and Automation Lines: Driving critical movements in automated assembly and manufacturing processes.
• Packaging and Labeling Equipment: Ensuring accurate and high-speed operation for efficient product packaging.
• CNC and Machining Centers: Providing precise tool positioning and workpiece manipulation for superior machining quality.
• Pick-and-Place and Robotic Systems: Enabling rapid, accurate, and repeatable robotic movements.
• Servo-Driven Conveyors and Feeders: Offering controlled and synchronized material handling solutions.

Why Choose This Model?

The HG-SR102B stands out as a superior choice for industrial automation due to its exceptional combination of features and Mitsubishi Electric's renowned engineering:

• High-Torque Performance: Delivers robust power within a compact and space-saving housing.
• Integrated Safety: The built-in brake provides essential security for vertical axes and ensures stability during power loss.
• Smooth and Dynamic Operation: Guarantees smooth performance even at high operational speeds, minimizing vibration and maximizing efficiency.
• Optimal for Demanding Tasks: Engineered for dynamic, high-precision applications where accuracy and reliability are paramount.
• Trusted Technology: Backed by Mitsubishi Electric’s advanced servo technology, ensuring longevity, support, and cutting-edge innovation.
• Global Availability: With worldwide shipping, this high-performance motor is accessible for projects across the globe.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi Electric HG-SR102B servo motor. This high-performance 1 kW servo motor is readily available and can be shipped worldwide, ensuring that your operations benefit from Mitsubishi Electric's superior technology without delay. For additional options within this series, we invite you to return to our comprehensive Mitsubishi Servo Motor HG Series collection. Discover our complete inventory of Mitsubishi Servo Motors, designed to provide unparalleled precision, high torque density, and advanced motion control solutions for every facet of industrial automation. Invest in reliability, precision, and performance with Mitsubishi Electric.
