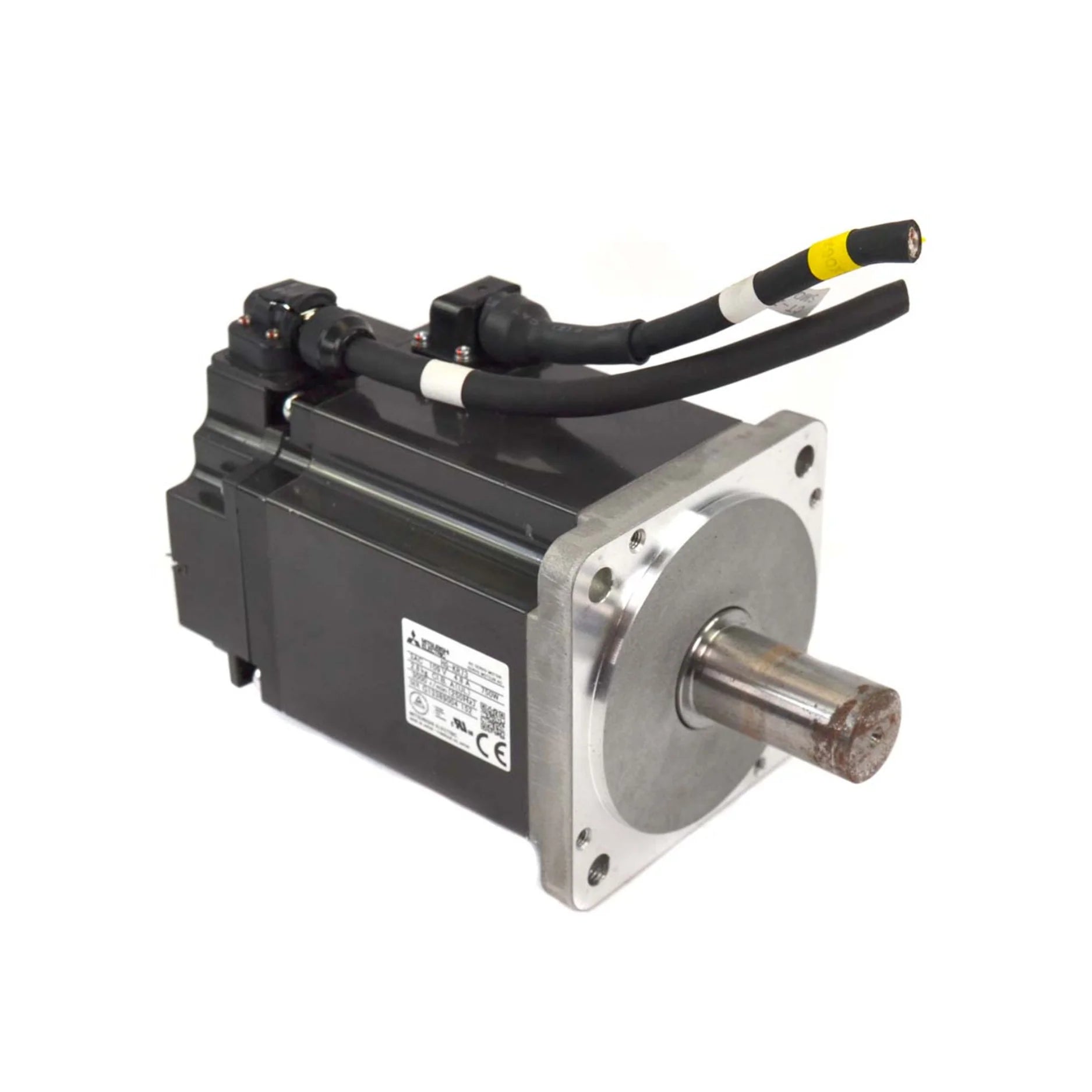

Mitsubishi HG-KR73

Overview

The Mitsubishi Electric HG-KR73 is a high-performance 750W AC servo motor, a cornerstone of the renowned HG-KR Series. Meticulously engineered for applications demanding unparalleled precision, compact integration, and robust performance, this servo motor is an ideal solution for modern automation challenges. Operating at 200V AC with a rated speed of 3000 RPM, it ensures dynamic and responsive motion control. The integrated 22-bit incremental encoder provides exceptional feedback resolution, guaranteeing pinpoint accuracy when seamlessly paired with Mitsubishi Electric MR-J4 servo amplifiers. Its advanced design makes it a top choice for optimizing industrial machinery where reliability and intricate control are paramount.

Key Features

• Rated Output: 750W (0.75kW) for powerful and efficient operation.
• Rated Voltage: 200V AC, compatible with standard industrial power supplies.
• Rated Speed: 3000 RPM, delivering rapid and consistent rotational velocity.
• Max Speed: Up to 6000 RPM, ideal for applications requiring quick acceleration and high-speed maneuvers.
• Encoder: 22-bit Incremental, providing superior positional feedback and control accuracy.
• Frame Size: Compact 60mm flange, optimized for space-constrained installations.
• Brake Option: Available, allowing for enhanced safety and controlled stopping (verify specific model variant).
• Compact Design: Thoughtfully engineered to maximize performance within minimal footprints, facilitating integration into tight machinery.

Technical Specifications

• Model: HG-KR73
• Series: HG-KR
• Rated Torque: 2.4 Nm, providing significant power for various loads.
• Peak Torque: Approximately 7.2 Nm, for momentary bursts of high power.
• Insulation Class: F, ensuring robust thermal endurance and reliability.
• Protection Class: IP65 (excluding shaft and connector), offering excellent protection against dust and water jets in industrial environments.
• Mounting Type: Flange mount, for secure and straightforward installation.
• Ambient Temperature: 0°C to 40°C, suitable for a wide range of operating conditions.
• Weight: Approximately 1.8 kg (3.97 lbs), contributing to its compact and agile design.
• Compatible Drives: Seamlessly integrates with MR-J4-A, MR-J4-B, and MR-J4-G series servo amplifiers for optimal system performance.

Applications

The Mitsubishi HG-KR73 servo motor is a versatile component, perfectly suited for a multitude of industrial applications where precision, speed, and reliability are critical:

• Precision Positioning Equipment: Ideal for machinery requiring exact and repeatable movements, such as CNC machines and robotic arms.
• Semiconductor Handling Machines: Provides the delicate yet precise control necessary for handling sensitive semiconductor components.
• Pick-and-Place Systems: Ensures rapid and accurate material handling in automated assembly lines.
• Light-Duty Robotics: Powers compact robotic solutions demanding agility and high positional accuracy.
• Packaging and Labeling Machines: Delivers consistent and fast operation for efficient packaging and precise label application.

Why Choose This Model?

Opting for the Mitsubishi HG-KR73 servo motor means investing in superior motion control technology:

• High Torque in a Compact Body: Experience impressive power output from a motor designed to fit into space-sensitive equipment without compromise.
• Exceptional Accuracy: The 22-bit resolution incremental encoder provides ultra-smooth, precise, and repeatable control, vital for demanding applications.
• Fast Dynamic Response:Engineered for rapid acceleration and deceleration, the HG-KR73 is built to excel in applications requiring high-speed motion and quick settling times.
• Rugged Construction: With an IP65 rating (excluding shaft and connector), this motor is designed to withstand harsh industrial environments, ensuring long-term reliability and reduced downtime.
• Seamless Integration: Designed for optimal compatibility with Mitsubishi Electric MR-J4 series amplifiers, guaranteeing a harmonized and high-performing servo system.

Order Now

Elevate your automation systems with the Mitsubishi HG-KR73 servo motor. This high-precision, compact, and powerful solution is readily available and poised for immediate shipment to enhance your operational efficiency. Explore our extensive range of Mitsubishi Electric Servo Motors for advanced motion control solutions tailored to diverse industrial automation needs.
