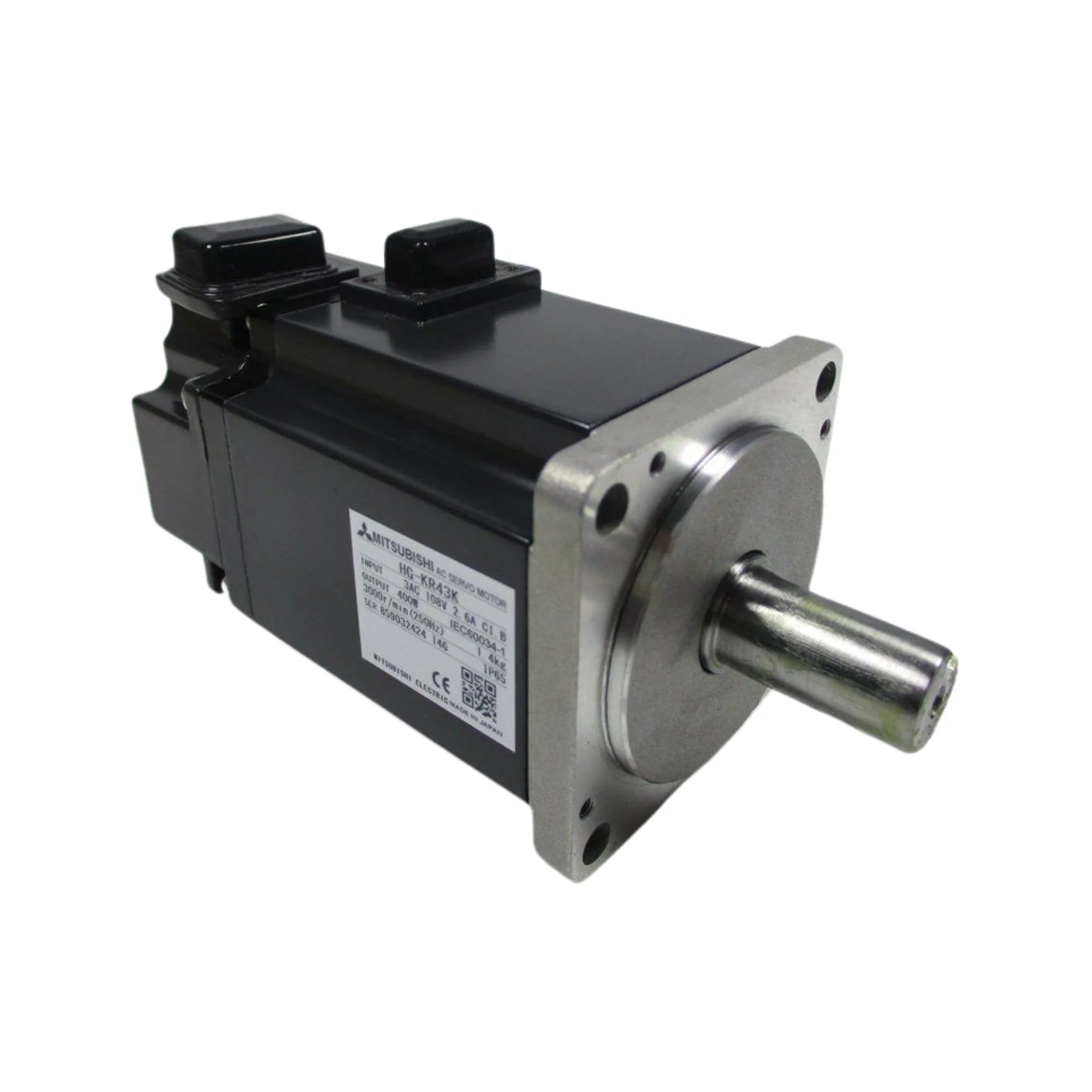

Mitsubishi HG-KR43K

Overview

Unlock unparalleled precision and control in your industrial automation applications with the Mitsubishi Electric HG-KR43K AC Servo Motor. Part of the renowned HG-KR Series, this high-performance 400W servo motor is engineered for demanding tasks requiring accurate and rapid positioning. Its compact design, coupled with a robust built-in brake and a high-resolution 22-bit incremental encoder, makes it an ideal solution for a multitude of advanced machinery. The HG-KR43K is meticulously crafted to deliver exceptional responsiveness and stability, ensuring your operations run smoothly and efficiently. Designed for seamless integration with MR-J4 Series servo amplifiers, this motor offers a powerful and reliable foundation for your motion control systems.

Key Features

• Rated Output: A dynamic 400W (0.4kW) for potent and consistent performance.
• Rated Voltage: Operates efficiently at 200V AC, suitable for various industrial power setups.
• Rated Speed: Achieves a rapid 3000 RPM, facilitating swift movements and high throughput.
• Maximum Speed: Capable of reaching up to 6000 RPM for exceptional burst performance.
• Encoder Type: Equipped with a sophisticated 22-bit incremental encoder, providing superior positional feedback and accuracy.
• Built-in Brake: Features an integrated holding brake, indispensable for applications requiring vertical axis stability or enhanced safety.
• Compact Frame: Optimized for installations where space is a premium, enabling greater design flexibility.
• Low Inertia Design: Engineered for minimal inertia, ensuring swift acceleration, deceleration, and high-speed positioning accuracy.

Technical Specifications

• Model: HG-KR43K
• Series: HG-KR
• Rated Torque: Delivers a consistent 1.3 Nm for reliable operation.
• Peak Torque: Reaches approximately 3.9 Nm for challenging loads and dynamic requirements.
• Brake Holding Torque: Approximately 1.3 Nm, ensuring secure load holding.
• Insulation Class: Class F insulation, signifying high thermal endurance and longevity.
• Protection Class: IP65 rated (excluding shaft and connectors), offering excellent protection against dust and water jets in industrial environments.
• Mounting Type: Standard flange mounting for straightforward installation.
• Ambient Temperature: Functional across a wide range from 0°C to 40°C.
• Weight: A manageable approximate weight of 1.5 kg (3.3 lbs).
• Compatible Drives: Seamlessly integrates with MR-J4-A, MR-J4-B, and MR-J4-G series servo amplifiers.

Applications

The Mitsubishi Electric HG-KR43K servo motor is a versatile component, perfectly suited for a diverse range of demanding industrial applications, including:

• Vertical Axis Control: Ensures precise and secure movement in lifts, hoists, and other vertical positioning systems due to its integrated brake.
• Pick-and-Place Machinery: Facilitates high-speed and accurate material handling in automated assembly lines.
• Packaging and Printing Equipment: Provides the vital precision and speed required for efficient and consistent packaging and printing processes.
• Robotic Arms and Automation Cells: Enhances the dexterity and repeatability of robotic systems in complex manufacturing environments.
• Positioning Tables: Guarantees highly accurate and repeatable positioning for inspection, assembly, and machining tasks.

Why Choose This Model?

• Integrated Safety with Built-In Brake: The indispensable built-in holding brake provides an essential layer of safety and stability, particularly in applications involving vertical loads or emergency stop scenarios.
• Exceptional Speed and Accuracy: Engineered for high-speed operation and pinpoint accuracy, the HG-KR43K meets the rigorous demands of advanced automation, boosting productivity and quality.
• Space-Saving Compact Build: Its intelligently designed compact form factor allows for integration into systems with limited space, optimizing machine footprint without compromising performance.
• Robust and Durable Construction: Boasting an IP65 protection rating, this servo motor is built to withstand harsh industrial conditions, ensuring long-term reliability and reducing maintenance needs.
• Seamless Compatibility: Designed for perfect synergy with Mitsubishi Electric MR-J4 Series amplifiers, guaranteeing optimal performance and simplified system integration.

Order Now

The Mitsubishi Electric HG-KR43K Servo Motor with Brake is currently in stock and available for immediate shipment, ready to integrate into your critical automation projects. Enhance your system's capabilities with this reliable and high-performance solution. For additional options within this powerful product family, please visit our Mitsubishi Servo Motor HG Series collection. Discover our complete selection of Mitsubishi Servo Motors, meticulously engineered to provide superior precision, high torque density, and cutting-edge motion control solutions for the most demanding industrial automation challenges.
