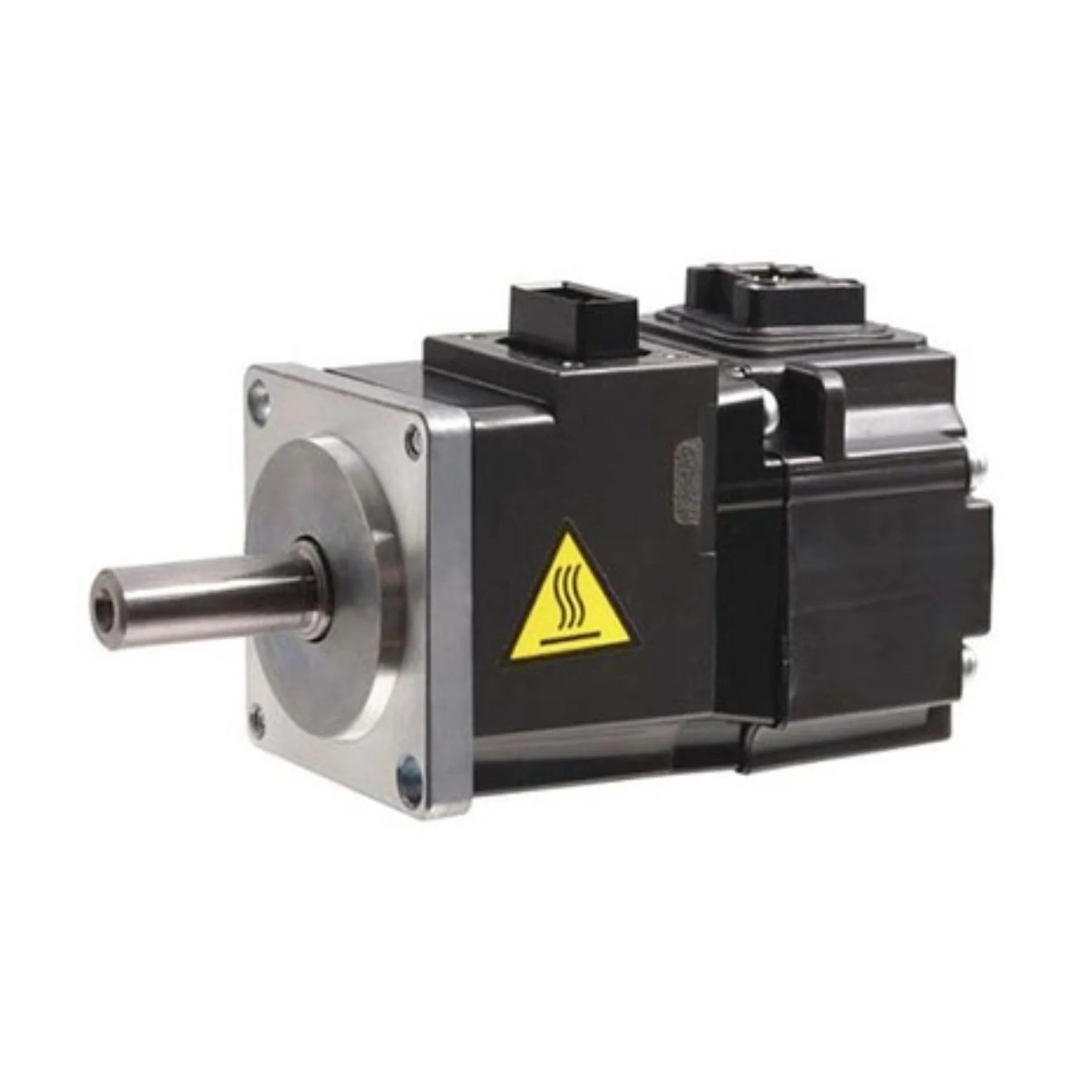

Mitsubishi HG-KR13B

Overview

The Mitsubishi Electric HG-KR13B is a high-performance, ultra-compact AC servo motor meticulously engineered for applications demanding exceptional precision and reliability within confined spaces. As a distinguished member of the acclaimed HG-KR series, this 100W servo motor integrates a robust built-in brake, making it an ideal solution for systems requiring secure positioning during power-off conditions. Delivering a formidable 3000 RPM rated speed and boasting an impressive maximum speed of up to 6000 RPM, the HG-KR13B stands out for its superior responsiveness and high positioning accuracy, critical attributes for the most rigorous industrial automation environments. Its innovative design prioritizes both performance and space efficiency, ensuring seamless integration into intricate machinery without compromising on power or control.

Key Features

• Optimized Power Output: Delivers a consistent 100W, providing efficient and precise motion control for various tasks.
• High-Speed Operation: Achieves a rated speed of 3000 RPM and can reach a maximum speed of up to 6000 RPM, facilitating rapid and dynamic movements.
• Integrated Safety Brake: Fitted with a reliable built-in brake, ensuring stable holding torque and secure positioning when power is disengaged, enhancing operational safety.
• Advanced Encoder Technology: Features a high-resolution incremental encoder (typically 4,194,304 pulses/revolution) for exceptionally accurate position feedback and control.
• Ultra-Compact Design: Engineered with a minimal footprint, making it perfectly suited for installations where space is a premium.
• Reduced Inertia: Characterized by low inertia, enabling swift acceleration and deceleration cycles, crucial for applications requiring agile and responsive motion.
• Robust Construction: Boasts an IP65 protection rating (excluding the shaft), offering excellent resistance against dust and water ingress, ensuring longevity in challenging industrial settings.

Technical Specifications

• Model: HG-KR13B
• Series: HG-KR Series
• Rated Power Output: 100W
• Rated Speed: 3000 RPM
• Maximum Speed: Up to 6000 RPM
• Rated Torque: 0.32 Nm
• Peak Torque: Approximately 0.96 Nm
• Voltage Class: 200V AC
• Protection Rating: IP65 (excluding shaft)
• Cooling Method: Natural air cooling
• Insulation Class: F
• Mounting: Flange
• Weight: Approximately 0.6 kg
• Encoder Type: Incremental, high-resolution (typically 4,194,304 pulses/rev)

Applications

The versatility and precision of the Mitsubishi Electric HG-KR13B servo motor make it an indispensable component across a broad spectrum of demanding industrial applications. Its compact size and integrated brake are particularly advantageous in:

• Semiconductor Manufacturing Equipment: Ensuring ultra-fine positioning and rapid movement for wafer handling and processing.
• Laboratory Automation Systems: Providing accurate and repeatable motion for intricate testing and analysis apparatus.
• Compact Robotic Arms: Facilitating agile and precise movements in confined operational envelopes for assembly, pick-and-place, and inspection tasks.
• Light Conveyor Systems: Offering smooth and controlled material handling for delicate or high-value items.
• Pick-and-Place Units: Executing high-speed, accurate component placement in electronics assembly and packaging.
• High-Precision Motion Equipment with Holding Requirements: Ideal for vertical applications or scenarios where maintaining a precise position during power loss is critical for safety and operational integrity.

Why Choose This Model?

The Mitsubishi Electric HG-KR13B stands as a testament to engineering excellence, offering a unique blend of features that deliver tangible benefits to advanced automation systems:

• Integrated Safety and Stability: The standard built-in brake provides an invaluable safety feature, securing machinery positioning during unexpected power interruptions or routine shutdowns, preventing potential damage or misalignment.
• Unmatched Space Efficiency: Its ultra-compact design revolutionizes how automation can be implemented, allowing designers to create more streamlined and efficient machinery, particularly in space-constrained applications.
• Dynamic High-Speed Performance: With capabilities extending up to 6000 RPM, this servo motor ensures that your machinery can operate at optimal speeds, significantly enhancing productivity and throughput for fast-paced applications.
• Legacy of Mitsubishi Electric Reliability: As a product from Mitsubishi Electric, the HG-KR13B inherits a reputation for unparalleled quality, durability, and long-term performance, ensuring a robust and dependable solution for critical automation tasks.
• Exceptional Precision Control: Coupled with its high-resolution encoder, the HG-KR13B offers superior positioning accuracy, making it the go-to choice for applications where exact movements are paramount.

Order Now

Elevate your automation capabilities with the Mitsubishi Electric HG-KR13B AC Servo Motor. This compact, high-performance solution is ready to optimize your precision motion control requirements. The HG-KR13B is available for global shipping, bringing cutting-edge Mitsubishi Electric technology directly to your operation, wherever you are. For further exploration within this esteemed product family, we invite you to review our comprehensive collection of Mitsubishi Servo Motor HG Series. Discover our complete inventory of Mitsubishi Servo Motors, each meticulously designed to deliver industry-leading precision, exceptional torque density, and sophisticated motion control solutions for the most demanding industrial automation challenges.
