Mitsubishi GT2103-PMBDS

Overview

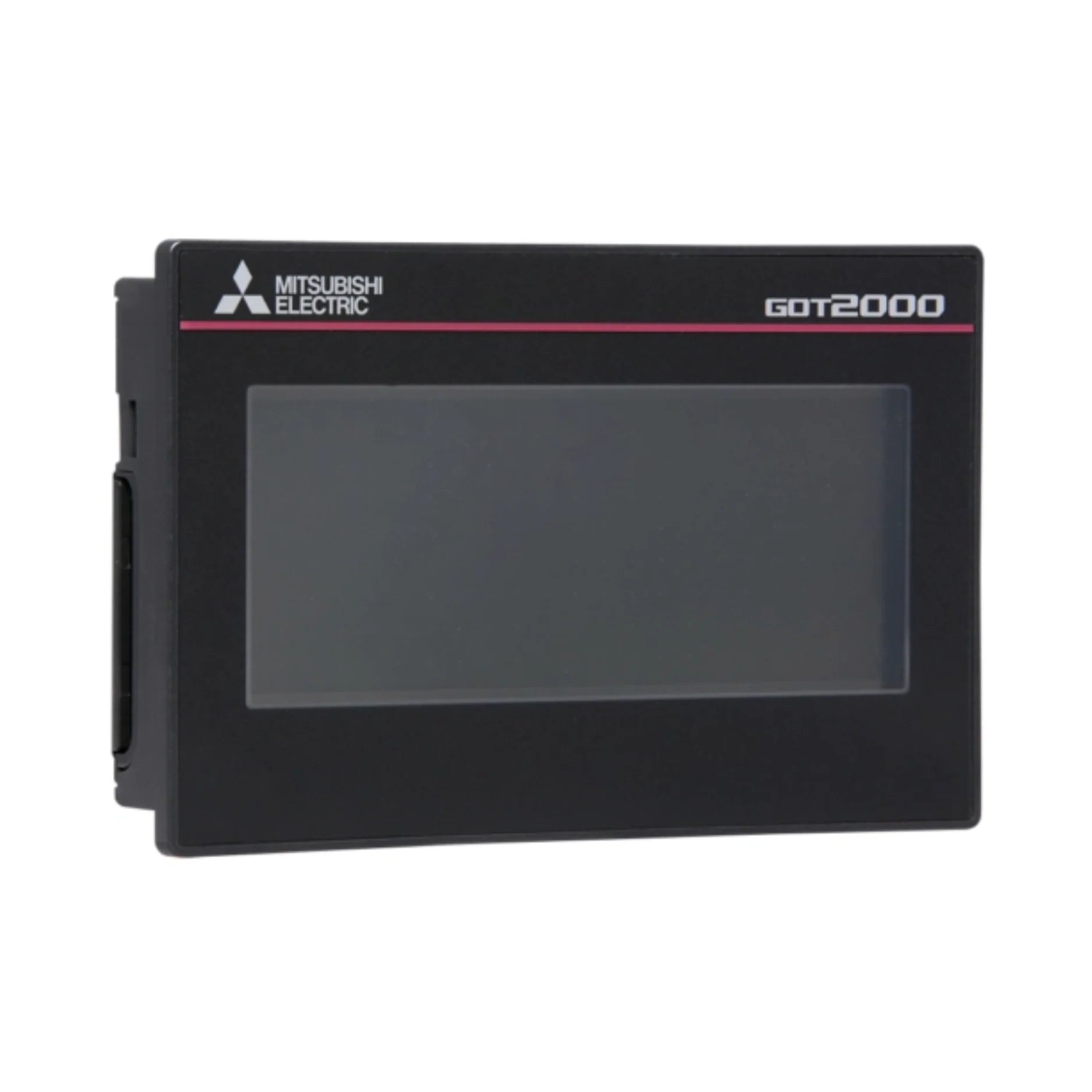

The Mitsubishi GT2103-PMBDS is a highly efficient, compact Human Machine Interface (HMI) from Mitsubishi Electric's renowned GOT2000 Series. Engineered for streamlined operation in industrial environments, this 3.8-inch monochrome HMI delivers essential operator interface functionalities with remarkable reliability and ease of integration. It serves as an ideal solution for applications requiring a clear, concise visual display and robust serial communication capabilities. The GT2103-PMBDS is designed to empower basic control tasks, making it a cornerstone for optimizing efficiency in various compact industrial systems worldwide.

Key Features

• Vivid Monochrome Display: Enjoy crisp and clear visuals on the 3.8” STN monochrome LCD with a resolution of 320 × 120 pixels, supporting 16 shades of gray for enhanced readability.
• Seamless Connectivity: Equipped with built-in RS-232 and RS-422 communication ports, ensuring reliable and versatile connectivity with a wide range of industrial devices.
• User-Friendly Interface: Three dedicated function keys provide fast and intuitive access to critical operations, streamlining user interaction.
• Long-Lasting Performance: Features an LED backlight with an extended service life, guaranteeing consistent visibility and reducing maintenance needs.
• Flexible Installation: Designed for versatile mounting options, including both panel-mount and DIN rail installation, to suit diverse industrial setups.
• Effortless Integration: Engineered for easy integration with Mitsubishi PLCs, facilitating quick and efficient system setup and operation.

Technical Specifications

• Model Number: GT2103-PMBDS
• Display Size: 3.8 inches
• Display Type: Monochrome STN LCD
• Resolution: 320 × 120 pixels
• Communication Interfaces: RS-232, RS-422
• Backlight Type: White LED
• Power Supply: 24 V DC
• Operating Temperature: 0 °C to +55 °C
• Front Panel Rating: IP65 (when mounted), ensuring protection against dust and water ingress.
• Dimensions: Approximately 154 × 83 × 32 mm
• Certifications: CE, UL, RoHS, guaranteeing compliance with international quality and safety standards.

Applications

The Mitsubishi GT2103-PMBDS is exceptionally versatile and well-suited for a broad spectrum of industrial applications, including:

• Simple Machine Interface Control: Providing an intuitive and reliable interface for basic machine operation.
• HVAC and Building Automation: Ideal for monitoring and controlling environmental systems in smart buildings.
• Basic Packaging Equipment: Enhancing the control and feedback mechanisms in various packaging machinery.
• Local Status and Alarm Display: Delivering clear and immediate information on operational status and critical alerts.
• OEM Machinery with Limited Space: Its compact design makes it perfect for integration into systems where space is at a premium.

Why Choose This Model?

Opting for the Mitsubishi GT2103-PMBDS means investing in a solution that combines Mitsubishi Electric's renowned quality with practical functionality. This HMI stands out as a compact and economical choice for fulfilling fundamental HMI requirements, offering robust and reliable communication with serial devices. Its compatibility with GT Works3 software ensures easy programming and seamless integration into existing or new automation systems. The durable front panel, rated IP65, provides superior protection in demanding industrial environments. Furthermore, by choosing this model, you benefit from the unwavering support and cutting-edge technology associated with Mitsubishi Electric, a global leader in industrial automation.

Order Now

Take the next step in optimizing your industrial operations with the Mitsubishi GT2103-PMBDS HMI. This essential component is readily available and ready to ship worldwide, ensuring you can enhance your systems without delay. Explore our comprehensive collection of Mitsubishi Electric HMI – GOT Series Touch Panels for additional options and discover the perfect fit for your specific needs. For a complete automation solution, delve into our full range of Mitsubishi Industrial Automation Products, including PLCs, HMIs, drives, and motion solutions, all engineered for unparalleled performance, connectivity, and flexibility across diverse industrial applications.
