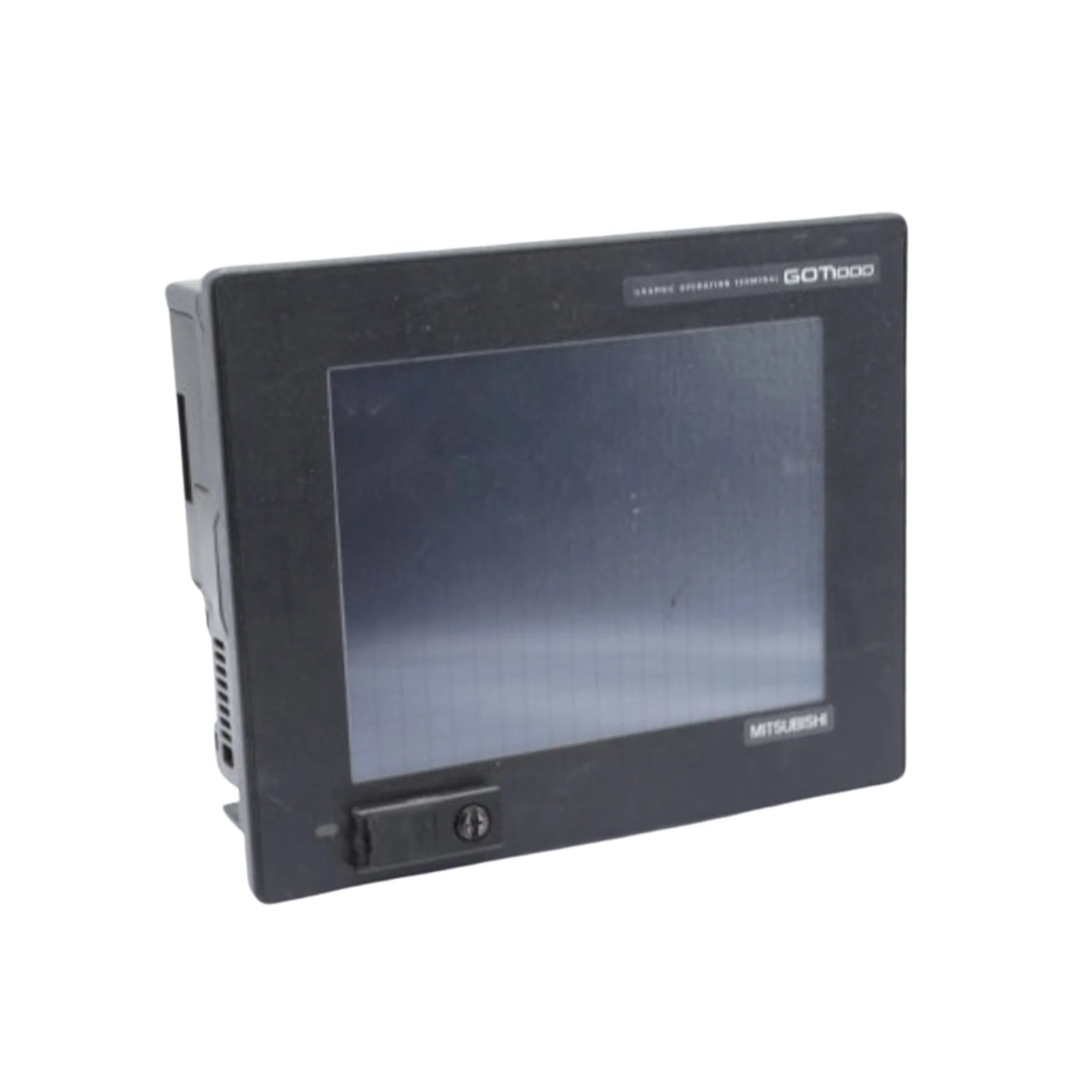

Mitsubishi GT1155‑QSBD‑C

Overview

Elevate your industrial operations with the Mitsubishi Electric GT1155-QSBD-C, a state-of-the-art Human Machine Interface (HMI) designed for optimal performance and intuitive control. This impressive HMI boasts a generous 15.6-inch TFT color display, rendering crisp visuals with a 1366 × 768 (WXGA) resolution. As a proud member of Mitsubishi Electric's advanced GOT1000 series, the GT1155-QSBD-C offers not just stunning clarity but also highly responsive touch functionality, making complex controls straightforward and efficient. Its robust design is complemented by versatile communication options, including Ethernet and multiple USB interfaces, ensuring seamless integration into existing industrial networks and compatibility with a wide array of Mitsubishi PLCs and other automation equipment. This HMI is engineered to provide real-time monitoring and precise control, crucial for maintaining peak operational efficiency in diverse industrial environments. With its user-friendly interface and durable construction, the GT1155-QSBD-C is an indispensable tool for modern factory automation.

Key Features

• GOT1000 Series: Part of Mitsubishi Electric's renowned GOT1000 series, guaranteeing advanced performance and reliability.
• Large 15.6″ TFT Display: A spacious touchscreen provides ample screen real estate for detailed visual data and intuitive interaction.
• High Resolution Visuals: Experience clear and vibrant graphics with a native resolution of 1366 × 768 (WXGA).
• Responsive Touch Panel: Equipped with an analog resistive or capacitive type touch panel for accurate and immediate feedback.
• Durable LED Backlight: Long-life LED backlight ensures consistent brightness and extended operational hours.
• Comprehensive Connectivity: Features Ethernet, RS-232/485, and both Host/Device USB ports for flexible integration.
• Ample Memory: Comes with 128 MB of internal memory, expandable via an SD card slot for extensive data storage.
• Robust Panel Mount Design: Engineered for secure panel mounting, ensuring stability and protection in industrial settings.
• Fanless Cooling: A fanless design contributes to increased reliability and reduced maintenance by eliminating moving parts and dust ingress.

Technical Specifications

• Model Number: GT1155-QSBD-C
• Display Area: Approximately 344 × 194 mm
• Colors: Supports 65,536 vivid colors for rich graphical displays.
• Power Supply: Operates efficiently on 24 V DC.
• Operation Temperature: Designed to perform reliably in environments ranging from 0°C to 50°C.
• Storage Temperature: Capable of storage in temperatures between –20°C to 60°C.
• Front Protection: Achieves IP65 rating when properly mounted, offering excellent protection against dust and water ingress.
• Dimensions: Approx. 405 × 265 × 55 mm
• Cutout Size: Approx. 385 × 245 mm for seamless integration.
• Weight: Approximately 4.5 kg
• Certifications: Complies with CE, UL, and RoHS standards, ensuring quality and safety.

Applications

The Mitsubishi Electric GT1155-QSBD-C HMI is a versatile solution suitable for a wide array of industrial applications, providing critical control and visualization capabilities:

• Factory Floor Machine Control: Ideal for managing and monitoring individual machines or entire production lines, offering operators a clear and interactive interface.
• SCADA and Process Control Panels: Serves as a central interface for Supervisory Control and Data Acquisition (SCADA) systems, enabling comprehensive process visualization and management.
• Packaging and Assembly Line Interfaces: Enhances efficiency and reduces errors in packaging and assembly operations through intuitive control and real-time feedback.
• Batch Control and Monitoring: Perfect for industries requiring precise batching and sequential control, providing detailed oversight and operational flexibility.
• OEM Equipment Operator Panels: An excellent choice for original equipment manufacturers looking to integrate a high-quality, reliable, and user-friendly operator interface into their machinery.

Why Choose This Model?

The GT1155-QSBD-C stands out as a premier choice for industrial HMI solutions due to its exceptional blend of features, reliability, and ease of use:

• Large, Rich Display: Its expansive 15.6-inch screen coupled with high-resolution visuals ensures that critical data is always presented with utmost clarity, improving decision-making and operational efficiency.
• Flexible Connectivity: With a comprehensive suite of communication ports including Ethernet, USB, and serial, this HMI offers unparalleled flexibility for integration into diverse industrial networks and systems.
• Durable Construction: The IP65-rated front panel provides superior protection against harsh industrial elements like dust and water, ensuring long-term reliability and performance in demanding environments.
• User-Friendly Interface: Designed for intuitive interaction, the fast and accurate touch operation minimizes learning curves and maximizes operator productivity.
• Robust Software Support: Fully configurable via GT Works3 software, engineers can easily develop and deploy sophisticated HMI applications, tailored to specific operational needs.

Order Now

Don't compromise on performance or reliability. The Mitsubishi Electric GT1155-QSBD-C HMI touchscreen is readily available to enhance your industrial automation setup and ships worldwide. Discover the full potential of your operations with this advanced HMI. For more options within this exceptional product family, we invite you to return to the Mitsubishi Electric HMI – GOT Series Touch Panels collection. Additionally, explore our comprehensive range of Mitsubishi Industrial Automation Products to find PLCs, HMIs, drives, and motion solutions meticulously engineered for high performance, seamless connectivity, and unparalleled flexibility across all your industrial applications.
