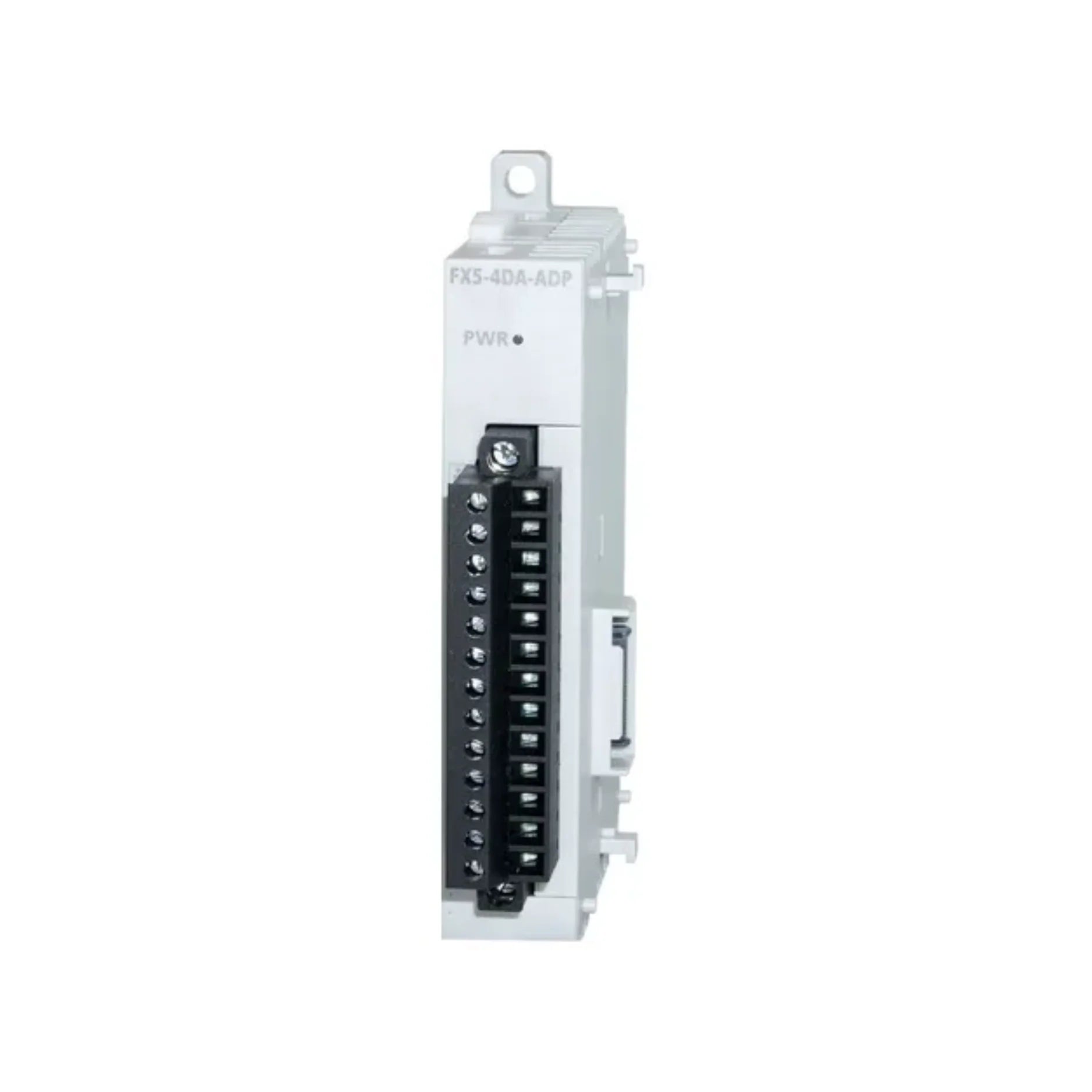

Mitsubishi FX5-4DA-ADP

Overview

The Mitsubishi Electric FX5-4DA-ADP is a high-performance, 4-channel analog output adapter module meticulously engineered to seamlessly integrate with the MELSEC iQ-F FX5U and FX5UC series Programmable Logic Controllers (PLCs). This advanced module empowers industrial automation systems by providing highly precise analog signal output in both voltage (0–10V DC) and current (4–20mA DC) formats. Designed for superior reliability and accuracy, the FX5-4DA-ADP is the ideal solution for accurately controlling a wide array of actuators, variable speed drives, valves, and other analog input devices, ensuring optimal performance and efficiency in demanding environments. Its compact design facilitates efficient panel space utilization while offering robust expansion capabilities for your existing or new FX5 PLC systems, providing unparalleled flexibility in system design and implementation.

Key Features

• 4 Independent Analog Outputs: Provides four dedicated channels, each capable of generating precise analog signals.
• Versatile Output Signal Types: Supports industry-standard 0–10V DC voltage output and 4–20mA DC current output, selectable per channel for diverse application needs.
• High-Resolution Digital-to-Analog Conversion: Features a 12-bit resolution, guaranteeing exceptional accuracy and fine-grained control over analog devices.
• Seamless ADP-Type Extension: Specifically designed as an ADP (Adapter) type module for easy and direct connection to FX5U and FX5UC PLCs, simplifying installation and configuration.
• DIN Rail Mountable: Facilitates quick and secure mounting on standard DIN rails, ensuring a stable and organized control panel layout.
• Individual Channel Configuration: Each of the four channels can be independently configured for either voltage or current output, offering maximum application flexibility.
• Space-Saving Compact Design: Engineered to occupy minimal panel space, making it perfect for applications where cabinet real estate is at a premium.
• Reliable and Stable Signal Generation: Delivers consistent and stable analog signals, critical for maintaining accuracy and control in sensitive industrial processes.

Technical Specifications

• Model: FX5-4DA-ADP
• Series Compatibility: Exclusively designed for the MELSEC iQ-F FX5U and FX5UC PLC series.
• Voltage Output Range: 0–10V DC with a load impedance requirement of ≥ 2kΩ.
• Current Output Range: 4–20mA DC with a maximum permissible load impedance of ≤ 500Ω.
• Conversion Time: Approximately 2 ms per individual channel, ensuring rapid response times.
• Operating Temperature: Rugged design suitable for operating within a temperature range of 0°C to 55°C.
• Mounting: Standard DIN rail mounting for convenient and secure installation.
• Weight: Approximately 0.2 kg (0.44 lbs), contributing to its compact and lightweight profile.
• Certifications: Compliant with CE (Conformité Européenne) and UL (Underwriters Laboratories) standards, ensuring safety and quality.

Applications

• Variable Speed Drive Control: Precisely regulate the speed of motors in manufacturing and process control.
• Valve and Actuator Modulation: Accurately control the position of pneumatic or hydraulic valves and actuators.
• Advanced Process Control Systems: Integrate into complex systems for managing flow, pressure, level, and temperature.
• Temperature and Pressure Regulation: Provide precise setpoint control for heating, cooling, and pressure systems.
• Analog Signal Transmission: Facilitate reliable and accurate transmission of analog data within intricate automation architectures.
• Robotics and Motion Control: Interface with robotic systems for fine-tuned movement and positioning.
• Building Management Systems: Control HVAC components and other building automation functions with precision.

Why Choose This Model?

Choosing the Mitsubishi Electric FX5-4DA-ADP means investing in a solution that offers unmatched flexibility, precision, and seamless integration for your industrial automation needs. Its ability to provide both voltage and current output on each of its four channels ensures broad compatibility with a variety of analog devices, reducing the need for multiple specialized modules. The high 12-bit resolution guarantees exceptional accuracy, crucial for applications demanding tight control and reliable performance. Designed as a cost-effective expansion adapter, the FX5-4DA-ADP allows you to significantly enhance the analog capabilities of your FX5U/FX5UC PLC system without incurring the expense or complexity of major hardware upgrades. Its compact form factor not only saves valuable cabinet space but also ensures straightforward installation and configuration, making it an ideal choice for expanding existing systems or designing new, efficient automation solutions. Future-proof your automation with the proven reliability and advanced features of Mitsubishi Electric.

Order Now

Elevate the precision and control of your industrial operations with the Mitsubishi Electric FX5-4DA-ADP 4-channel analog output module. Available and ready to ship, this essential component is your gateway to enhanced automation capabilities. Contact us today or place your order to experience the superior performance and reliability that only Mitsubishi Electric can deliver. Equip your MELSEC iQ-F PLC system with the unparalleled analog output control it deserves and optimize your processes for maximum efficiency and productivity.
