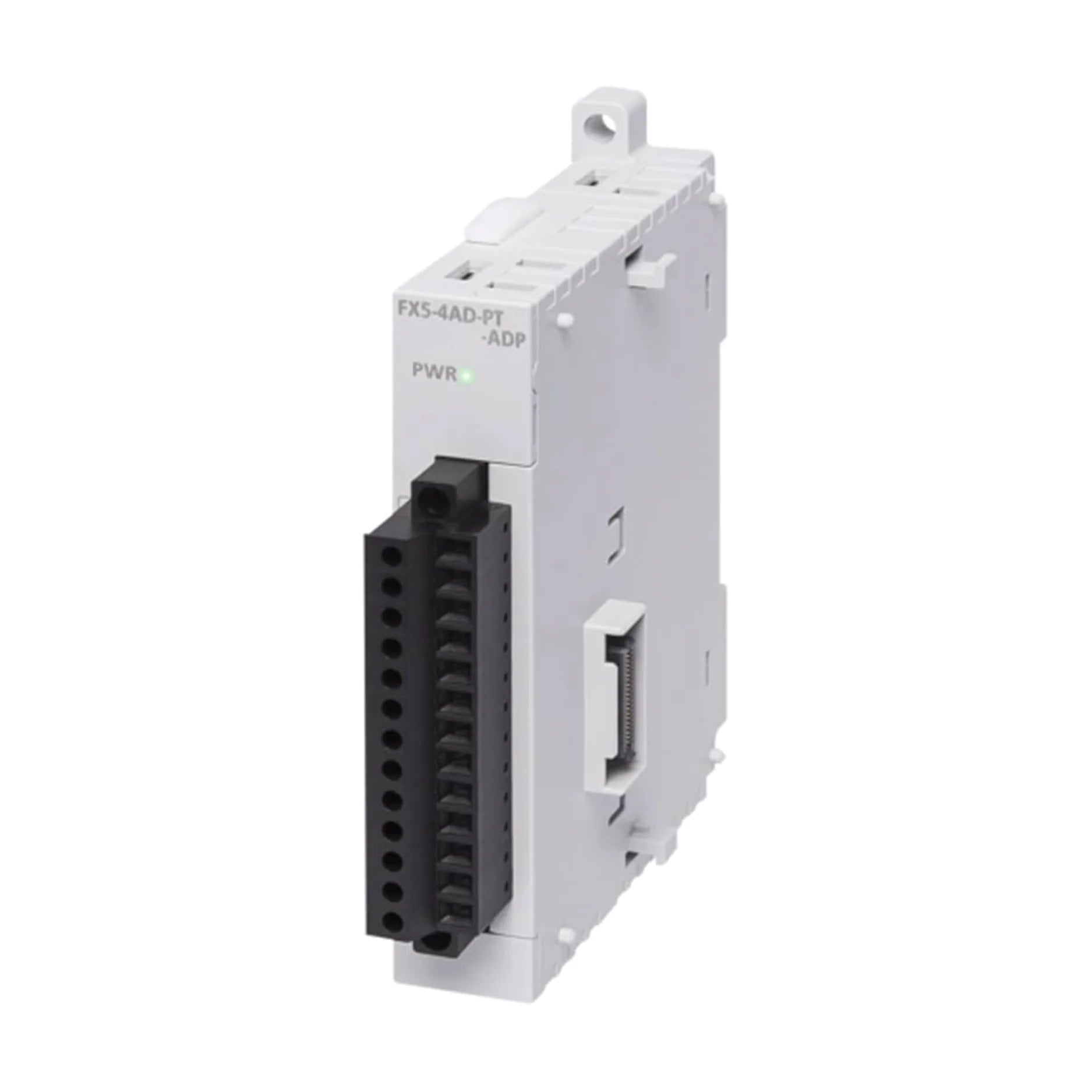

Mitsubishi FX5-4AD-PT-ADP

Overview

The Mitsubishi Electric FX5-4AD-PT-ADP is a state-of-the-art 4-channel analog input module engineered for seamless integration with the MELSEC iQ-F Series, specifically the FX5U/FX5UC PLCs. This versatile module offers unparalleled precision in data acquisition by accommodating both platinum RTDs (Pt100/Pt1000) and standard voltage (0-10V DC) and current (0-20mA DC) input signals. Designed to meet the rigorous demands of modern industrial automation systems, it ensures reliable and accurate monitoring of critical processes. Its robust design and advanced features make it an essential component for applications requiring high-fidelity analog signal processing.

Key Features

• Four Independent Analog Input Channels: Provides flexible connectivity for multiple sensors and signals.
• Broad Input Compatibility: Supports Pt100 / Pt1000 RTD for precise temperature measurement, alongside common 0–10 V DC voltage and 0–20 mA DC current inputs for universal applicability.
• High-Accuracy 16-bit A/D Conversion: Delivers exceptional signal resolution, capturing even the most subtle variations in analog data.
• Built-in Cold-Junction Compensation: Ensures accurate temperature readings from thermocouples by automatically compensating for ambient temperature fluctuations.
• Simultaneous Sampling on All Channels: Guarantees synchronized data acquisition across all four inputs for consistent and reliable process monitoring.
• Flexible Mounting Options: Compatible with both DIN rail and panel mount installations, offering versatility in system design.
• Diagnostic Status LEDs: Provides immediate visual feedback on module operation and status, simplifying troubleshooting.
• Fully Integrated with FX5U/FX5UC PLCs: Ensures effortless setup and optimized performance within the MELSEC iQ-F architecture.

Technical Specifications

• Model: FX5-4AD-PT-ADP
• Number of Channels: 4
• Supported Inputs:
  • Pt100 / Pt1000 RTD
  • Voltage: 0–10 V DC
  • Current: 0–20 mA DC
• A/D Resolution: 16-bit
• RTD Accuracy: Class A (IEC 751)
• Sampling Time: Approximately 5 ms per channel
• Load Impedance:
  • ≥10 kΩ (voltage)
  • ≤250 Ω (current)
• Isolation: Channel-to-channel
• Operating Temperature: 0 °C to +55 °C
• Power Supply: Sourced directly from the FX5U PLC base unit, simplifying wiring.
• Certifications: CE, UL, RoHS, ensuring compliance with global standards.

Applications

The Mitsubishi Electric FX5-4AD-PT-ADP is ideal for a broad spectrum of industrial applications, including:

• Precision Temperature Control: Utilizing Pt100/Pt1000 sensors in HVAC, ovens, and process heating.
• Analog Process Monitoring: Accurately measuring and controlling critical variables such as pressure, flow, and level in fluid dynamics and chemical processing.
• Automation in Specialized Industries: Enhancing efficiency and reliability in food and beverage, pharmaceutical manufacturing, and packaging lines.
• Data Acquisition in OEM and Laboratory Setups: Providing precise data for research, development, and system integration.
• Mixed-Signal Sensing in Compact PLC Systems: Offering a consolidated solution for diverse sensor inputs in space-constrained environments.

Why Choose This Model?

The FX5-4AD-PT-ADP stands out in the market for its unique combination of features and benefits:

• Versatile Input Capability: Unifies RTD and general analog signal input within a single module, reducing complexity and cost.
• Compact and Easy to Install: Its streamlined design allows for quick and efficient integration into existing or new control panels.
• Exceptional High-Precision: 16-bit resolution ensures highly accurate data acquisition, critical for demanding control systems.
• Seamless MELSEC iQ‑F Compatibility: Guarantees optimal performance and straightforward configuration within the revered MELSEC iQ-F architecture.
• Superior for Multi-Variable Sensing: An excellent choice for applications requiring simultaneous monitoring of various parameters, delivering comprehensive control.

Order Now

Elevate your industrial automation capabilities with the Mitsubishi Electric FX5-4AD-PT-ADP 4-Channel Analog Input Module. This robust and versatile module is readily available and ships worldwide, ensuring that your projects can proceed without delay. For further integration into your MELSEC system, we invite you to explore our comprehensive Mitsubishi FX5 Series PLC collection for more complementary options. Additionally, discover our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to uncover scalable automation solutions, from enduring legacy systems to a new generation of PLCs designed for unmatched performance, connectivity, and adaptability. Invest in precision, reliability, and the future of your industrial control systems today.
