Mitsubishi FX5‑485ADP

Overview

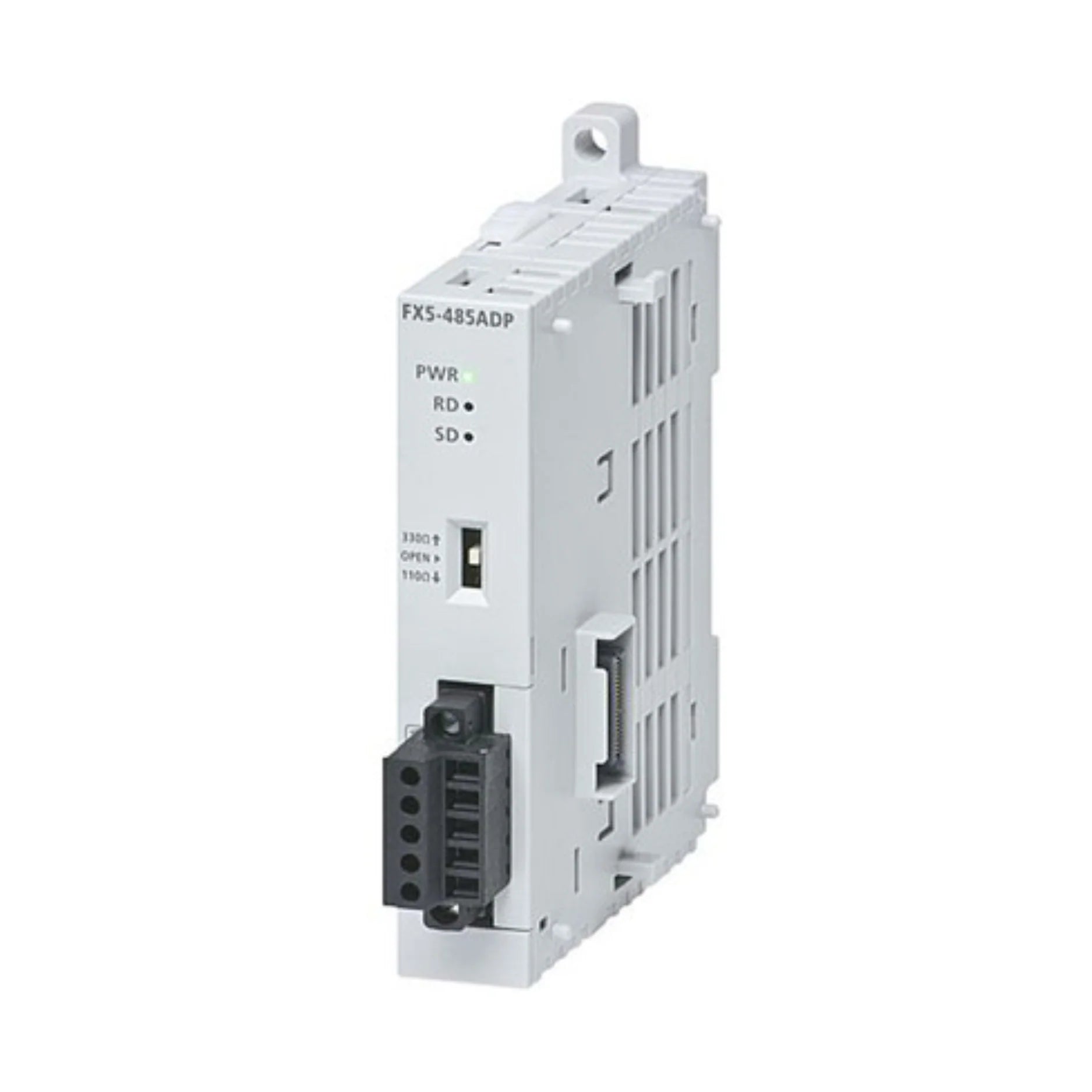

The Mitsubishi Electric FX5-485ADP is a high-performance serial communication adapter specifically engineered for the MELSEC iQ-F FX5 Series PLCs. This robust, DIN-rail mounted unit significantly enhances your PLC's capabilities by providing versatile RS-485 communication. It enables seamless data exchange with a diverse array of serial devices, leveraging both Modbus RTU and non-protocol communication methods. This makes it an indispensable component for connecting your FX5 PLC to essential industrial automation equipment, including Human Machine Interfaces (HMIs), frequency inverters, temperature controllers, and other critical systems. Designed for straightforward integration and reliable operation, the FX5-485ADP ensures efficient and expanded communication within your industrial network.

Key Features

• RS-485 Communication: Facilitates reliable half-duplex serial data transmission.
• Modbus RTU Support: Operates efficiently in both master and slave modes, offering flexible network integration.
• Non-Protocol Communication: Enables direct and custom data exchange for specialized applications.
• DIN Rail Mounting: Ensures easy and secure integration into standard control panels, optimizing space and installation time.
• Multi-Drop Capability: Connect multiple devices on a single bus, streamlining wiring and expanding network reach.
• Compact Design: Space-saving footprint allows for efficient placement within control cabinets without compromising performance.
• Integrated with GX Works3 Software: Enjoy seamless configuration and setup within Mitsubishi Electric's intuitive programming environment.

Technical Specifications

• Model Number: FX5-485ADP
• Compatible Series: MELSEC iQ-F FX5
• Interface: RS-485
• Protocols Supported: Modbus RTU (Master/Slave), Non-protocol
• Connector Type: 5-pin terminal block
• Communication Speed: Up to 115.2 kbps, ensuring fast and efficient data transfer.
• Max. Connected Slaves: Up to 32 devices (actual number may vary depending on network topology and device characteristics).
• Power Supply: Conveniently supplied directly from the base unit, simplifying wiring.
• Mounting: Standard DIN rail compatible.
• Dimensions (Approx.): 50 x 90 x 70 mm (Width x Height x Depth)
• Weight (Approx.): 150 g
• Operating Temperature: 0 °C to 55 °C, suitable for a wide range of industrial environments.
• Storage Temperature: –25 °C to 75 °C
• Certifications: CE, UL, RoHS compliant, ensuring international standards of safety and environmental responsibility.

Applications

• Modbus Communication: Ideal for interfacing with a variety of inverters and drives, enhancing motor control and process automation.
• RS-485 Interfacing: Seamlessly connects with temperature controllers for precise environmental management and process regulation.
• Data Acquisition: Efficiently gather critical data from industrial sensors, providing valuable insights for monitoring and control.
• Communication with HMIs: Enables robust communication with Human Machine Interfaces and third-party PLCs for comprehensive system oversight.
• Serial Networking: Facilitates the efficient serial networking of distributed devices, creating integrated and flexible automation systems.

Why Choose This Model?

The Mitsubishi Electric FX5-485ADP stands out as a superior choice for expanding the communication capabilities of your FX5 Series PLC. Its design prioritizes Simple Integration, allowing for effortless installation onto existing FX5 base units, minimizing downtime and setup complexities. You benefit from Versatile Connectivity, thanks to its support for multiple serial protocols, including Modbus RTU, making it adaptable to a wide range of industrial applications. Experience Reliable Communication, as this adapter is engineered for the demands of industrial serial bus networks, ensuring consistent and stable data exchange. Its Compact & Efficient design not only saves valuable space within your control cabinets but also delivers powerful communication expansion without compromise. Trust in a product Engineered by Mitsubishi Electric, a leading name in industrial automation, guaranteeing a solution designed for long-term reliability and exceptional performance in all your automation needs.

Order Now

Enhance the serial communication capabilities of your MELSEC iQ-F FX5 Series PLC today with the Mitsubishi Electric FX5-485ADP RS-485 communication adapter. This essential component is readily available and ships worldwide, ensuring you can quickly implement advanced communication solutions regardless of your location. We invite you to return to the Mitsubishi FX5 Series PLC collection for additional options and accessories within this esteemed product family. Furthermore, explore our comprehensive range of Mitsubishi MELSEC Programmable Controllers (PLC) to discover scalable automation solutions, from tried-and-true legacy systems to cutting-edge, next-generation PLCs designed for unparalleled performance, connectivity, and flexibility in modern industrial environments.
