Mitsubishi FX5-40SSC-S

Overview

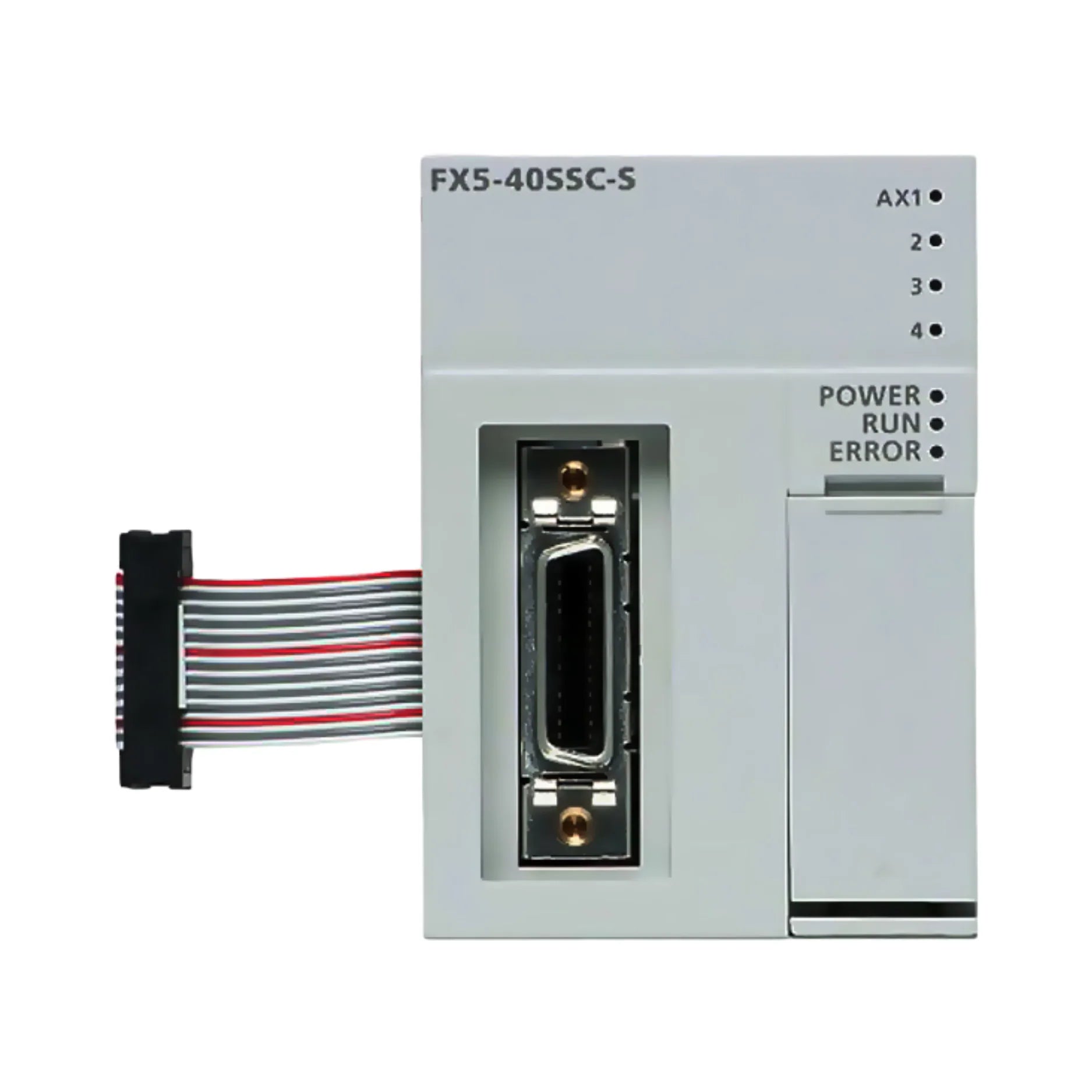

The Mitsubishi Electric FX5-40SSC-S is a cutting-edge 4-axis Simple Motion Module engineered to deliver unparalleled precision and speed for the MELSEC iQ-F Series PLCs. This sophisticated module leverages high-speed SSCNET III/H communication to provide seamless and accurate motion control, making it an indispensable component for complex automation systems. Designed to support advanced functionalities such as linear and circular interpolation, sophisticated cam control, and highly accurate mark detection, the FX5-40SSC-S sets a new benchmark for multi-axis synchronization. Its robust capabilities are ideally suited for an extensive range of industrial applications where precise coordination and high throughput are paramount, including advanced packaging lines, intricate material handling systems, and high-performance cutting machines. By integrating this module, you empower your automation infrastructure with the intelligence and agility required to meet the stringent demands of modern manufacturing.

Key Features

• Control Axes: Manages up to 4 independent axes, offering flexible control for various mechanical setups.
• Communication: Features high-speed SSCNET III/H at 150 Mbps full-duplex, ensuring rapid and reliable data exchange.
• Interpolation Functions: Supports linear interpolation for up to 4 axes and 2-axis circular interpolation, along with continuous trajectory control for smooth motion paths.
• Control Modes: Comprehensive suite of control modes including Positioning control, Speed control, Speed-torque control, Speed-position switching control, Fixed-pitch feed, Advanced synchronous control, and powerful Cam control.
• Acceleration/Deceleration Processing: Utilizes both Trapezoidal and S-curve profiles for smooth and efficient acceleration and deceleration, minimizing mechanical stress and maximizing operational efficiency.
• Compensation Functions: Incorporates Backlash compensation, Electronic gear functionality, and a Near pass function to optimize motion accuracy and system performance.
• Mark Detection Function: Facilitates high-speed registration mark detection, crucial for precise cutting, labeling, and positioning applications.
• Cam Auto-Generation: Simplifies setup by automatically generating cam data based on parameters configured via the GOT screen, reducing programming time and complexity.
• Memory: Boasts 600 positioning data points per axis, with all parameters and critical data securely saved on non-volatile flash ROM, ensuring batteryless backup and data integrity.
• Home Position Return Methods: Offers multiple flexible methods for home position return, including proximity dog detection, count-based methods, data set configuration, and scale home position signal detection, accommodating diverse operational requirements.

Technical Specifications

• Model: FX5-40SSC-S
• Series: MELSEC iQ-F
• Power Supply: 24V DC
• External Current Consumption: 0.25 A
• Dimensions (W × H × D): 50 × 90 × 83 mm
• Weight: Approximately 0.3 kg
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Certifications: UL, cUL, CE
• Environmental Compliance: RoHS compliant

Applications

• Packaging Machines: Especially effective in installations requiring sophisticated rotary knife control and synchronized product handling.
• Material Handling Systems: Ideal for applications demanding precise synchronized motion across multiple axes for conveying, sorting, and positioning.
• High-Speed Labeling and Printing Machines: Enables accurate and rapid application of labels and precise printing registration.
• Cutting Machines: Essential for operations that benefit from high-precision mark detection for accurate cutting and material processing.
• General Industrial Automation: Provides robust and reliable multi-axis control for a broad spectrum of industrial automation tasks requiring superior precision and coordination.

Why Choose This Model?

The Mitsubishi Electric FX5-40SSC-S stands out as a superior choice for advanced motion control due to its blend of high-performance features and user-centric design. Its High-Speed Communication via SSCNET III/H guarantees prompt and dependable data transfer, critical for real-time applications. The module's capacity for Advanced Motion Control allows for the execution of intricate motion profiles and flawless synchronization, pushing the boundaries of what your machinery can achieve. With User-Friendly Programming facilitated by cam auto-generation and intuitive parameter settings within GX Works3, even complex setups become manageable. Its Compact Design ensures it fits seamlessly into various installation environments without consuming excessive space. Above all, the Reliable Performance of the FX5-40SSC-S, bolstered by built-in diagnostics and real-time monitoring, significantly enhances overall system stability and operational uptime. Choosing this module means investing in a solution that delivers precision, efficiency, and steadfast reliability for your most demanding automation challenges.

Order Now

Elevate your automation capabilities with the Mitsubishi Electric FX5-40SSC-S Simple Motion Module. This exceptional component is readily available for global shipping, ensuring that cutting-edge motion control technology is accessible wherever you operate. For those looking to expand their MELSEC iQ-F Series PLC capabilities, we invite you to return to our comprehensive Mitsubishi FX5 Series PLC collection to explore additional options and complementary products within this high-performance family. Furthermore, delve into our complete inventory of Mitsubishi MELSEC Programmable Controllers (PLC) to uncover a vast array of scalable automation solutions. Our range spans from dependable legacy systems designed for enduring performance to next-generation PLCs engineered for unparalleled high performance, seamless connectivity, and ultimate flexibility, catering to every industrial automation need. Secure your FX5-40SSC-S today and take the definitive step towards optimized, precise, and reliable multi-axis control.
