Mitsubishi FX5-232ADP

Overview

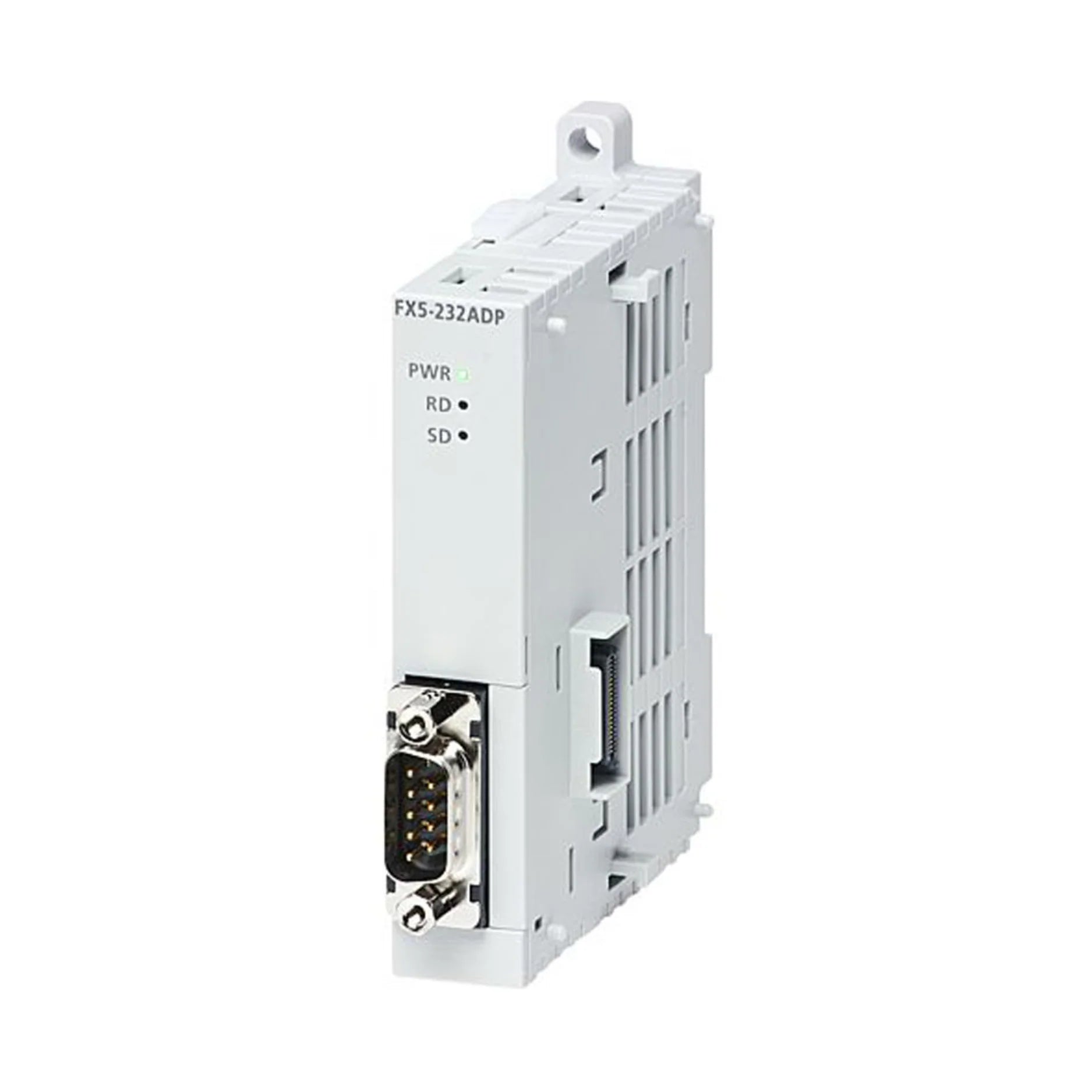

The Mitsubishi Electric FX5-232ADP is a high-performance RS-232C communication adapter module meticulously engineered to seamlessly integrate with the MELSEC iQ-F series FX5U and FX5UC Programmable Logic Controllers (PLCs). This robust module serves as a critical bridge, enabling reliable and efficient serial data exchange between your PLC system and a diverse array of external devices. From Human Machine Interfaces (HMIs) and barcode readers to printers and other RS-232C compatible equipment, the FX5-232ADP significantly enhances the connectivity and operational flexibility of your industrial automation infrastructure. Designed for industrial environments, it ensures stable and consistent data flow, crucial for critical applications.

Key Features

• RS-232C Serial Communication Port: Provides a dedicated interface for standard RS-232C serial communication.
• Broad PLC Compatibility: Specifically designed to support and integrate flawlessly with FX5U and FX5UC PLC series, ensuring optimal performance.
• Compact Side-Mountable Design: Its small footprint allows for direct, space-saving side-mounting on the main PLC unit, maintaining a streamlined control panel.
• High Baud Rate Support: Achieves communication speeds of up to 115.2 kbps, facilitating quick data transfer.
• Simplified Configuration: Utilizes dedicated instructions for straightforward and efficient setup, minimizing commissioning time.
• Full-Duplex Communication: Supports one channel of simultaneous two-way data transmission and reception, ensuring efficient data exchange.
• Status Monitoring LEDs: Equipped with LED indicators for real-time monitoring of transmission and reception activities, aiding in diagnostics.
• Flexible Mounting Options: Can be DIN-rail or panel-mounted as an integral part of the PLC assembly, offering installation versatility.

Technical Specifications

• Model Number: FX5-232ADP
• Interface: RS-232C (D-sub 9-pin connector for reliable connections)
• Transmission Speed: Variable from 300 bps to an impressive 115,200 bps, adaptable to various device requirements.
• Communication Method: Full-duplex asynchronous communication for simultaneous data flow in both directions.
• Power Supply: Conveniently supplied directly from the main PLC unit, eliminating the need for an external power source.
• Mounting: Engineered for direct side-mount integration onto FX5U/FX5UC PLCs, ensuring a secure and compact fit.
• Dimensions: Approximately 20 mm (width) x 90 mm (height) x 83 mm (depth), designed for minimal space consumption.
• Operating Temperature: Robust operating range from 0 °C to +55 °C, suitable for diverse industrial environments.
• Compatibility: Fully compatible with the renowned MELSEC iQ‑F series, ensuring seamless system integration.
• Certifications: Adheres to global standards including CE, UL, cUL, and RoHS, guaranteeing safety and environmental compliance.

Applications

The versatility of the Mitsubishi Electric FX5-232ADP makes it an indispensable component across various industrial applications:

• Human Machine Interface (HMI) Connectivity: Effortlessly connect HMI panels to your FX5U/FX5UC PLCs for intuitive operator control and data visualization.
• Barcode Scanner Integration: Enable seamless data acquisition from barcode scanners for inventory management, quality control, and tracking systems.
• Serial Printing and Data Logging: Facilitate reliable serial printing of reports and efficient data logging solutions for process monitoring and historical analysis.
• Legacy Device Interfacing: Provide a crucial interface for integrating modern PLC systems with existing legacy RS-232C devices, extending their operational lifespan.
• Machine Tool Communication: Establish robust communication links with machine tools for parameter exchange, program transfer, and status monitoring.
• PLC-to-PLC Serial Data Exchange: Enable direct and efficient serial data exchange between different PLC units within a distributed control system.

Why Choose This Model?

The Mitsubishi Electric FX5-232ADP stands out as a superior choice for expanding the communication capabilities of your MELSEC iQ-F system:

• Enhanced Serial Connectivity: Unlocks a wide range of serial communication possibilities for your FX5U/FX5UC PLCs, broadening system integration options.
• User-Friendly Configuration: Built-in software tools simplify the configuration process, reducing setup time and potential errors.
• Seamless System Integration: Its compact design and dedicated compatibility ensure a perfect and unobtrusive fit within the iQ‑F series ecosystem.
• Cost-Effective Legacy Solution: Offers an ideal and efficient solution for integrating and prolonging the utility of legacy RS-232C devices.
• Unmatched Industrial Reliability: Backed by Mitsubishi Electric's reputation for industrial-grade reliability, ensuring long-term stable performance in demanding environments.
• Global Compliance: With multiple international certifications, this module meets stringent safety and quality standards, allowing for worldwide deployment.

Order Now

Elevate the connectivity and performance of your industrial automation system. The Mitsubishi Electric FX5-232ADP communication adapter is readily available and ships worldwide, ensuring you can enhance your operations regardless of your location. We invite you to explore our comprehensive Mitsubishi FX5 Series PLC collection for additional modules and solutions within this advanced family. Furthermore, discover our full range of Mitsubishi MELSEC Programmable Controllers (PLC) to find scalable automation solutions tailored to your needs, encompassing everything from robust legacy systems to cutting-edge, next-generation PLCs engineered for high performance, unparalleled connectivity, and ultimate flexibility.
