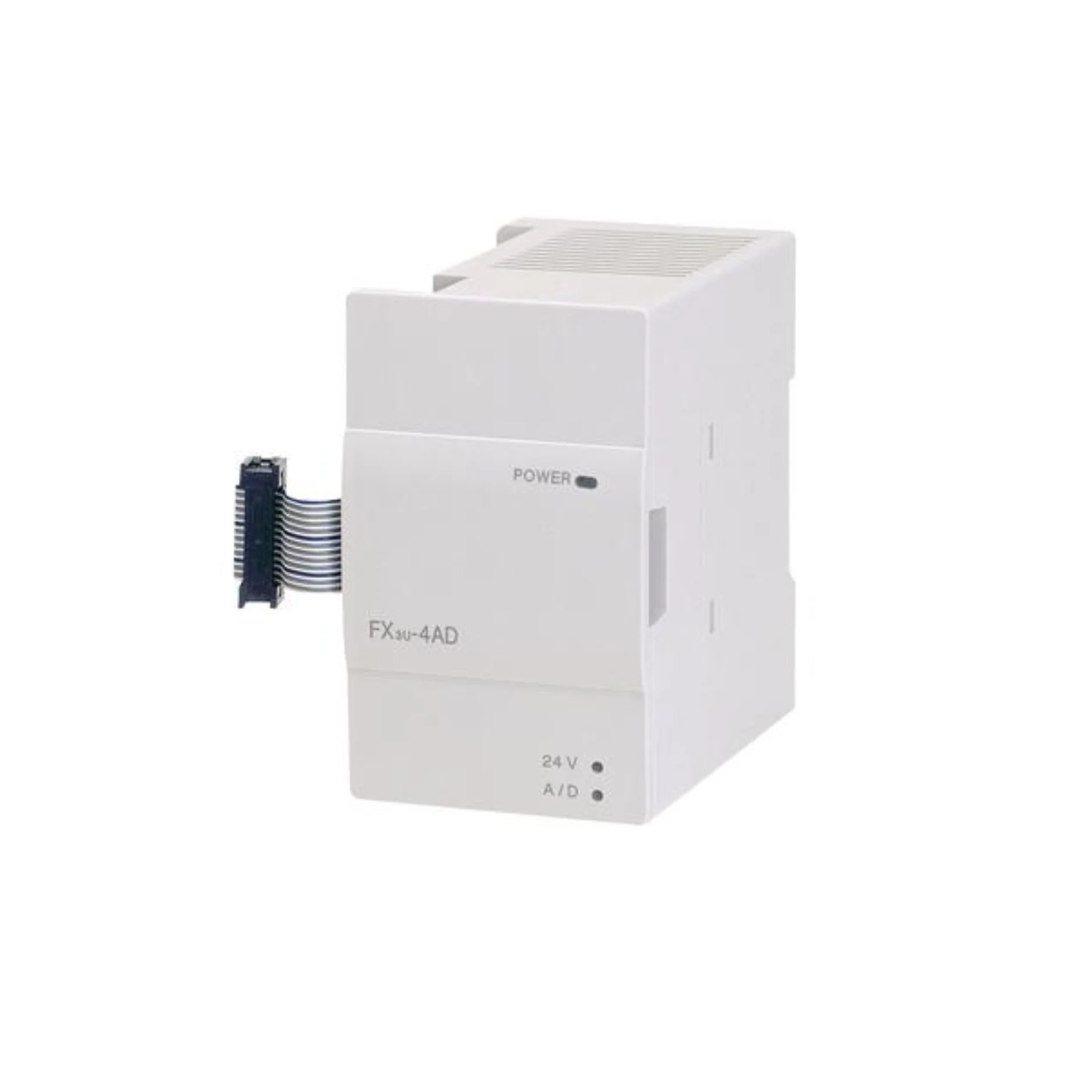

Mitsubishi FX3U-4AD

Overview

Elevate your industrial automation capabilities with the Mitsubishi Electric FX3U-4AD, a high-precision 4-channel analog input module meticulously engineered for seamless integration with MELSEC FX3U Series PLCs. This robust module is your gateway to accurate and reliable analog signal acquisition, accommodating both voltage and current sources with exceptional clarity. Boasting a 12-bit resolution, the FX3U-4AD expertly handles 0–10V and 4–20mA inputs, making it an indispensable component for monitoring an extensive array of sensors and instrumentation within demanding industrial environments. Its compact design belies its powerful performance, offering a streamlined solution for critical data collection.

Key Features

• Quad-Channel Precision: Equipped with 4 independent analog input channels for comprehensive data acquisition.
• Versatile Input Compatibility: Supports industry-standard 0–10V DC and 4–20mA DC input types, ensuring broad sensor compatibility.
• High-Resolution Conversion: Delivers superior data accuracy with a 12-bit analog-to-digital conversion resolution, capturing fine signal variations.
• Flexible Configuration: Each channel can be independently configured for either voltage or current mode, providing adaptability for diverse applications.
• Effortless Installation: Designed for convenient DIN rail mounting, simplifying integration into existing control cabinets.
• Instant Status Monitoring: Integrated LED indicators offer immediate visual feedback on channel status, aiding in diagnostics and operation.
• Unwavering Accuracy: Guarantees reliable and precise data input crucial for optimal process control and system performance.

Technical Specifications

• Model: FX3U-4AD
• Series Compatibility: Exclusively designed for the MELSEC FX3U Series Programmable Logic Controllers.
• Voltage Input Range: 0–10V DC with a high input impedance of 200kΩ, minimizing sensor loading.
• Current Input Range: 4–20mA DC, featuring a robust 250Ω input impedance.
• Conversion Speed: Rapid analog-to-digital conversion at approximately 2 milliseconds per channel, ensuring real-time data capture.
• Operating Temperature: Engineered for reliability within a 0°C to 55°C operating range.
• Power Supply: Efficiently powered directly from the connected FX3U main unit, streamlining wiring.
• Weight: Lightweight design at approximately 0.2 kg (0.44 lbs), facilitating easy handling and installation.
• Certifications: Conforms to CE and UL standards, guaranteeing compliance and safety.

Applications

The Mitsubishi Electric FX3U-4AD is a versatile module perfectly suited for a wide array of industrial applications requiring precise analog data acquisition, including:

• Accurate temperature and pressure monitoring in critical processes.
• Integration with flow and level sensors for comprehensive process oversight.
• General industrial data acquisition systems where reliability is paramount.
• Environmental monitoring systems demanding high-fidelity sensor input.
• Enhancing factory automation systems with precise feedback and control capabilities.

Why Choose This Model?

The Mitsubishi Electric FX3U-4AD stands out as a superior choice for your industrial automation needs due to its exceptional features and proven reliability:

• Precision Input Module: Experience unparalleled accuracy in analog signal capture, crucial for critical control applications.
• Dual Signal Support: Its ability to accept both voltage and current input types offers unmatched flexibility and compatibility with a broad spectrum of industrial sensors.
• Compact and Reliable: Designed for an optimized footprint and built to Mitsubishi Electric's exacting standards, ensuring long-term operational stability in challenging environments.
• Seamless Integration: Enjoy effortless setup and operation thanks to its direct compatibility with FX3U PLCs, minimizing installation time and complexity.

Order Now

Equip your industrial systems with the precision and reliability of the Mitsubishi Electric FX3U-4AD 4-Channel Analog Input Module. This essential component for enhanced monitoring and control is currently available and ready for immediate shipment to optimize your operations.

For further expansion of your automation infrastructure, explore our selection of Mitsubishi FX3 Series PLCs, including high-performance compact controllers such as the FX3U, FX3UC, FX3G, and FX3S models. Discover the full potential of Mitsubishi MELSEC Programmable Controllers (PLC) to find scalable automation solutions tailored for advanced machine control, sophisticated motion applications, robust networking, and diverse industrial requirements.
