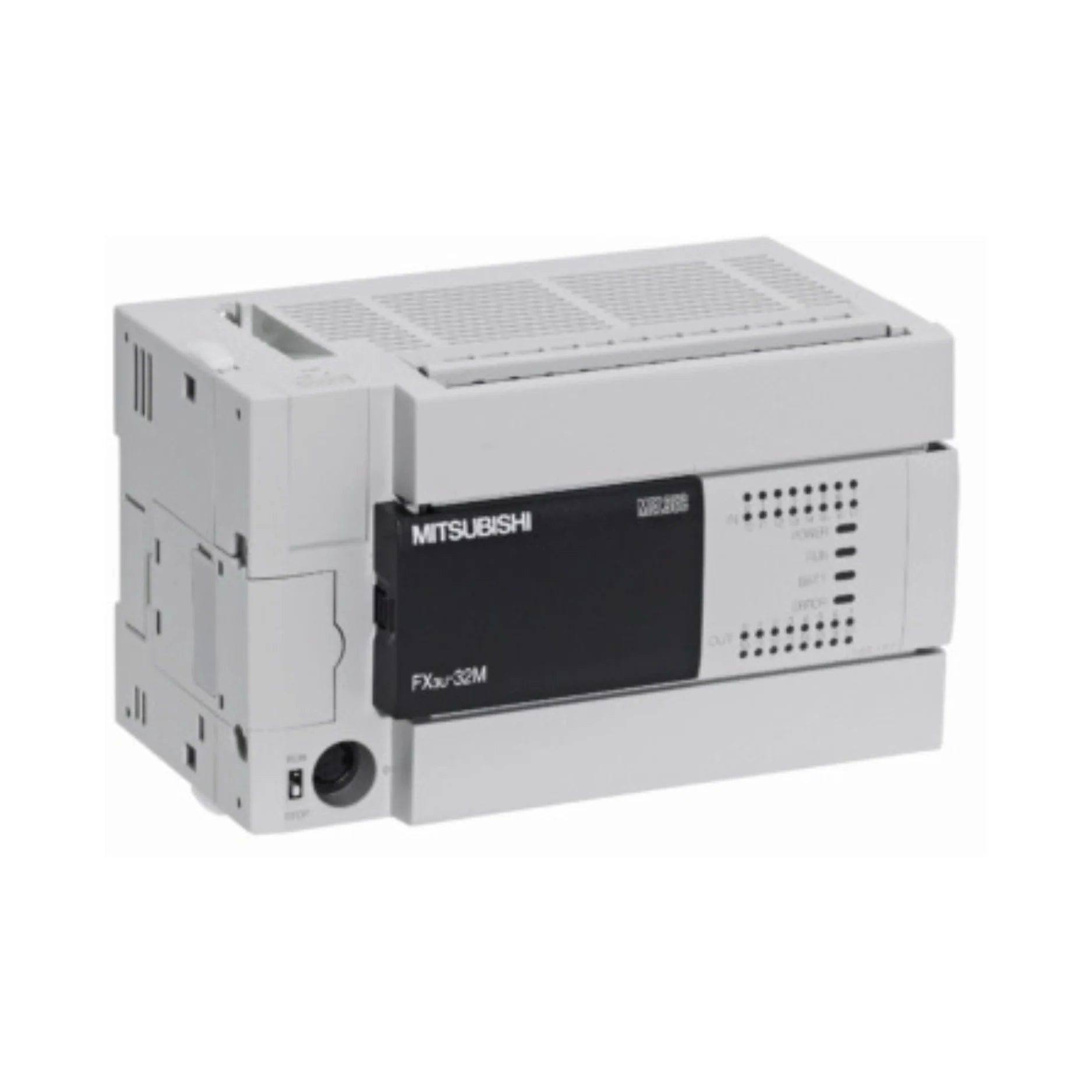

Mitsubishi FX3U-32MT/DSS

Overview

The Mitsubishi Electric FX3U-32MT/DSS is a pinnacle of compact automation, a versatile Programmable Logic Controller (PLC) engineered within the renowned MELSEC-F FX3U Series. This unit is meticulously designed for environments demanding high-speed processing and adaptable expansion capabilities. With a configuration of 16 precision digital inputs and 16 robust transistor outputs (source type), it is perfectly equipped to manage and optimize a vast array of industrial automation applications. Operating on a reliable 24V DC power supply and boasting a substantial 64K steps of program memory, the FX3U-32MT/DSS stands as an ideal solution for tackling even the most intricate and demanding control tasks in modern industrial settings.

Key Features

• Integrated I/O: Seamlessly incorporates 16 digital inputs (24V DC sink/source compatible) and 16 transistor outputs (source type) for comprehensive control.
• Efficient Power Supply: Powered by a standard 24V DC supply, ensuring stable and consistent operation.
• Ample Program Memory: Features 64K steps of battery-backed RAM, providing secure and persistent program storage.
• Ultra-Fast Processing: Achieves a remarkable processing speed of 0.065 μs per basic instruction, guaranteeing rapid system response.
• Extensive Expansion Capability: Designed for scalability, allowing expansion up to 384 I/O points with the integration of additional modules.
• Versatile Communication Ports: Equipped with a built-in RS-422 port, with optional support for USB, RS-232C, and RS-485 via dedicated expansion boards, facilitating diverse connectivity.
• Flexible Mounting: Offers convenience with both DIN rail and panel mount options, adapting to various installation requirements.
• Integrated Real-Time Clock: Enhances scheduling and time-sensitive operations with an onboard real-time clock.
• Robust Protection Rating: Boasts an IP10 (open type) protection rating, ensuring reliability in industrial environments.

Technical Specifications

• Model: FX3U-32MT/DSS
• Series: MELSEC-F FX3U
• Input Voltage Range: 20.4–28.8V DC
• Power Consumption: 30W
• Dimensions (W × H × D): 150 × 90 × 86 mm
• Weight: Approximately 0.65 kg
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Certifications: CE, UL, cUL, UKCA
• Environmental Compliance: RoHS compliant

Applications

The Mitsubishi Electric FX3U-32MT/DSS is an indispensable component across a spectrum of industrial applications, providing precise and reliable control:

• Manufacturing Automation: Optimizing production lines for efficiency and reduced downtime.
• Process Control Systems: Ensuring accurate and consistent control in various industrial processes.
• Building Management Systems: Managing environmental controls, security, and energy consumption in commercial and industrial buildings.
• Material Handling and Logistics: Streamlining conveyor systems, robotic sorting, and inventory management.
• Energy Management Systems: Monitoring and controlling energy usage for improved efficiency and cost savings.

Why Choose This Model?

The Mitsubishi Electric FX3U-32MT/DSS stands out as a superior choice for your automation needs due to its blend of performance and reliability:

• High-Speed Processing: With an exceptional processing speed of 0.065 μs per basic instruction, this PLC ensures instantaneous control responses, critical for time-sensitive applications.
• Flexible Expansion: Its modular design supports a wide array of expansion modules, allowing for enhanced I/O capabilities, analog control, and diverse communication options, providing future-proof adaptability.
• Integrated Features for Reliability: The inclusion of a real-time clock and battery-backed memory significantly boosts the system's reliability, ensuring consistent operation and data integrity even during power interruptions.
• Global Compliance: Adherence to international standards such as CE, UL, cUL, UKCA, and RoHS ensures that the FX3U-32MT/DSS meets stringent global safety and environmental regulations, making it suitable for worldwide deployment.
