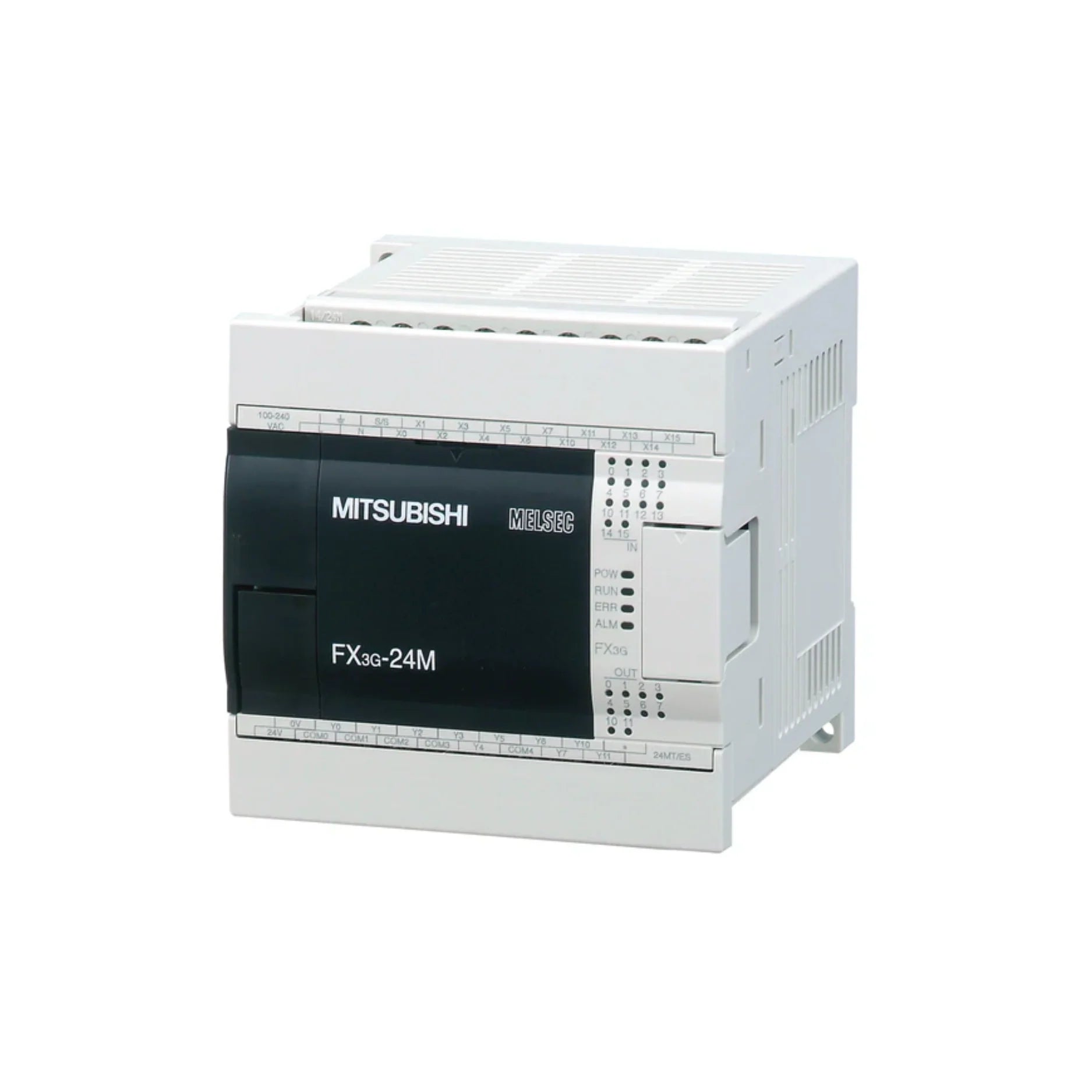

Mitsubishi FX3G‑24MR‑DS

Overview

Elevate your small to mid-sized automation systems with the Mitsubishi Electric FX3G-24MR-DS, a high-performance PLC main unit from the renowned FX3G series within the iQ-F family. This robust controller is engineered to deliver exceptional processing speed and reliability, making it an indispensable component for a wide array of industrial applications. With its compact footprint and comprehensive feature set, the FX3G-24MR-DS provides a cost-effective yet powerful solution for modern control demands. This unit seamlessly integrates 24 I/O points, comprising 12 digital inputs and 12 reliable relay outputs, all operating efficiently on a 24 V DC power supply. Its thoughtful design includes built-in high-speed counters and extensive expandability options via FX3G modules, ensuring future-proof functionality for evolving automation requirements.

Key Features

• Total I/O: 24 points (12 digital inputs, 12 relay outputs) for versatile control.
• Output Type: Durable relay contacts, each supporting up to 2 A, for robust switching.
• Power Supply: Operates efficiently on 24 V DC, compatible with standard industrial setups.
• High-Speed Performance: Features rapid instruction execution and integrated high-speed counters for demanding processes.
• Expandability: Seamlessly integrates with FX3G/FX3U I/O and specialized function modules for enhanced capabilities.
• Integrated Real-Time Clock: Provides precise timekeeping for critical applications and data logging.
• Compact Design: Space-saving form factor with a convenient front-mounted USB port for easy programming and monitoring.
• Software Compatibility: Fully supported by GX Works3 and GX Developer for intuitive programming and configuration.

Technical Specifications

• Catalog Number: FX3G‑24MR‑DS
• Inputs: 12 digital (sink/source selectable)
• Outputs: 12 relay contacts (2 A per point max)
• Input Voltage: 24 V DC ±10%
• Program Capacity: 32,000 steps
• Data Registers: 32,000 words
• Communication Interfaces: Built-in USB Device, with options for RS-485 (via adapter) and Ethernet (via module) for comprehensive connectivity.
• Mounting: Flexible DIN rail or panel mounting for diverse installation needs.
• Dimensions: 150 × 90 × 86 mm (W×H×D)
• Protection Class: IP10 (open type)
• Operating Temperature: 0 °C to +55 °C
• Certifications: CE, UL, cUL, RoHS compliant, ensuring global compliance and safety standards.

Applications

• Machine Automation and Control Panels: Ideal for managing complex machine sequences and centralizing control functions.
• Conveyor Systems and Sensor Integration: Provides precise control and data acquisition for material handling and logistics.
• Packaging, Labeling, and Assembly Machinery: Enhances efficiency and accuracy in manufacturing processes.
• OEM Systems and Small Manufacturing Lines: A reliable and scalable solution for original equipment manufacturers and compact production environments.
• Flexible Expansion in Modular Control Setups: Adapts effortlessly to growing system requirements and custom configurations.

Why Choose This Model?

The Mitsubishi Electric FX3G-24MR-DS stands out as a superior choice for modern automation challenges due to its compelling blend of performance, flexibility, and robust design. This model expertly combines a highly compact form factor with the unwavering reliability of relay output performance, making it suitable for space-constrained applications without compromising power. Its fast execution capabilities are further amplified by high-speed timers and counters, ensuring precision and responsiveness in critical operations. The FX3G-24MR-DS offers unparalleled flexibility through its extensive expansion options and seamless network integration, allowing it to grow with your operational needs. With built-in USB connectivity and optional Ethernet support, it provides modern, versatile connection possibilities for programming, monitoring, and data exchange. Ultimately, choosing the FX3G-24MR-DS means investing in the renowned Mitsubishi Electric reliability, a hallmark of the iQ-F performance class, guaranteeing long-term stability and efficiency for your automation systems.

Order Now

Secure the Mitsubishi Electric FX3G-24MR-DS PLC main unit today and advance your automation capabilities. This high-demand product is readily available and ships worldwide, ensuring you can quickly implement this powerful controller into your systems. For more high-performance compact controllers, including FX3U, FX3UC, FX3G, and FX3S models, explore the comprehensive Mitsubishi FX3 Series PLC range. Additionally, uncover a vast selection of scalable automation solutions designed for machine control, motion, networking, and diverse industrial applications by browsing the full range of Mitsubishi MELSEC Programmable Controllers (PLC).
