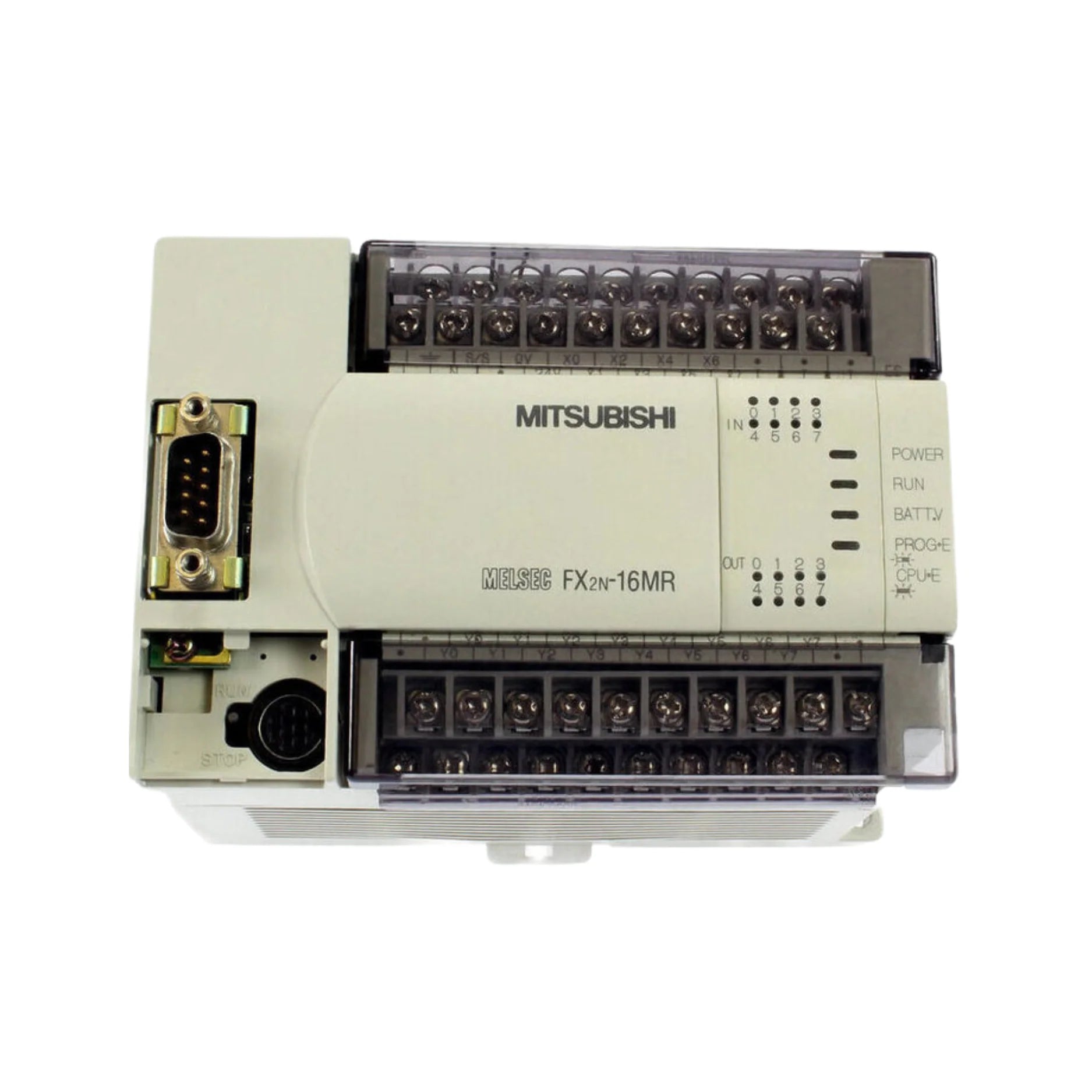

Mitsubishi FX2N-16MR

Overview

The Mitsubishi Electric FX2N-16MR is a high-performance, compact Programmable Logic Controller (PLC) from the renowned FX2N series, specifically engineered to streamline small to medium-sized automation tasks. This robust main unit integrates 16 I/O points—comprising 8 digital inputs and 8 reliable relay outputs—all powered by a stable 24V DC supply. Its intelligent design allows for seamless expansion with additional FX2N and FX0N I/O modules and specialized function modules, ensuring scalability as your system requirements evolve. The FX2N-16MR stands out as an ideal solution for applications demanding efficiency, durability, and a flexible control architecture, embodying Mitsubishi Electric's commitment to advanced industrial automation.

Key Features

• Total I/O: 16 points (8 digital inputs, 8 relay outputs) for versatile control.
• Output Type: Durable relay outputs, perfect for direct load switching.
• Power Supply: Operates efficiently on a 24V DC power source.
• Expandability: Compatible with FX2N and FX0N series expansion modules, ensuring future-proofing and adaptability.
• Program Capacity: Generous program memory supporting up to 8,000 steps for complex logic.
• Processing Performance: High-speed processing capabilities ensure quick response times and efficient operation.
• Integrated Diagnostics: Built-in diagnostic and safety functions enhance reliability and simplify troubleshooting.
• Software Compatibility: Fully compatible with GX Developer programming software for intuitive and efficient program development.

Technical Specifications

• Catalog Number: FX2N-16MR
• Inputs: 8 digital (configurable for sink/source wiring).
• Outputs: 8 relay outputs, each capable of handling up to 2 A.
• Input Voltage: 24V DC ±10% for stable operation.
• Power Consumption: Approximately 15 W, ensuring energy efficiency.
• Program Memory: 8,000 steps.
• Mounting Options: Versatile mounting on DIN rail or direct panel installation.
• Dimensions (W×H×D): 130 × 90 × 86 mm, making it suitable for compact spaces.
• Protection Class: IP10 (open type) for internal component protection.
• Certifications: Conforms to CE, UL, and cUL standards, ensuring international compliance and safety.

Applications

The Mitsubishi Electric FX2N-16MR is engineered for a wide array of industrial applications requiring precise and reliable control:

• Small Machine Control Panels: Ideal for managing the operations of individual machines with limited I/O requirements.
• Simple Automation Sequences: Perfect for automating repetitive tasks and sequential processes in manufacturing.
• Conveyor and Sensor Control: Efficiently manages material handling systems and integrates various sensor inputs.
• HVAC and Lighting Systems: Provides dependable control for building automation tasks, enhancing energy efficiency and comfort.
• OEM Systems: A preferred choice for original equipment manufacturers needing a compact, reliable, and cost-effective PLC solution within their products.

Why Choose This Model?

The Mitsubishi Electric FX2N-16MR offers a compelling combination of features that make it an outstanding choice for your automation needs:

• Reliability & Compactness: Enjoy a proven, highly reliable PLC solution designed with a compact footprint, optimizing space in control cabinets.
• Expandable & Flexible Design: Its modular design ensures that your automation system can grow and adapt to future requirements without significant overhaul.
• Direct Load Switching: Integrated relay outputs simplify wiring and enable direct control of various loads, reducing the need for additional interfacing components.
• Fast Installation & Easy Configuration: Designed for straightforward setup, significantly cutting down installation time and effort.
• Proven Mitsubishi Quality: Benefit from Mitsubishi Electric's reputation for producing high-quality, durable, and long-lasting industrial automation components, ensuring peace of mind for small to critical control tasks.

Order Now

Elevate your automation capabilities with the Mitsubishi Electric FX2N-16MR PLC. This versatile and reliable controller is available and ready for worldwide shipment.
