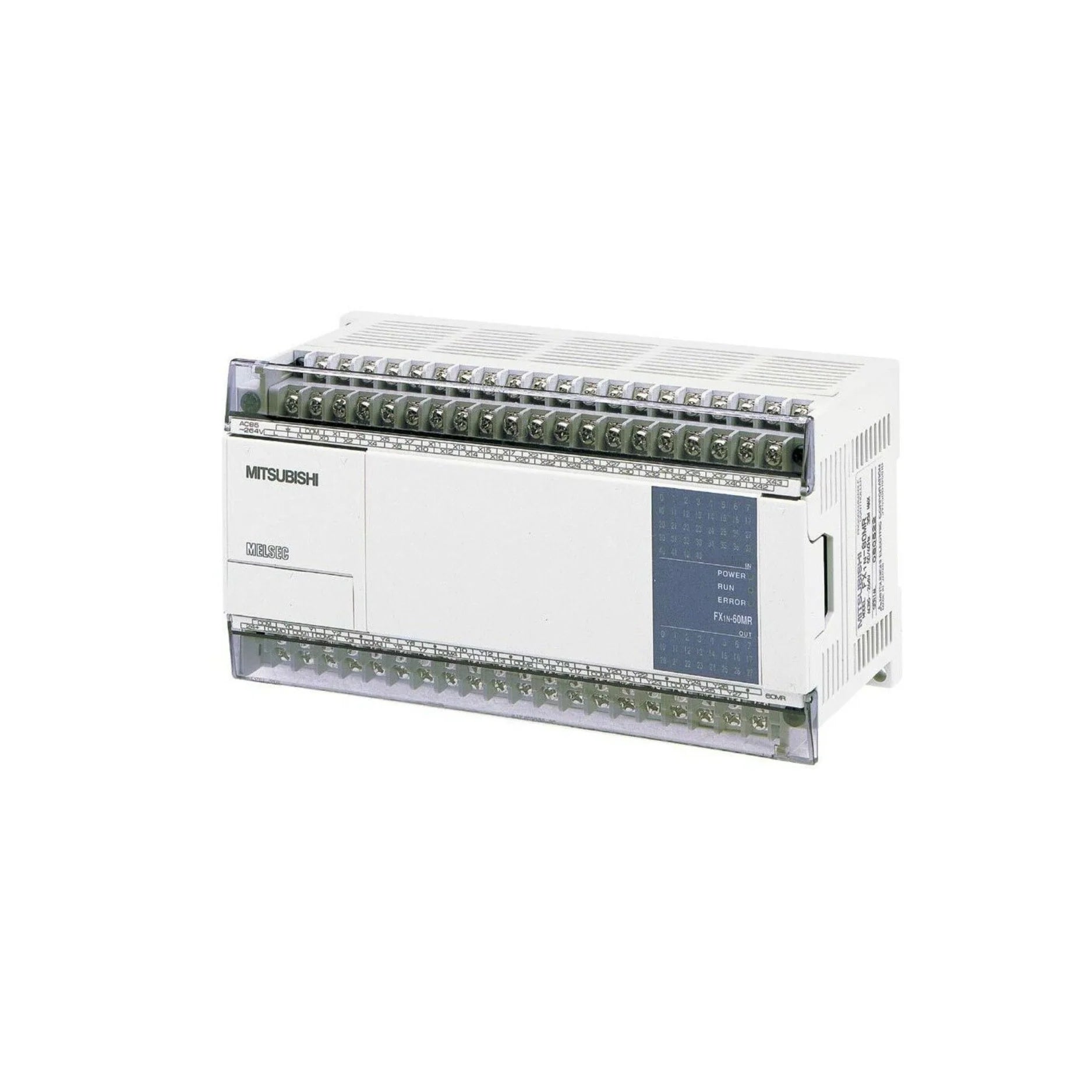

Mitsubishi FX1N-60MR-001

Overview

The Mitsubishi Electric FX1N-60MR-001 is a foundational Programmable Logic Controller (PLC) main unit from the highly regarded FX1N series, meticulously engineered for robust and efficient industrial automation. This compact yet powerful PLC provides a comprehensive set of 60 I/O points, precisely configured with 36 digital inputs and 24 reliable relay outputs, making it an ideal solution for a diverse array of control applications. Designed for seamless integration into existing systems, it operates flawlessly on a versatile 100–240V AC power supply, ensuring broad compatibility across various industrial environments. With an impressive program capacity of up to 8,000 steps, the FX1N-60MR-001 is capable of managing complex control sequences, while its DIN rail mountable form factor optimizes space utilization within industrial control panels, which is crucial in space-constrained settings. This unit embodies Mitsubishi Electric's commitment to delivering reliable performance, precision, and longevity, making it a cornerstone for a wide range of automation tasks requiring consistent and dependable operation.

Key Features

• Series: FX1N – A well-established and trusted series known for its reliability and performance in industrial automation.
• Input Voltage: 100–240V AC – Offers broad compatibility with international power standards.
• I/O Points: 60 (36 Digital Inputs, 24 Digital Outputs) – Provides ample connectivity for a variety of sensors and actuators.
• Output Type: Relay – Ideal for directly switching higher current loads and providing galvanic isolation.
• Mounting: DIN Rail – Ensures easy and secure installation within standard industrial enclosures.
• Program Capacity: 8K Steps – Generous memory for implementing intricate control logic.
• Instruction Speed: 0.08 μs (Basic Instruction) – Facilitates rapid program execution for time-critical applications.
• Integrated Power Supply: Yes – Simplifies system design and reduces external component requirements.
• Design: Compact, Fanless – Promotes silent operation, reduces maintenance, and is suitable for dusty environments.
• Expansion Options: Supports FX1N and FX2N Expansion Modules – Allows for future scalability and increased I/O or functionality.
• Memory Backup: EEPROM – Ensures program retention without the need for battery backup, enhancing reliability.

Technical Specifications

• Catalog Number: FX1N-60MR-001
• Input Voltage: 100–240V AC
• Power Consumption: Approx. 35W
• Digital Inputs: 36
• Digital Outputs: 24 (Relay Type)
• Program Memory: 8,000 steps
• Instruction Speed: 0.08 μs (Basic Instruction)
• Mounting Type: DIN Rail
• Operating Temperature: 0°C to 55°C
• Dimensions: Approx. 220 x 90 x 87 mm
• Weight: ≈ 1.1 kg
• Certifications: CE, UL, cUL
• Interfaces: Optional modules for RS-232, RS-485, and Ethernet connectivity.

Applications

The Mitsubishi Electric FX1N-60MR-001 PLC is a versatile and robust control solution engineered to excel in a multitude of industrial automation scenarios. Its high-speed processing and comprehensive I/O capabilities make it particularly well-suited for:

• Assembly and Packaging Lines: Precisely controlling conveyor movements, robotic arms, and packaging machinery for optimized throughput and reduced errors.
• OEM Machine Control: Integrating seamlessly into original equipment manufacturer (OEM) machines, providing reliable and efficient control for various machine functions.
• Conveyor Systems: Managing complex material handling operations, including sorting, diverting, and accumulating products with accuracy and speed.
• Small-Scale SCADA Integration: Providing the control foundation for supervisory control and data acquisition (SCADA) systems in smaller industrial settings, enabling effective monitoring and control.
• General-Purpose Automation with Flexible I/O: Adapting to a wide array of automation challenges where flexible digital input and relay output control is paramount, from building automation to specialized process control.

Why Choose This Model?

The Mitsubishi Electric FX1N-60MR-001 stands out as an exceptional choice for industrial automation due to its strategic blend of performance, reliability, and expandability:

• Efficient I/O Management: With 60 I/O points expertly integrated into a compact unit, this PLC offers substantial control capabilities without demanding excessive panel space. This efficiency is critical for modern industrial designs where footprint optimization is key.
• Versatile Relay Outputs: The inclusion of 24 relay outputs provides superb versatility, making this unit ideally suited for directly switching a wide range of industrial loads. This capability simplifies wiring and improves overall system reliability by offering robust isolation.
• High-Speed Processing: An impressive instruction speed of 0.08 μs for basic instructions ensures near real-time response to process changes. This rapid execution is crucial for applications that require precise timing and immediate feedback, contributing to enhanced system performance and safety.
• Expandable Platform: Designed for future growth, the FX1N-60MR-001 is fully compatible with both FX1N and FX2N expansion modules. This expandability allows users to easily scale their systems by adding more I/O, analog capabilities, or specialized communication modules as automation requirements evolve, protecting your investment.
• Reliable Performance: As a product from Mitsubishi Electric, a global leader in automation, the FX1N-60MR-001 inherently carries the hallmark of trusted quality. Its robust construction and proven design ensure stable, long-term operations even in demanding industrial environments, minimizing downtime and maximizing productivity.

Order Now

Elevate your industrial control systems with the Mitsubishi Electric FX1N-60MR-001 PLC main unit. This robust and highly efficient controller is readily available and poised to optimize your operations with its reliable performance and versatile features. We offer worldwide shipping, ensuring that this essential component for reliable and cost-effective automation in compact spaces can reach your facility, wherever you are. For a broader perspective on advanced control solutions and detailed technical insights, we invite you to explore our comprehensive range of Mitsubishi FX1N Series PLCs. Our complete collection is specifically designed to meet the rigorous demands of industrial environments, providing reliable and efficient automation control across various applications. Do not hesitate to integrate the power and precision of Mitsubishi Electric into your next project.
