Mitsubishi FX1N-24MT-001

Overview

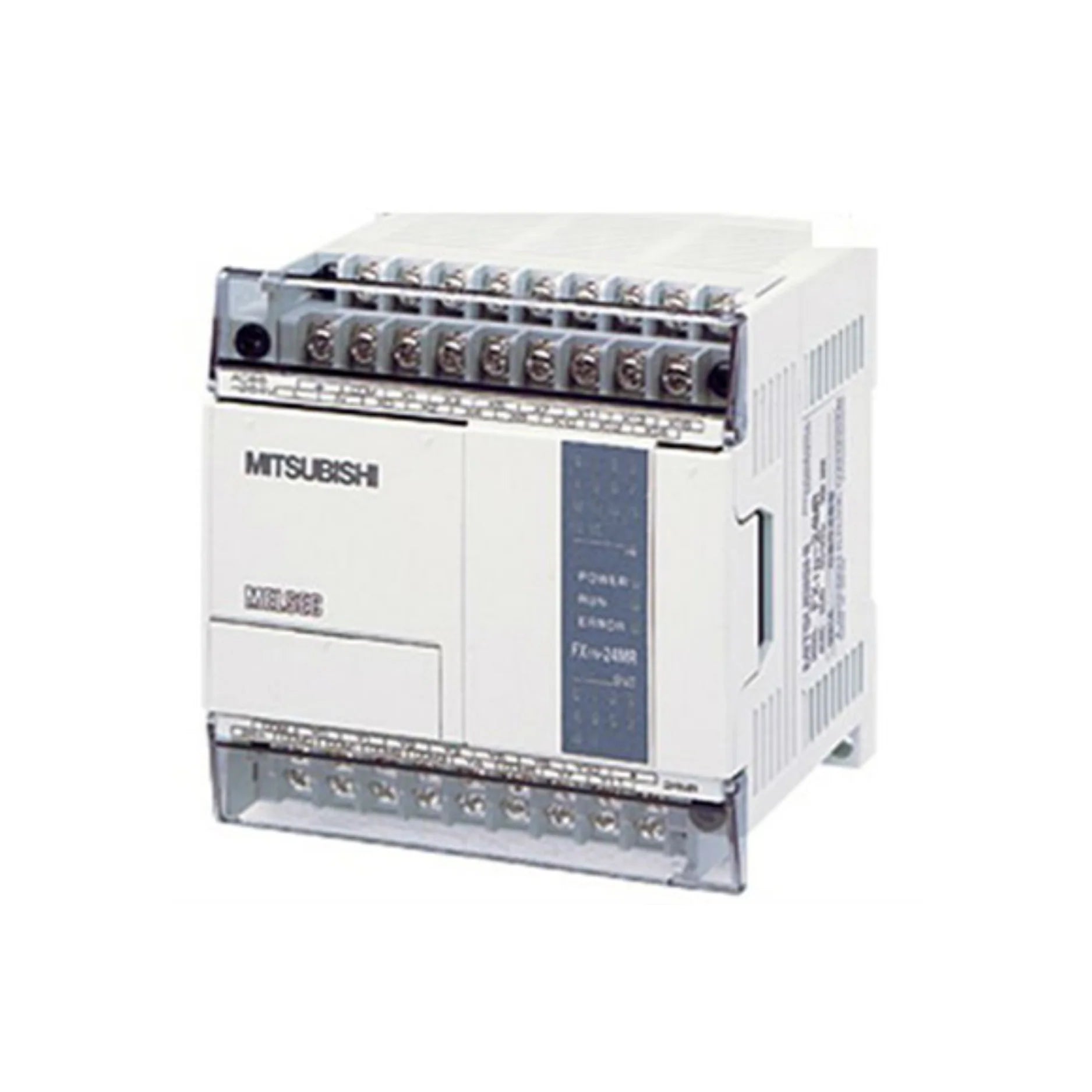

The Mitsubishi Electric FX1N-24MT-001 is a highly efficient and compact Programmable Logic Controller (PLC) main unit, meticulously engineered to deliver robust control for a wide array of automation applications. This versatile PLC boasts 24 total I/O points, strategically configured with 14 digital inputs and 10 high-performance transistor (sourcing) outputs. Designed with an emphasis on both cost-effectiveness and uncompromising reliability, the FX1N-24MT-001 stands out as an ideal solution for small to medium-scale automation tasks. Its architecture supports rapid logic execution and offers exceptional flexibility for future expansion, making it a cornerstone for modern industrial control systems where space and performance are paramount.

As a key component within the renowned Mitsubishi Electric FX1N Series, this model embodies the brand's commitment to innovation and quality. It provides a powerful yet user-friendly platform for engineers and technicians to implement precise control strategies, ensuring optimal operational efficiency and improved system responsiveness. Whether you're looking to upgrade existing machinery or design new automated processes, the FX1N-24MT-001 offers a compelling blend of features and capabilities.

Key Features

• Integrated I/O Configuration: Equipped with a total of 24 I/O points, comprising 14 digital inputs and 10 transistor (sourcing type) outputs, providing comprehensive control capabilities.
• Optimal Power Supply: Operates efficiently on a standard 24 VDC power supply, ensuring compatibility with most industrial power infrastructures.
• High-Speed Processing: Features integrated high-speed counters and timers, facilitating precise control over time-sensitive operations and critical sequences.
• Generous Program Capacity: Offers an 8k step program memory, allowing for the development and storage of sophisticated automation programs.
• Seamless Expandability: Designed for future-proofing, with options for expansion through additional I/O and communication modules, adapting to evolving system requirements.
• Real-Time Clock Support: Enhances scheduling and data logging capabilities with optional real-time clock support via an external adapter.
• Space-Saving Design: Its compact form factor is specifically engineered for installation in confined control panels, maximizing valuable industrial real estate.
• Software Compatibility: Fully compatible with Mitsubishi Electric's GX Developer software, offering an intuitive and powerful environment for programming, monitoring, and debugging.

Technical Specifications

• Part Number: FX1N-24MT-001
• Manufacturer: Mitsubishi Electric
• Series: FX1N
• Input Points: 14 (24 VDC sink/source)
• Output Points: 10 (transistor sourcing, 0.5 A max per point)
• Power Supply: 24 VDC
• Program Memory: 8,000 steps
• Communication: Optional RS-232, RS-485, or RS-422 interfaces for versatile connectivity.
• Mounting: Flexible mounting options include standard DIN rail or secure screw mount for easy integration.
• Operating Temperature: Designed to perform reliably in a broad operating temperature range of 0 °C to +55 °C.
• Certifications: Complies with major international standards, holding CE, UL, and cUL certifications, ensuring global applicability and safety.

Applications

The Mitsubishi Electric FX1N-24MT-001 PLC is a versatile control solution perfectly suited for a diverse range of industrial automation applications, including but not limited to:

• Compact Machinery Control: Ideal for managing the operations of smaller machines and equipment where precise and responsive control is essential.
• Conveyor and Sorter Systems: Enhances the efficiency and accuracy of material handling systems, optimizing logistics and throughput.
• Packaging Equipment: Provides reliable control for various packaging machinery, ensuring consistent and high-quality production.
• OEM Automation Panels: A preferred choice for Original Equipment Manufacturers (OEMs) seeking to embed robust and compact control within their systems.
• Small-Scale Process Control: Facilitates effective monitoring and regulation of modest industrial processes, maintaining stability and operational integrity.

Why Choose This Model?

Opting for the Mitsubishi Electric FX1N-24MT-001 PLC means investing in a control solution that offers unparalleled value and performance. This model stands out for several compelling reasons:

• Compact & Economical: Provides a powerful control solution without the need for extensive space or a prohibitive budget, making it an excellent investment for various applications.
• Industrial-Grade Reliability: Engineered by Mitsubishi Electric, a global leader in automation, ensuring consistent and dependable performance even in demanding industrial environments.
• Simplified Installation & Programming: Designed for ease of use, reducing setup time and simplifying the programming process, allowing for quicker deployment and system optimization.
• Future-Proof Expandability: Its inherent expandability ensures that your automation system can grow and adapt to future operational demands without requiring a complete overhaul.
• Global Support: Backed by Mitsubishi Electric's extensive global support network, providing peace of mind through readily available technical assistance and service.

Order Now

Elevate your automation capabilities with the Mitsubishi Electric FX1N-24MT-001 PLC. This essential component for efficient and reliable control is readily available and ships worldwide, ensuring you can enhance your systems regardless of your location.

For a complete exploration of additional options, detailed technical documentation, and to discover how Mitsubishi Electric can further optimize your industrial processes, we invite you to browse our comprehensive range of Mitsubishi FX1N Series PLCs. These advanced controllers are meticulously designed to deliver unmatched reliability and efficiency across a spectrum of industrial automation environments. Take the next step towards superior control and efficiency today!

Explore our full selection of Mitsubishi MELSEC Programmable Controllers (PLC) to find the perfect solution for your specific automation needs.
