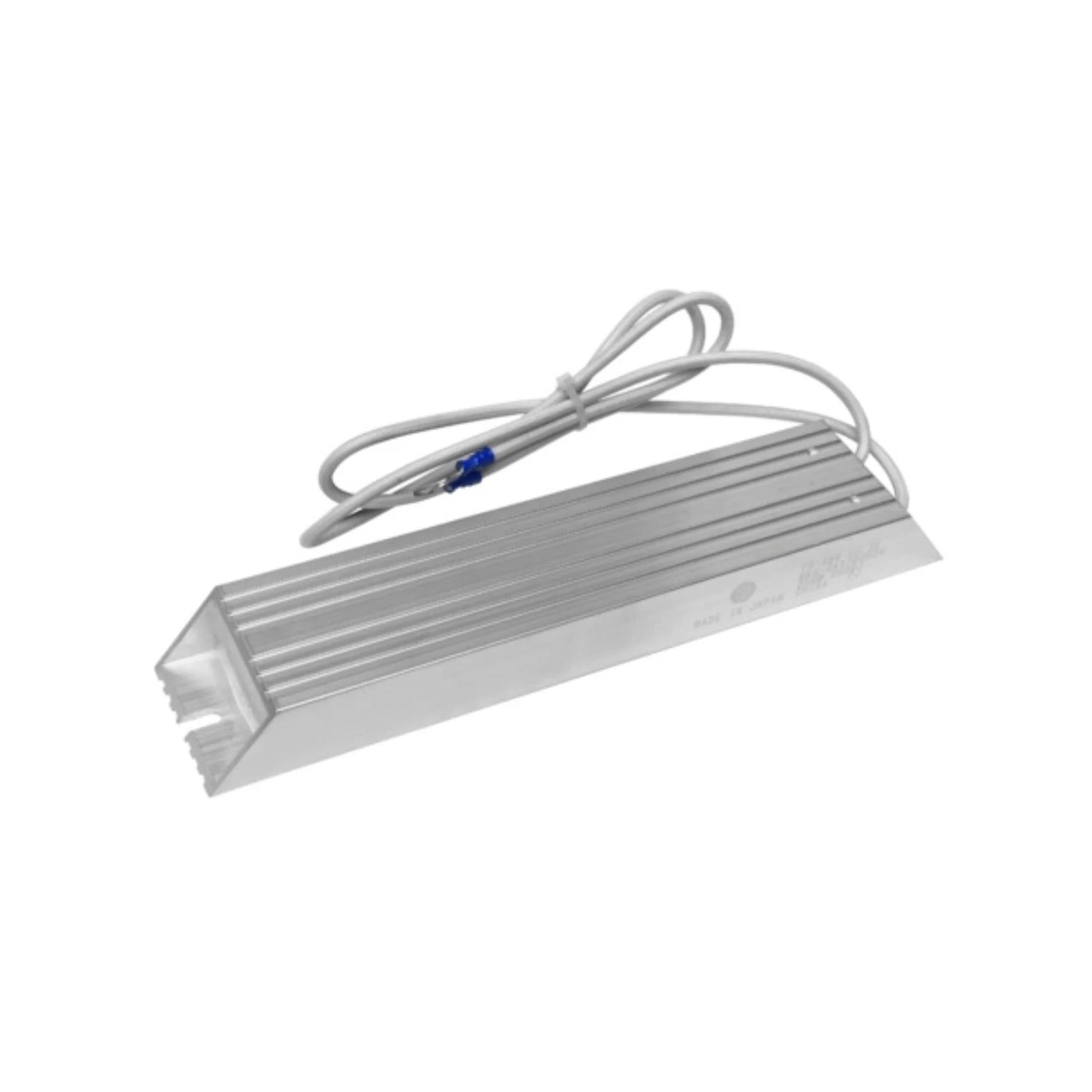

Mitsubishi FR-ABR-H2.2K

Overview

The Mitsubishi Electric FR-ABR-H2.2K is a high-performance, high-duty brake resistor engineered to optimize the efficiency and longevity of 400V class inverter systems. With a robust 2.2kW rated power and a precise 250Ω resistance, this critical component effectively manages and dissipates regenerative energy generated during motor deceleration. This prevents harmful overvoltage conditions, safeguarding both your inverter and motor from potential damage, thus ensuring uninterrupted operation and extending equipment lifespan. Its compact and robust design makes it an ideal solution for a wide range of industrial applications, adhering to stringent international compliance standards for reliability and safety. Experience superior dynamic braking performance and protect your valuable industrial machinery with this advanced Mitsubishi Electric solution.

Key Features

• Rated Power: 2.2kW (equivalent to 3HP) for effective energy handling.
• Resistance: Precisely 250Ω to ensure optimal regenerative energy dissipation.
• Voltage Class: Specifically designed for 400V class inverter systems.
• Duty Cycle: 10% ED (Electrical Duty) for high-duty applications, ensuring reliable performance under demanding conditions.
• Protection Class: IP00, suitable for integration within protected enclosures.
• Mounting: Convenient panel mount design for easy installation and integration into existing systems.
• Compliance: Fully compliant with CE, UL, cUL, and UKCA standards, ensuring global applicability and safety.
• Environmental Compliance: RoHS compliant, demonstrating a commitment to environmental responsibility.

Technical Specifications

• Model: FR-ABR-H2.2K
• Dimensions (W × H × D): 240 × 26 × 50 mm, offering a compact footprint for versatile installation.
• Weight: Approximately 0.5 kg, facilitating easy handling and mounting.
• Operating Temperature: 0°C to 55°C, ensuring stable performance in typical industrial environments.
• Storage Temperature: -25°C to 75°C, allowing for broad storage conditions without compromising integrity.

Applications

• Dynamic Braking in Inverter-Driven Motors: Essential for controlled deceleration and stopping of motors connected to inverter drives, enhancing precision and safety.
• Overvoltage Protection during Rapid Deceleration: Crucial for preventing voltage spikes that can damage sensitive inverter components, particularly in applications requiring quick stops.
• Energy Dissipation in Regenerative Systems: Efficiently converts excess kinetic energy back into heat, preventing energy buildup and maintaining system stability.
• Industrial Automation Requiring Precise Motor Control: Supports applications where accurate and repeatable motor stopping is paramount, improving process control and product quality.

Why Choose This Model?

• Efficient Energy Dissipation: The FR-ABR-H2.2K is expertly designed to prevent overvoltage by effectively dissipating regenerative energy, protecting your inverter and motor while extending their operational lifespan.
• Compact Design: Its space-saving form factor allows for flexible integration into a wide variety of installation environments, including those with limited space, without compromising performance.
• Reliable Performance: Engineered for continuous operation with a 10% duty cycle, this brake resistor delivers consistent and dependable performance even under demanding operational conditions.
• Global Compliance: With certifications including CE, UL, cUL, and UKCA, this model meets rigorous international standards for safety and environmental regulations, ensuring peace of mind for global deployment.
• Mitsubishi Electric Quality: Benefit from the renowned quality, innovation, and reliability associated with Mitsubishi Electric, a leader in industrial automation solutions.

Order Now

Enhance the performance and protect your valuable equipment with the Mitsubishi Electric FR-ABR-H2.2K High-Duty Brake Resistor. This essential component is readily available and offered for global shipping, ensuring that you can acquire this high-quality solution wherever your operations are located. Optimize your inverter systems today by ordering the FR-ABR-H2.2K and experience the benefits of superior dynamic braking and system protection.
