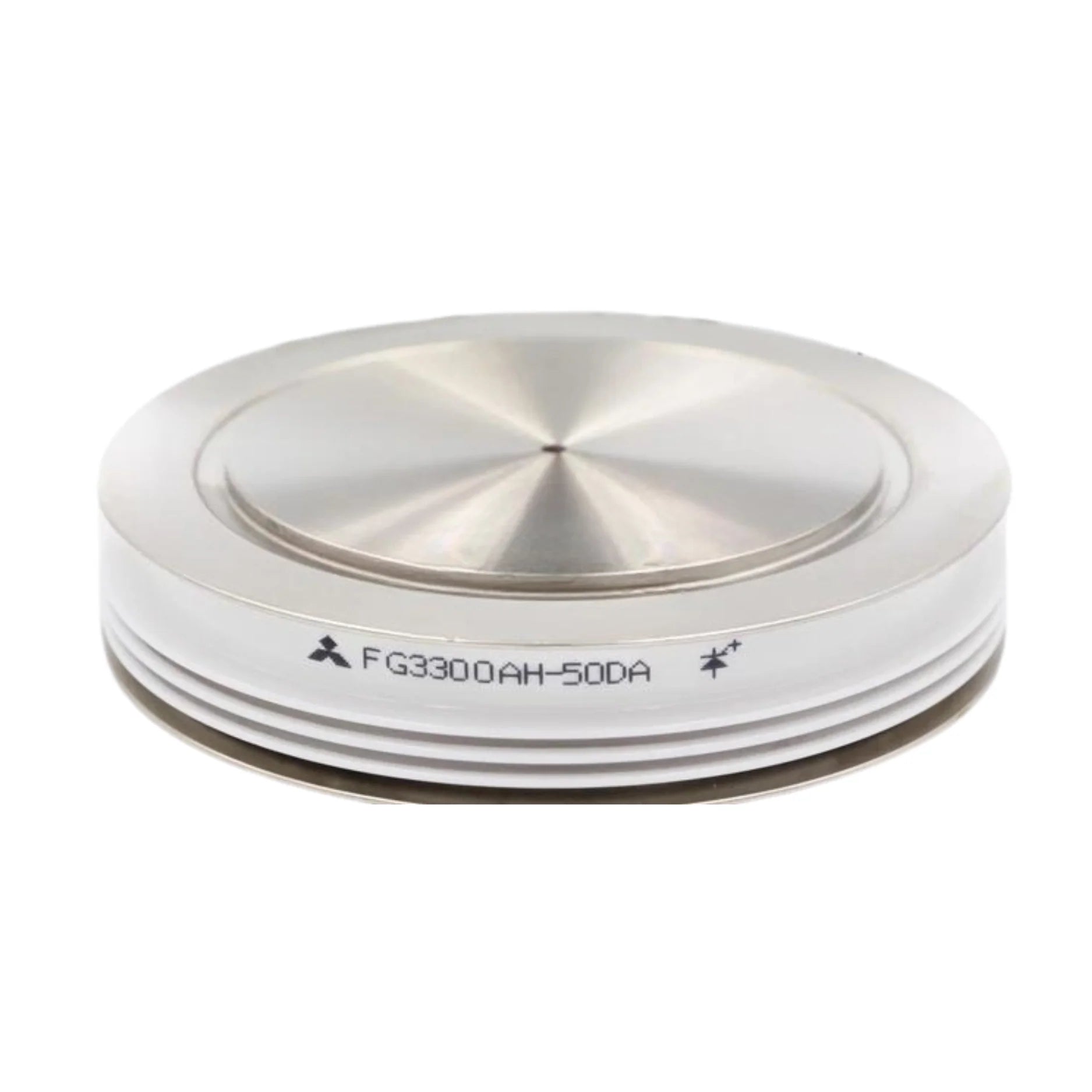

Mitsubishi FG3300AH-50DA

Overview

Experience unparalleled power handling and precise control with the Mitsubishi Electric FG3300AH-50DA GTO Thyristor. Engineered for demanding high-power switching applications, this Gate Turn-Off (GTO) thyristor delivers a robust performance with a repetitive controllable current of 3300 A and a rated voltage of 2500 V. Its innovative anode-short configuration and rugged press-pack housing ensure exceptional reliability and longevity in critical industrial and traction systems. Whether for sophisticated inverters, dynamic DC choppers, advanced induction heating, or efficient DC-to-DC converters, the FG3300AH-50DA provides the perfect blend of high surge capability, optimized gate drive power, and superior controllability. Backed by Mitsubishi Electric's renowned expertise, this component is designed to elevate the performance and efficiency of your power electronics.

Key Features

• High Voltage and Current Rating: Rated for 2500 V and 3300 A, accommodating significant power demands.
• Robust Press-Pack Structure: Ensures secure and reliable mounting in strenuous environments.
• Anode-Short Configuration: Optimized for enhanced performance in specific application types.
• Exceptional Surge Capability: Withstands high surge currents up to 24 kA, improving system resilience.
• Precise Gate Control: Offers excellent control characteristics for efficient operation.
• Wide Operating Temperature Range: Maintains performance from –40 °C to +125 °C.
• Low Gate Drive Power: Minimizes energy consumption for improved overall efficiency.

Technical Specifications

• Model: FG3300AH-50DA
• Type: Gate Turn-Off Thyristor (GTO)
• Package: Press-pack type
• Configuration: Anode-short
• VDRM/VRRM: 2500 V
• VRDC: 2000 V
• ITQRM: 3300 A
• IT(RMS): 1570 A
• IT(AV): 1000 A
• ITSM: 24,000 A (Surge Current)
• I²t: 2.4 × 10⁶ A²s
• di/dt: 500 A/µs
• VFGM: 10 V
• VRGM: 17 V
• IFGM: 100 A
• IRGM: 1100 mA
• PFGM: 400 W
• PRGM: 27 W
• PFG(AV): 100 W
• PRG(AV): 230 W
• Tj (Junction Temperature): –40 °C to +125 °C
• Tstg (Storage Temperature): –40 °C to +150 °C
• Mounting Force: 30–40 kN
• Weight: 1220 g

Applications

The Mitsubishi Electric FG3300AH-50DA GTO Thyristor is engineered for peak performance across a diverse range of high-power applications, enabling efficient and reliable operation in critical systems:

• Industrial Inverters: Essential for motor control and power conversion in heavy industrial machinery.
• DC Chopper Circuits: Provides precise voltage regulation and current control in various DC power systems.
• Induction Heaters: Facilitates high-frequency power switching for efficient heating processes.
• DC-to-DC Converters: Optimizes power conversion in systems requiring voltage step-up or step-down.
• High-Speed Traction Converters: Crucial for the efficient and dynamic control of electric trains and other traction systems.
• Pulse Power Systems: Delivers controlled high-power pulses for specialized industrial and research applications.

Why Choose This Model?

Selecting the Mitsubishi Electric FG3300AH-50DA GTO Thyristor means investing in reliability, efficiency, and cutting-edge technology for your power electronics:

• Superior Switching Capacity: Handles extreme currents and voltages with remarkable ease, ensuring stable operation even under strenuous conditions.
• Robust and Durable Design: The press-pack construction offers inherent mechanical stability and excellent thermal dissipation, making it ideal for harsh industrial environments where reliability is paramount.
• Optimized Energy Efficiency: Designed to minimize power losses, contributing to overall system efficiency and reduced operational costs.
• Precise Control: Benefit from excellent gate control characteristics that allow for accurate and responsive power management, crucial for sensitive applications.
• Trusted Mitsubishi Electric Quality: Leverage the benefits of Mitsubishi Electric's long-standing reputation for engineering excellence and innovation in power semiconductor technology. This model embodies decades of development in GTO (Gate Turn-Off) thyristor technology, ensuring a product that is both high-performing and dependable.
