Mitsubishi CM150DY-24A

Overview

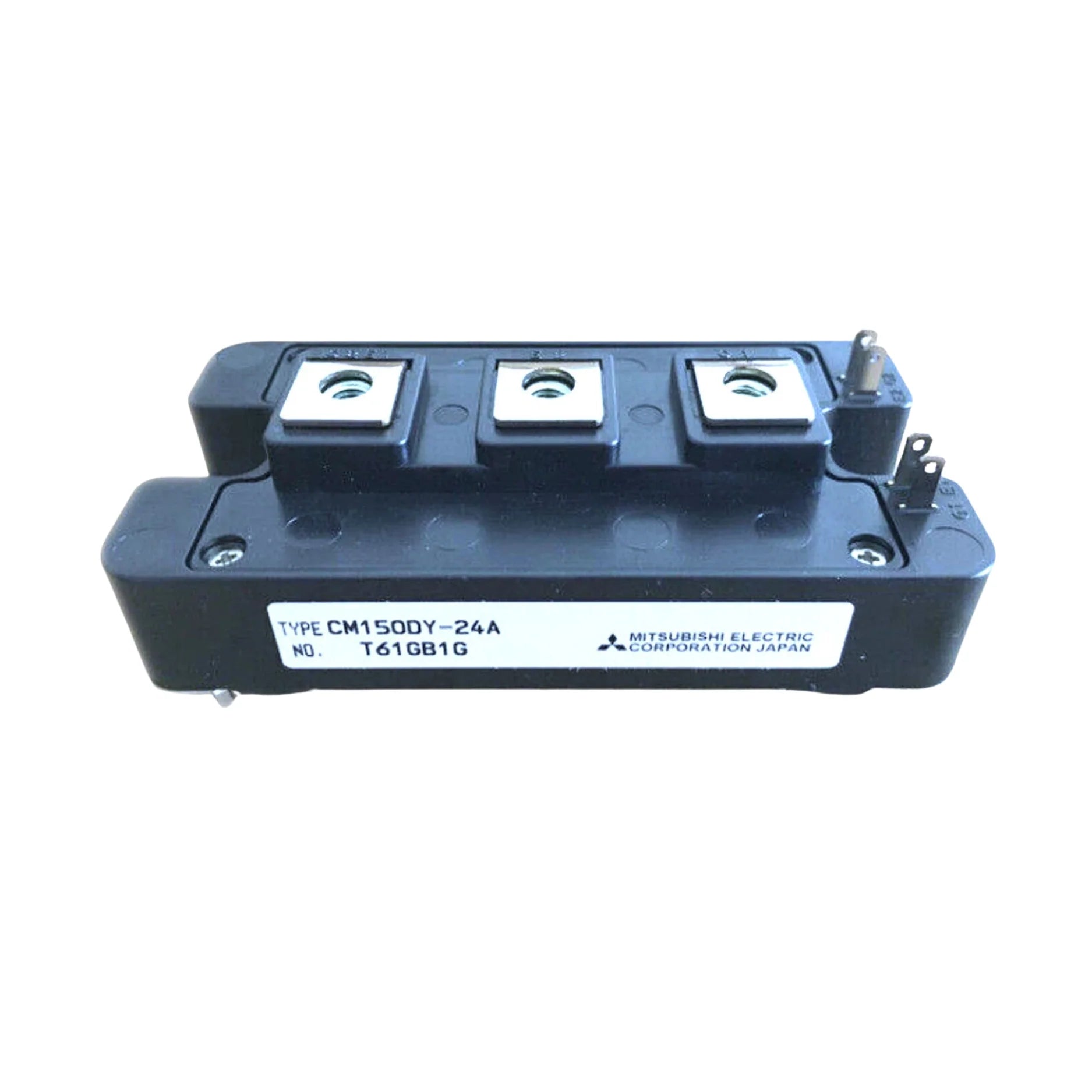

Experience superior power management with the Mitsubishi Electric CM150DY-24A IGBT module, a robust and efficient solution for demanding industrial applications. This compact, dual Insulated Gate Bipolar Transistor (IGBT) module is engineered to deliver exceptional performance in medium-to-high power systems. Rated at a continuous collector current of 150 A and a collector-emitter voltage of 1200 V, the CM150DY-24A integrates Mitsubishi Electric's cutting-edge trench-gate IGBT technology, ensuring optimal switching efficiency and reduced power losses. Designed with an insulated baseplate, it guarantees enhanced thermal management and simplified mounting processes, making it a reliable choice for engineers seeking high-quality power conversion components.

Key Features

• Dual IGBT Configuration: Incorporates two IGBTs with integrated free-wheeling diodes, optimizing circuit design and performance.
• High Current and Voltage Ratings: Boasts a continuous collector current of 150 A and a collector-emitter voltage of 1200 V, suitable for robust power applications.
• Advanced Trench-Gate Technology: Utilizes a sophisticated trench-gate design for efficient switching characteristics and minimized conduction losses.
• Insulated Baseplate: Features an insulated baseplate for superior thermal performance, electrical isolation, and ease of mounting on various chassis configurations.
• Low Vce(sat): Offers a low collector-emitter saturation voltage (Vce(sat) typical ~2.1 V), contributing to reduced power dissipation and increased efficiency.
• High Switching Speed: Engineered for fast rise and fall times, enabling dynamic and responsive power control.
• Mitsubishi Electric Quality: Embodies the renowned reliability, durability, and high-quality engineering synonymous with Mitsubishi Electric products.

Technical Specifications

• Model: CM150DY-24A
• Collector Current (Ic): 150 A (continuous)
• Collector-Emitter Voltage (Vces): 1200 V
• Collector-Emitter Saturation Voltage (Vce(sat)): ~2.1 V typical
• Total Power Dissipation: ~650 W
• Gate-Emitter Voltage: ±20 V
• Input Capacitance: ~100 nF
• Switching Time: Fast rise/fall times
• Mounting: Chassis mount with isolated base
• Operating Temperature: –40 °C to +150 °C
• Package: Isolated base module

Applications

The versatility and high performance of the Mitsubishi Electric CM150DY-24A make it an ideal component for a wide array of industrial applications requiring precise and efficient power conversion:

• Inverter Systems: Critical for high-efficiency motor control and variable frequency drives.
• AC Motor Control: Provides reliable switching for controlling AC motors in industrial machinery.
• Uninterruptible Power Supply (UPS) Systems: Ensures stable and continuous power delivery in critical infrastructure.
• Power Conversion Units: Essential for various power electronics applications, converting power between different forms.
• Renewable Energy Systems: Plays a vital role in solar inverters, wind turbine converters, and other green energy solutions.
• Industrial Automation: Enhances the performance and reliability of automated systems and robotics.

Why Choose This Model?

The Mitsubishi Electric CM150DY-24A stands out as a preferred choice for power electronics designers and engineers due to its compelling advantages:

• Optimized Design: Its compact dual-IGBT configuration simplifies circuit design and reduces overall system complexity.
• Exceptional Efficiency: Benefit from low conduction and switching losses, leading to higher energy efficiency and cooler operation.
• Unwavering Reliability: Built with Mitsubishi Electric's renowned engineering prowess, ensuring long-term durability and consistent performance in harsh environments.
• Superior Thermal Management: The insulated base and efficient design provide excellent thermal characteristics, extending the module's lifespan.
• Cost-Effective Performance: Offers an optimal balance of performance and value, making it ideal for a broad range of mid-range industrial applications.
• Global Availability: This product is readily available and ships worldwide, ensuring accessibility for international projects.

Order Now

Elevate your power electronics designs with the Mitsubishi Electric CM150DY-24A IGBT module. This high-performance component is available for immediate order and ships worldwide. As a part of our extensive collection of Mitsubishi Electric IGBT Modules, it represents a commitment to high-efficiency power conversion and unwavering reliability across industrial automation applications. We encourage you to explore our complete range of Mitsubishi Electric IGBT Modules to find the perfect solution for your specific needs. Furthermore, delve into our comprehensive Power Electronics Components main category, where you can discover a diverse selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions to power your innovations.
