Mitsubishi CM150DY-13T

Overview

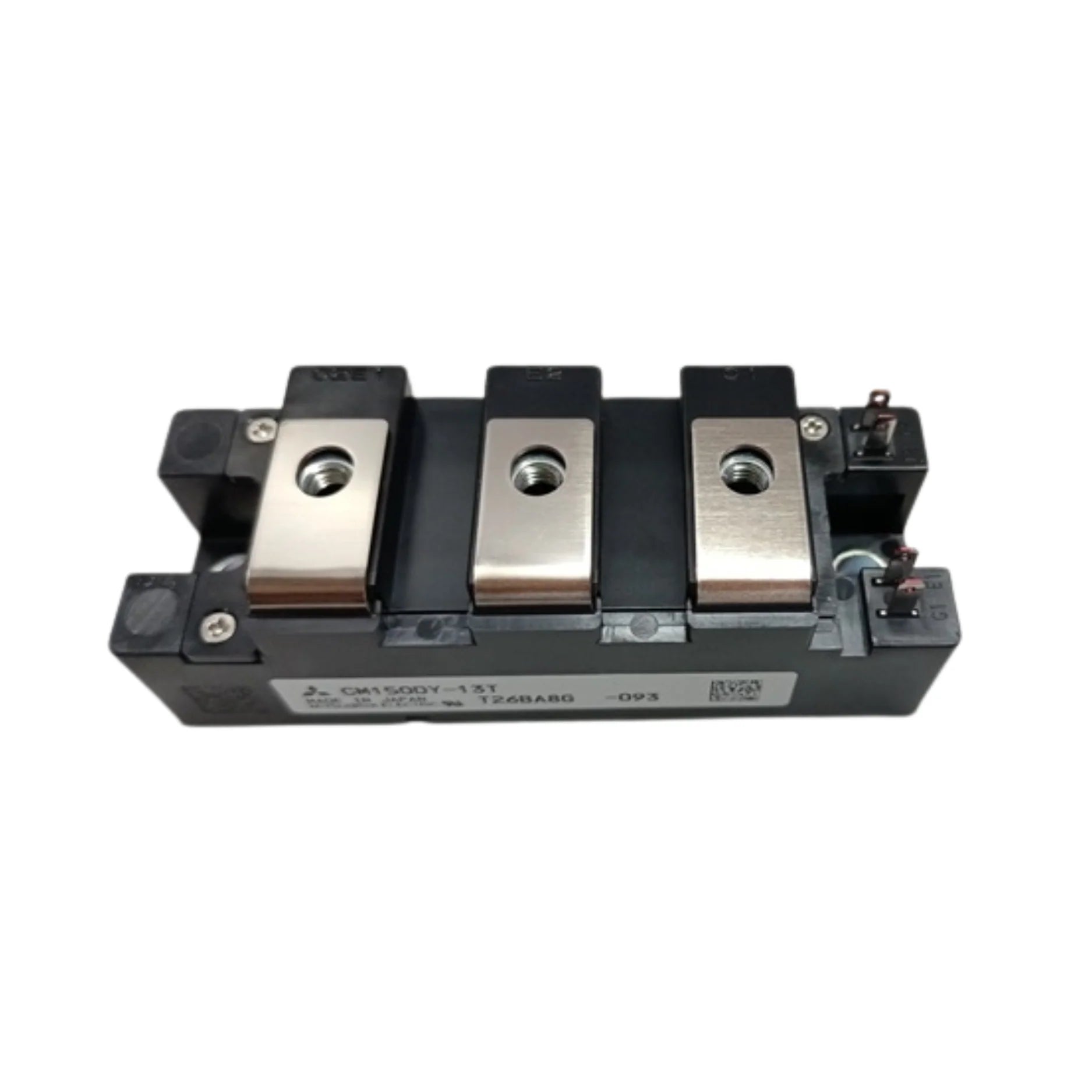

The Mitsubishi Electric CM150DY-13T is a high-performance, dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered for demanding medium-power switching applications. This robust module features a 150 A current rating and a 600 V collector-emitter voltage, making it an ideal solution for a wide array of industrial power conversion systems. Leveraging Mitsubishi Electric's cutting-edge trench-gate IGBT technology, the CM150DY-13T delivers exceptional switching speeds combined with significantly reduced power losses, thereby enhancing overall system efficiency. Integrated fast-recovery free-wheeling diodes further optimize performance by minimizing energy dissipation during commutations. Designed with an insulated baseplate, this module ensures superior thermal management and simplifies mounting, while its rugged construction guarantees reliable and safe operation even in harsh industrial environments. The CM150DY-13T exemplifies Mitsubishi Electric's commitment to producing advanced semiconductor solutions that deliver both power and precision.

Key Features

• Dual IGBT Half-Bridge Configuration: Provides versatile and efficient switching capabilities for various power topologies.
• High Current and Voltage Ratings: Rated at 150 A collector current and 600 V collector-emitter voltage, suitable for numerous medium-power applications.
• Advanced Trench-Gate IGBT Technology: Ensures optimal electrical characteristics, including low VCE(sat) and fast switching, leading to improved energy efficiency.
• Integrated Fast-Recovery Diodes: Minimizes reverse recovery losses and enhances overall system performance, crucial for high-frequency operations.
• Insulated Baseplate: Facilitates efficient thermal transfer for reliable operation and simplifies mounting procedures by eliminating the need for external insulation.
• Rugged Chassis-Mount Design: Guarantees durability and stable performance in challenging industrial settings.
• Optimized for Inverter and Drive Applications: Specifically designed to meet the rigorous demands of motor control and power conversion systems.

Technical Specifications

• Part Number: CM150DY-13T
• Configuration: Dual IGBT with free-wheeling diodes
• Collector Current (IC): 150 A
• Collector-Emitter Voltage (VCE): 600 V
• Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 2.0 V @ 150 A
• Gate-Emitter Voltage (VGE): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.16 °C/W
• Switching Speed: Fast
• Mounting Type: Chassis mount (isolated base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Power module
• Weight: Approximately 250–300 g

Applications

• AC Motor Drives: Provides precise and efficient control for industrial motors, enhancing productivity and energy savings.
• Industrial Power Inverters: Essential component for converting DC to AC power in various industrial machinery and processes.
• Welding and Automation Systems: Offers reliable power switching for high-current applications in automated manufacturing.
• UPS and Backup Power Supplies: Ensures stable and uninterrupted power delivery in critical infrastructure and data centers.
• Renewable Energy Converters: Integral for efficient power conversion in solar, wind, and other renewable energy systems.

Why Choose This Model?

Choosing the Mitsubishi Electric CM150DY-13T IGBT module means opting for a solution that combines exceptional performance with legendary reliability. This module stands out due to its efficient switching capabilities, which significantly reduce power losses and contribute to lower operating costs over time. Backed by Mitsubishi Electric's renowned quality, you can expect long-term stability and consistent performance, minimizing downtime and maintenance requirements. Its design is particularly ideal for compact inverter designs, allowing for smaller and more efficient power electronics systems. The insulated baseplate not only simplifies the installation process but also enhances safety and thermal management. Furthermore, the CM150DY-13T is specifically designed to meet the rigorous demands of industrial environments, ensuring robust and dependable operation under challenging conditions. Invest in a component that delivers both innovation and trust.

Order Now

Elevate your power electronics designs with the Mitsubishi Electric CM150DY-13T IGBT module. This high-performance component is readily available and ships worldwide, ensuring that you can acquire this essential part no matter your location. The CM150DY-13T is a proud member of our comprehensive Mitsubishi Electric IGBT Modules collection, a series specifically curated for achieving high-efficiency power conversion and ensuring reliable, long-term performance in all industrial automation applications. We encourage you to explore the complete range of Mitsubishi Electric IGBT Modules to discover other innovative solutions tailored to your specific power requirements. Additionally, expand your search within our main Power Electronics Components category, where you'll find an extensive selection of diodes, thyristors, GTOs, MOSFETs, and many other advanced semiconductor solutions to fulfill all your technological needs.
