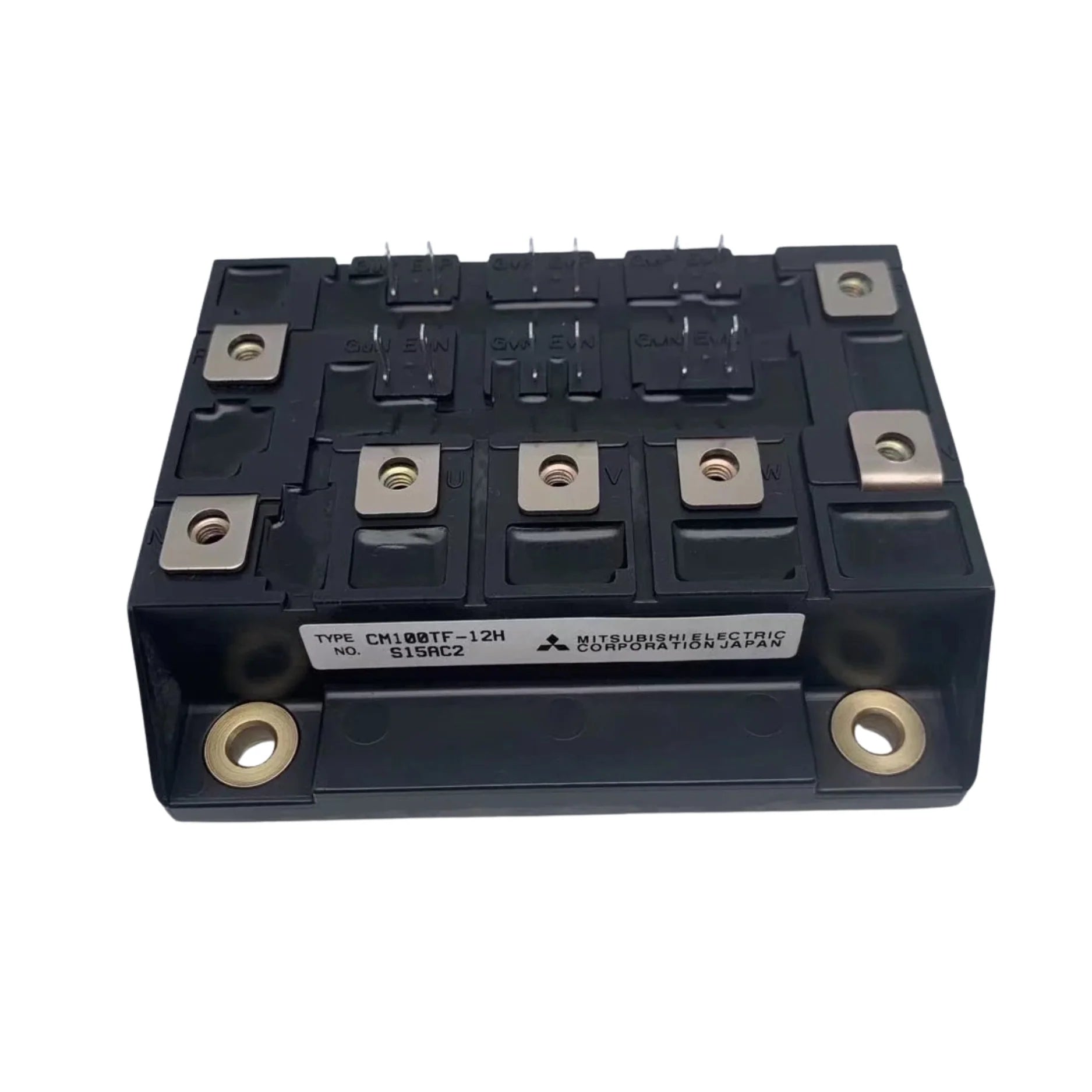

Mitsubishi CM100TF-12H

Overview

The Mitsubishi Electric CM100TF-12H is a high-performance single IGBT (Insulated Gate Bipolar Transistor) module engineered for demanding industrial power applications. Rated for 100 A and 600 V, this module is an ideal solution for achieving efficient power conversion and control in a wide array of systems. Its advanced planar IGBT structure ensures rapid and precise switching performance, while the integrated free-wheeling diode further optimizes its operational efficiency. Designed with an insulated base and housed in a robust chassis-mount package, the CM100TF-12H guarantees reliable and stable operation even in challenging industrial environments. This module stands as a testament to Mitsubishi Electric's commitment to quality and innovation in power semiconductor technology, offering a dependable component for critical mid-range power switching tasks.

Key Features

• Single IGBT Configuration: Streamlined design for efficient power management.
• High Current Rating: Capable of handling 100 A, suitable for substantial power loads.
• High Voltage Rating: Collector-emitter voltage of 600 V, ensuring robust performance in various applications.
• Integrated Free-Wheeling Diode: Enhances efficiency and protects against voltage spikes during switching.
• Fast Switching Performance: Optimized for rapid turn-on and turn-off times, reducing power losses.
• Isolated Baseplate: Provides excellent thermal management and simplified mounting.
• Sturdy Chassis Mount: Ensures secure and straightforward installation into industrial systems.
• Ideal for Mid-Power Applications: Versatile enough to be integrated into a broad spectrum of industrial equipment requiring reliable power switching.

Technical Specifications

• Part Number: CM100TF-12H
• Configuration: Single IGBT with Diode
• Collector Current (IC): 100 A
• Collector-Emitter Voltage (VCE): 600 V
• Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 1.8–2.0 V at rated current
• Gate-Emitter Voltage (VGE): ±20 V
• Switching Speed: Fast
• Thermal Resistance (Junction-Case): Approximately 0.29 °C/W
• Mounting Type: Chassis mount (isolated base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Industrial IGBT Module
• Weight: Approximately 200–250 g

Applications

The versatility and robust design of the Mitsubishi Electric CM100TF-12H make it an excellent choice for a wide range of industrial applications requiring efficient and reliable power control:

• General-Purpose Inverters: Essential for converting DC to AC power in various industrial settings.
• AC Motor Drives: Provides precise speed and torque control for industrial motors.
• Welding Equipment: Facilitates stable and controlled power delivery for high-performance welding.
• Power Converters: Integral to systems requiring efficient DC-DC or AC-DC power conversion.
• Industrial Automation Systems: Supports critical power switching functions in automated machinery and processes.

Why Choose This Model?

Opting for the Mitsubishi Electric CM100TF-12H IGBT module provides significant advantages for your industrial applications:

• Mitsubishi Electric Quality and Durability: Benefit from the renowned reliability and long operational life that Mitsubishi Electric products are known for, ensuring consistent performance.
• Fast and Efficient Power Switching: Its superior switching characteristics minimize energy losses, leading to more energy-efficient systems and reduced operational costs.
• Suitable for Compact Inverter Designs: The optimized design allows for integration into smaller, more efficient power systems without compromising performance.
• Easy to Mount and Cool: The chassis-mount package and isolated baseplate simplify installation and facilitate effective thermal management, extending the module's lifespan.
• Reliable for Long-Term Industrial Use: Built to withstand harsh industrial conditions, offering dependable performance over extended periods, thereby reducing maintenance and downtime.

Order Now

The Mitsubishi Electric CM100TF-12H IGBT module is readily available to meet your industrial power needs and ships worldwide. This exceptional product is a key component within our extensive Mitsubishi Electric IGBT Modules collection, meticulously designed for high-efficiency power conversion and unwavering performance in critical industrial automation settings. We invite you to explore the complete range of Mitsubishi Electric IGBT Modules to discover other advanced solutions. Furthermore, delve into our main category of Power Electronics Components to uncover a comprehensive selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions that empower modern industrial applications.
