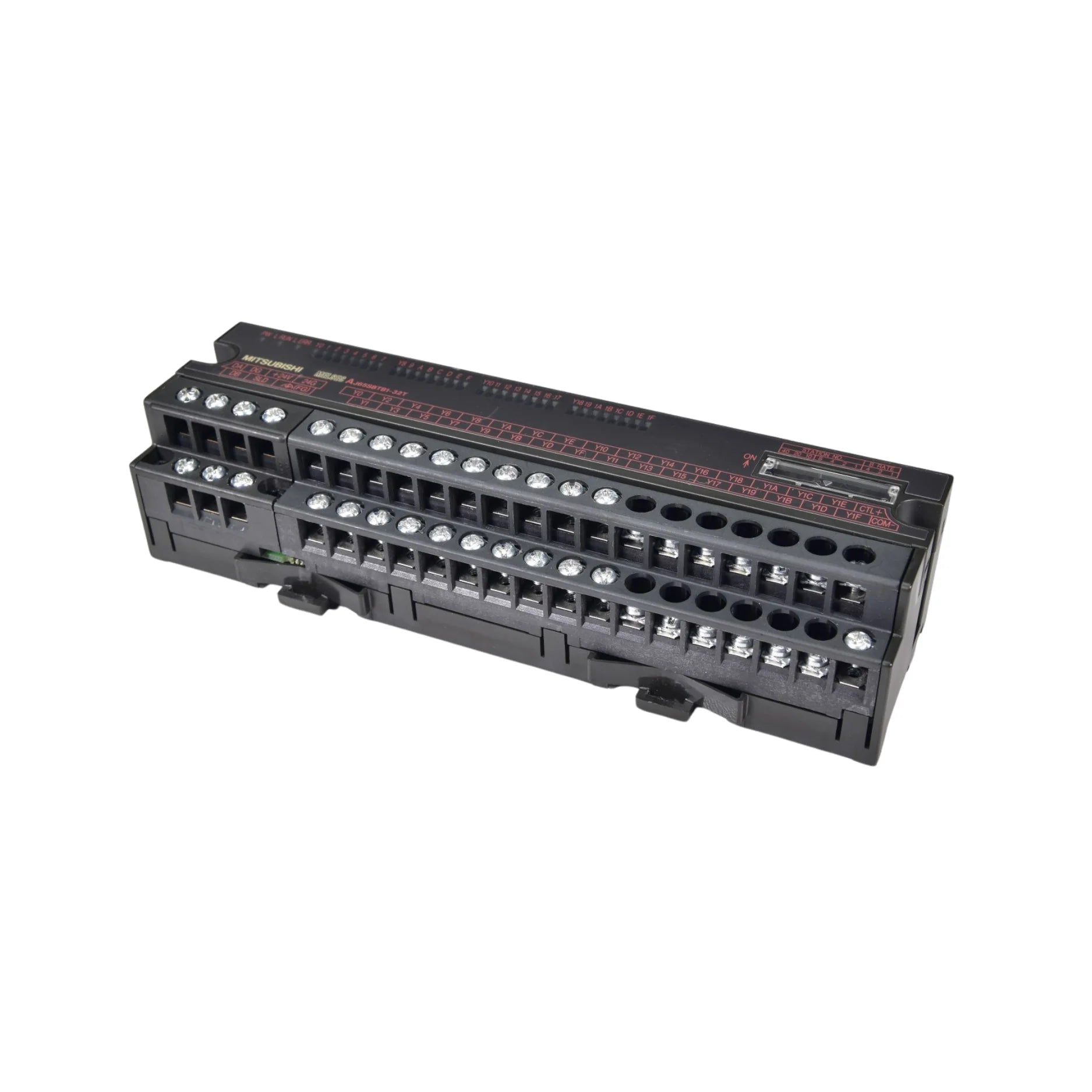

Mitsubishi AJ65SBTB1-32T output module, 32-point transistor sink, terminal block, CC-Link interface

Mitsubishi AJ65SBTB1-32T

$253.00
$253.00
Skip to product information
Mitsubishi AJ65SBTB1-32T output module, 32-point transistor sink, terminal block, CC-Link interface
  • Mitsubishi AJ65SBTB1-32T output module, 32-point transistor sink, terminal block, CC-Link interface
  • Mitsubishi AJ65SBTB1-32T output module, 32-point transistor sink, terminal block, CC-Link interface
Mitsubishi AJ65SBTB1-32T

Mitsubishi AJ65SBTB1-32T

$253.00
$253.00

Overview

The Mitsubishi Electric AJ65SBTB1-32T is a high-performance 32-point remote output module designed to seamlessly integrate into your CC-Link distributed I/O systems. This robust unit features reliable sink transistor outputs and a user-friendly terminal block configuration, ensuring straightforward installation and efficient field wiring. Engineered for precision and speed, the AJ65SBTB1-32T facilitates rapid and accurate signal transmission across your network, making it an indispensable component for sophisticated distributed control systems and modern modular automation setups. Its compact design and advanced capabilities make it an ideal choice for enhancing the efficiency and responsiveness of industrial applications.

Key Features

  • Output Type: Transistor (sink type) for reliable switching.
  • Number of Output Points: 32 individual output channels for comprehensive control.
  • Communication Interface: Fully compatible with CC-Link, ensuring robust and high-speed data exchange.
  • I/O Refresh Method: Utilizes remote I/O station refresh for optimized system performance.
  • Rated Load Voltage: Versatile 12–24V DC range to suit various industrial power supplies.
  • Rated Load Current: Efficient 0.1A per output, suitable for a wide array of loads.
  • Maximum Current Per Common: Robust 0.8A per common, enhancing system stability.
  • Terminal Block Type: Designed for simplified wiring, reducing installation time and effort.
  • Response Time: Ultra-fast 1ms or less, ensuring real-time control and immediate feedback.
  • Mounting Options: Flexible DIN rail or direct panel mount for adaptable installation.

Technical Specifications

  • Model Number: AJ65SBTB1-32T
  • Output Type: Sink transistor
  • Rated Voltage: 12–24V DC
  • Points: 32 outputs
  • Load Current: 0.1A per point
  • Max Simultaneous Load: 0.8A per common terminal
  • Insulation: Photocoupler isolation for enhanced safety and noise immunity.
  • Response Time: ≤1ms
  • Wiring Method: Screw terminal block for secure and straightforward connections.
  • Mounting Method: DIN rail or panel
  • Status Indicators: LED for each channel, providing clear operational status at a glance.
  • Ambient Temperature: Optimal operating range from 0°C to 55°C.
  • Dimensions: Approximately 173 × 63 × 33 mm
  • Weight: Approximately 0.35 kg

Applications

The versatility and high performance of the Mitsubishi Electric AJ65SBTB1-32T make it an ideal solution for a multitude of industrial applications, including but not limited to:

  • Comprehensive distributed I/O control systems utilizing CC-Link networks.
  • Advanced packaging machines and sophisticated material handling systems requiring precise control.
  • Modular automation systems seeking expandable and efficient I/O solutions.
  • Integration into industrial robotics and various types of high-performance machinery.
  • Efficient panel building and critical retrofitting projects where space and reliability are paramount.

Why Choose This Model?

Opting for the Mitsubishi Electric AJ65SBTB1-32T means investing in a solution that brings tangible benefits to your operations:

  • High-Density Outputs: With 32 transistor channels in a single module, it maximizes control capabilities while minimizing footprint.
  • Fast Response Time: Its sub-1 ms response time ensures real-time control and immediate action, crucial for critical automation processes.
  • Efficient Wiring: The intuitive terminal block design significantly simplifies and speeds up installation, reducing labor costs and potential errors.
  • Reliable Communication: Seamless integration into existing CC-Link networks guarantees robust and consistent data exchange, enhancing system stability.
  • Compact Form Factor: Its optimized dimensions make it an excellent choice for control panels with limited space, allowing for more efficient use of valuable cabinet real estate.
  • Mitsubishi Electric Quality: Benefit from the renowned reliability and engineering excellence of Mitsubishi Electric, ensuring long-term performance and peace of mind.

Order Now

Enhance your automation systems with the precision and reliability of the Mitsubishi Electric AJ65SBTB1-32T output module. This essential component is readily available and ships worldwide, ensuring that your critical projects can proceed without delay. Secure your module today to leverage advanced CC-Link connectivity and optimize your industrial control processes.
