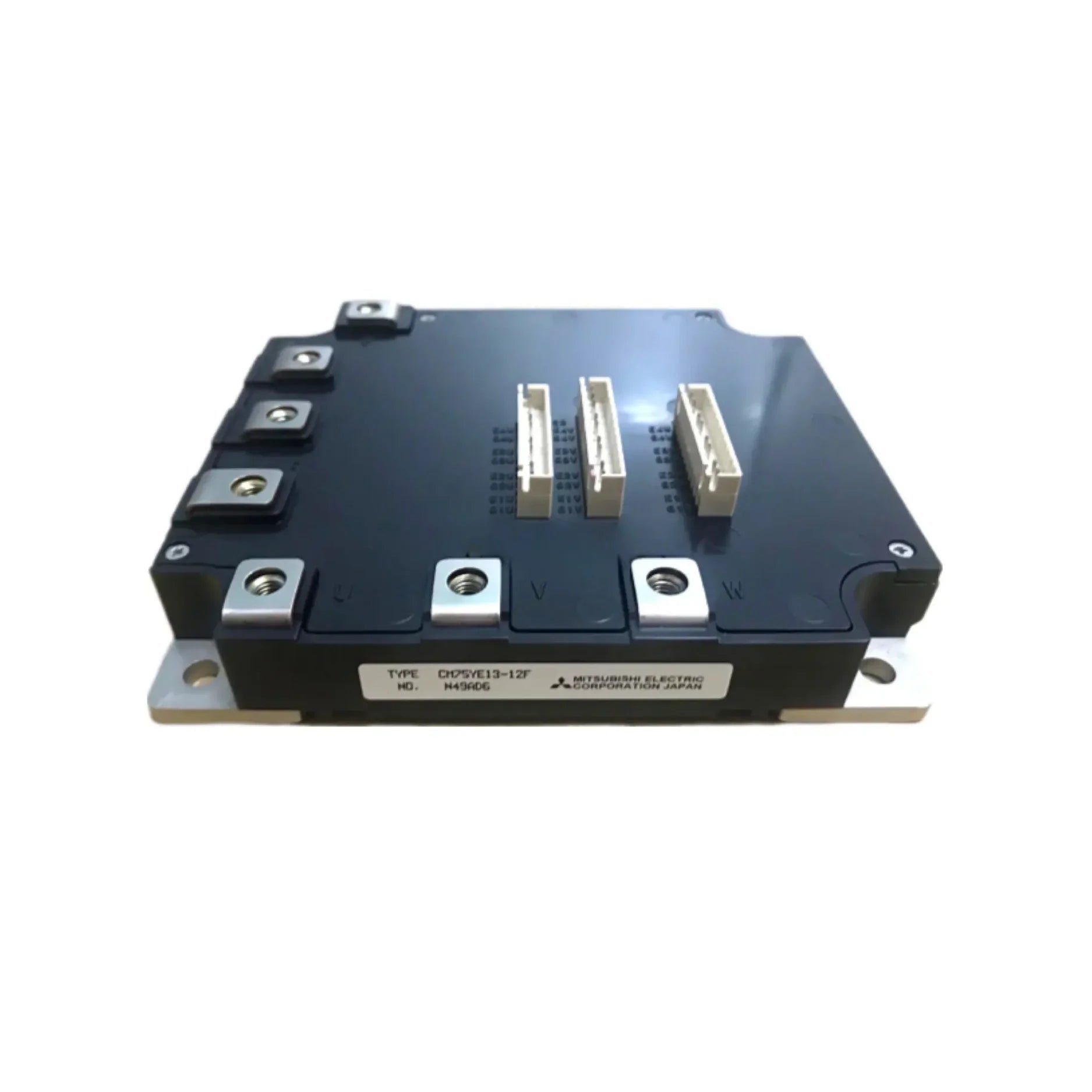

Mitsubishi CM75YE13‑12F

Overview

The Mitsubishi CM75YE13‑12F is a high-performance Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered for demanding industrial power control applications. This advanced power semiconductor solution delivers exceptional current handling capabilities and robust thermal performance, making it an indispensable component for modern power electronics. Designed to optimize efficiency and reliability, the CM75YE13‑12F seamlessly integrates into systems requiring precise and stable power management, from intricate motor drives to large-scale rectifier and power conversion systems. Its robust construction and state-of-the-art internal architecture ensure long-term operational stability even in harsh industrial environments, solidifying its position as a go-to choice for engineers seeking unparalleled performance and durability.

Key Features

• Three-Phase IGBT Configuration: Optimized for three-phase power systems, providing balanced and efficient power control.
• High Current Capacity (75 A): Capable of managing substantial continuous currents, ideal for high-power applications.
• High Surge Current Tolerance: Engineered to withstand significant transient overcurrents, enhancing system resilience and lifespan.
• Low On-State Voltage Drop: Minimizes power losses and improves overall system efficiency through reduced heat dissipation.
• Rugged Design with Insulated Base Plate: Offers enhanced electrical isolation and robust mechanical protection, ensuring safe and reliable operation.
• Standard Screw Terminal Connections: Facilitates easy and secure installation, reducing assembly time and complexity.

Technical Specifications

• Mitsubishi Code: CM75YE13‑12F
• Configuration: 3-phase IGBT module
• Rated Current: 75 A
• Repetitive Peak Off-State Voltage (VDRM): 1200 V
• Surge Current Capability: High surge ratings for transient loads provide superior protection.
• On-State Voltage Drop (VTM): Low, significantly contributing to energy efficiency.
• Mounting: Base plate insulated for optimal thermal and electrical performance.
• Terminals: Screw-type for reliable AC/DC connections.
• Operating Temperature: −40 °C to +125 °C, ensuring stable operation across a broad thermal range.
• Cooling Requirement: Heatsink (not included), essential for maintaining optimal operating temperatures.

Applications

• DC Power Supplies and Rectifiers: Provides efficient and stable DC power conversion.
• Motor Control Systems and VFD Bridges: Enables precise and dynamic control of industrial motors.
• Industrial Welding and Heating Controls: Offers reliable power switching for high-current applications.
• UPS Systems and Battery Chargers: Ensures uninterrupted power supply and efficient battery management.
• Custom Power Conversion Equipment: Versatile enough for integration into bespoke power solutions.

Why Choose This Model?

The Mitsubishi CM75YE13‑12F stands out as a superior choice for a multitude of reasons. It is adept at handling both high continuous and surge currents effectively, providing a resilient and stable power control solution. Engineered for reliability, this module delivers consistent performance even under significant thermal stress and in electrically noisy environments, ensuring the longevity and stability of your systems. Its robust and compact form factor is specifically designed for modular builds, allowing for flexible and space-efficient integration into diverse industrial setups. Choosing the CM75YE13‑12F means investing in the proven reliability and cutting-edge technology that Mitsubishi Electric is renowned for, guaranteeing optimal performance and peace of mind for your critical applications.

Order Now

Elevate your industrial power systems with the Mitsubishi CM75YE13‑12F. This high-power IGBT module offers unparalleled reliability and efficiency for high-current switching applications. As a cornerstone of our Mitsubishi IGBT Modules collection, it exemplifies high-efficiency power conversion and robust performance in the most demanding industrial automation scenarios. Discover the full capabilities of our Mitsubishi IGBT Modules by browsing the complete range. Additionally, explore our comprehensive Power Electronics Components main category to find a wide array of semiconductor solutions, including diodes, thyristors, GTOs, MOSFETs, and many more, tailored to meet your specific power management requirements.
