Mitsubishi CM75DY-24NF

Overview

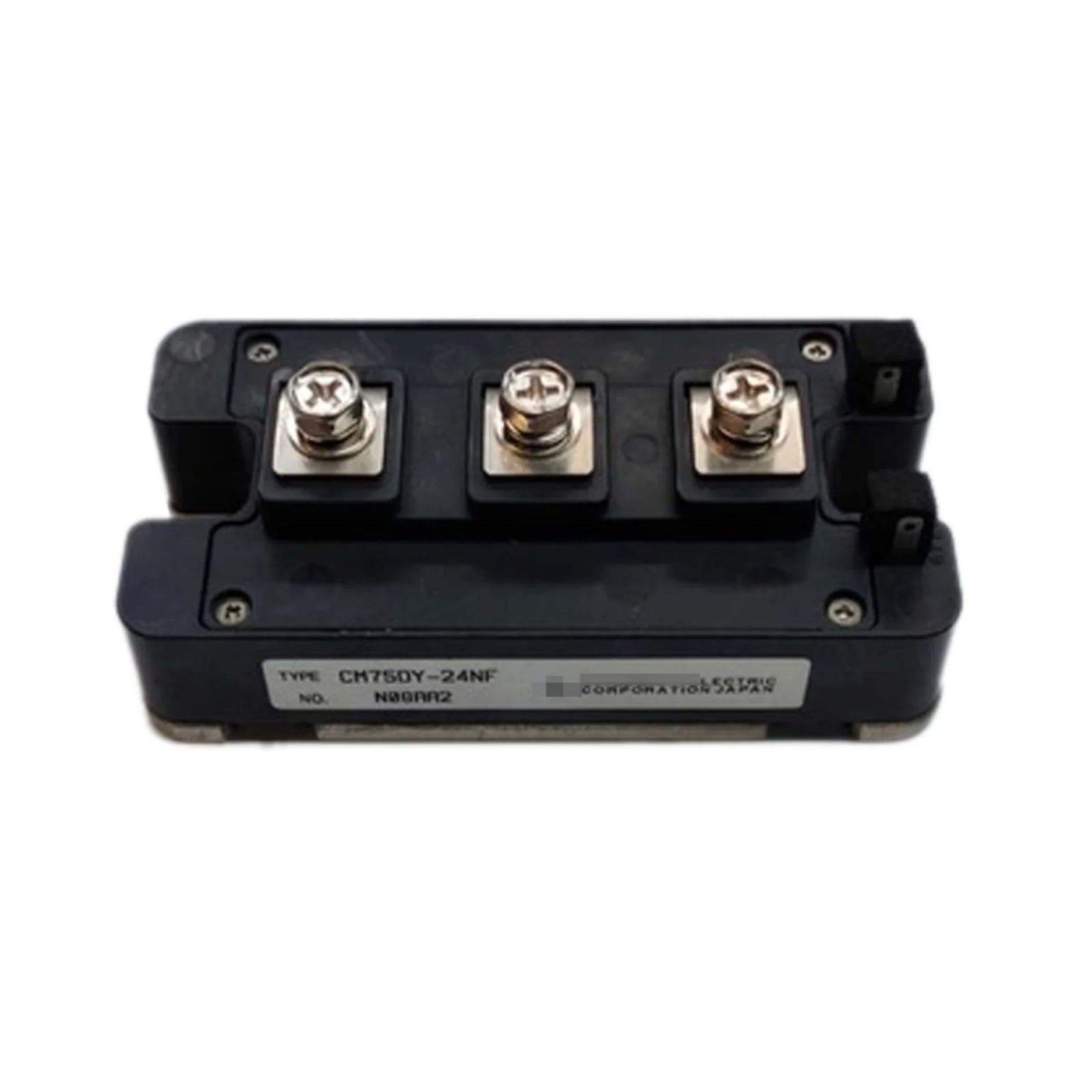

The Mitsubishi CM75DY-24NF is a high-performance dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered to meet the demanding requirements of modern power conversion systems. With a robust rating of 75 Amperes and 1200 Volts, this module integrates advanced trench-gate IGBT technology and fast-recovery free-wheeling diodes, ensuring exceptional switching characteristics and thermal resilience. Its isolated baseplate design not only facilitates efficient heat dissipation but also guarantees long-term durability and reliability in diverse industrial environments, making it an ideal choice for compact and efficient power management solutions.

Key Features

• Dual IGBT Half-Bridge Configuration: Optimized for versatile power control.
• High Current and Voltage Ratings: 75 A collector current and 1200 V collector-emitter voltage.
• Trench-Gate IGBT Technology: Minimizes switching losses and enhances overall efficiency.
• Integrated Fast-Recovery Diodes: Improves performance and reduces component count.
• Insulated Baseplate: Provides superior thermal management and electrical isolation.
• Compact Chassis Mount Housing: Facilitates easy integration into space-constrained designs.
• Exceptional Thermal Reliability: Designed for stable operation across a wide temperature range.

Technical Specifications

• Part Number: CM75DY-24NF
• Configuration: Dual IGBT with Diodes
• Collector Current (IC): 75 A
• Collector-Emitter Voltage (Vces): 1200 V
• Saturation Voltage (VCE(sat)): Approximately 2.0 V at rated current
• Gate-Emitter Voltage (VGE): ±20 V
• Thermal Resistance (Rth(j-c)): Approximately 0.28 °C/W (Junction to Case)
• Switching Speed: Fast
• Mounting Type: Chassis Mount (Isolated Base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Power Module
• Weight: Approximately 200–300 g

Applications

• Inverter Systems & Power Supplies: Enhances efficiency and reliability.
• Motor Drives & Robotics: Provides precise and controlled power delivery.
• Industrial Automation Equipment: Supports robust and continuous operation.
• Renewable Energy Converters: Optimizes power conversion in solar and wind systems.
• Compact Power Switching Solutions: Ideal for designs where space is critical.

Why Choose This Model?

The Mitsubishi CM75DY-24NF stands out as a superior choice for a multitude of reasons. It delivers efficient 75 A switching capabilities within a remarkably compact design, allowing for miniaturization without compromising power. Leveraging Mitsubishi's renowned trench-gate IGBT technology, this module guarantees not only high performance but also exceptional reliability and energy efficiency. Engineered for long-term thermal and electrical performance, it ensures stable and consistent operation even in demanding industrial conditions. Furthermore, its ease of integration with standard industrial systems streamlines development and deployment, making it an ideal component for a wide array of mid-power industrial applications requiring robust, high-efficiency power conversion.

Order Now

The high-performance Mitsubishi CM75DY-24NF IGBT module is readily available and ships worldwide, ensuring prompt delivery for your critical projects. This product is a pivotal offering within our comprehensive Mitsubishi IGBT Modules collection, a curated selection of components designed for superior efficiency and unwavering reliability in industrial automation. We invite you to browse the complete range of Mitsubishi IGBT Modules to discover more advanced solutions. Additionally, explore our main category for Power Electronics Components to find a vast array of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor devices tailored to meet your most demanding power electronic needs.
