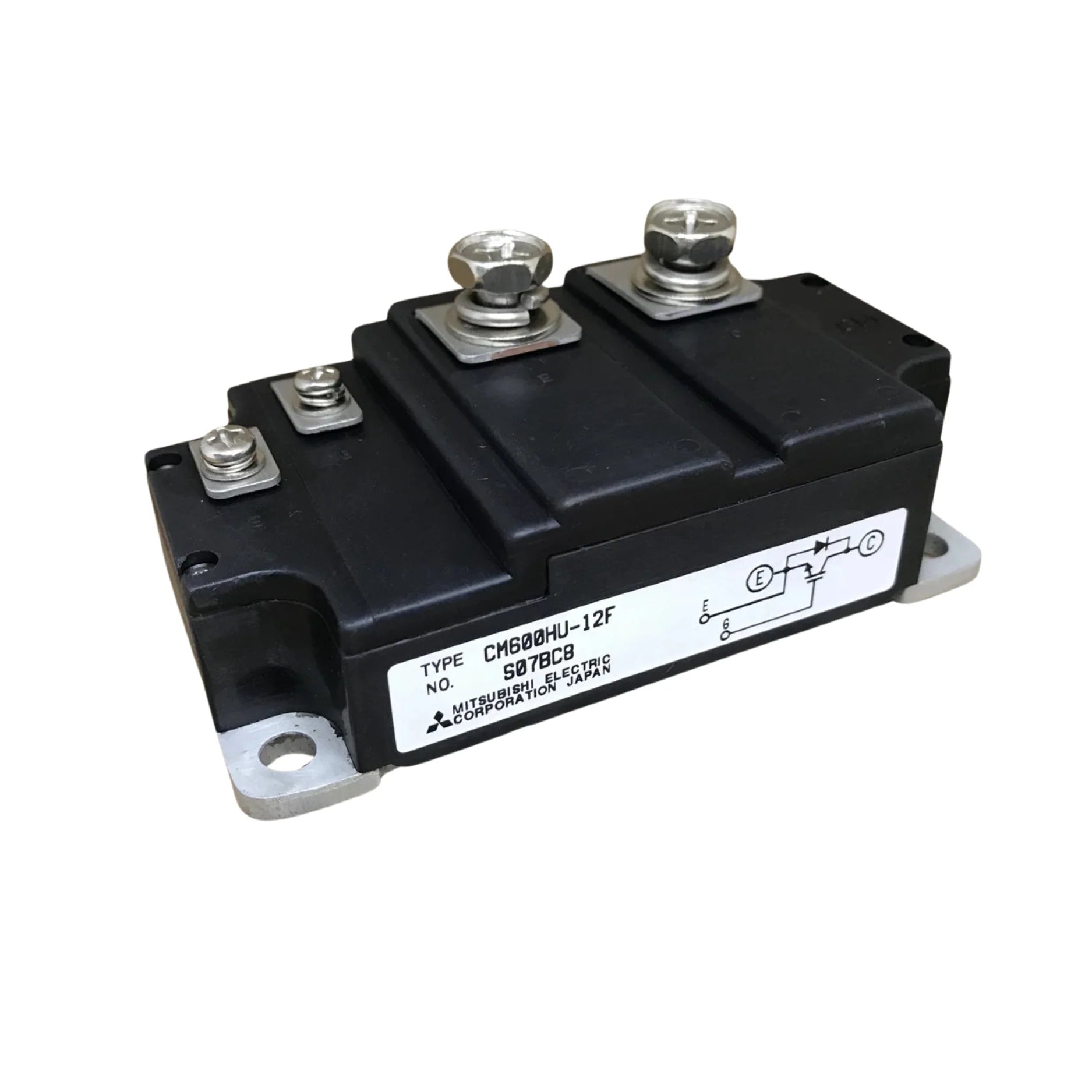

Mitsubishi CM600HU-12F IGBT module, 600 A, 600 V, chassis mount
  • Mitsubishi CM600HU-12F IGBT module, 600 A, 600 V, chassis mount
  • Mitsubishi CM600HU-12F IGBT module, 600 A, 600 V, chassis mount
Mitsubishi CM600HU-12F

Mitsubishi CM600HU-12F

$342.00
$342.00

Overview

The Mitsubishi CM600HU-12F is a high-performance IGBT (Insulated Gate Bipolar Transistor) module engineered for robust operation in demanding industrial power electronics applications. This 600 Ampere, 600 Volt module integrates Mitsubishi's advanced trench gate technology, ensuring exceptional efficiency and reliable high-speed switching characteristics. Designed with an insulated baseplate, it simplifies heat sinking and offers superior thermal management. The embedded fast-recovery free-wheeling diode further enhances its performance by minimizing switching losses. The CM600HU-12F is a pivotal component for systems requiring high power density, stability, and longevity, making it an ideal choice for a wide array of power conversion tasks.

Key Features

  • High Current and Voltage Rating: Capable of handling a continuous collector current of 600 A and a collector-emitter voltage of 600 V, suitable for substantial power loads.
  • Low Vce(sat): Achieves a low collector-emitter saturation voltage, significantly contributing to reduced power dissipation and improved operational efficiency.
  • Advanced Trench Gate IGBT Technology: Utilizes a high-speed trench gate structure, optimizing switching performance and minimizing energy losses.
  • Integrated Free-Wheeling Diode: Incorporates a fast-recovery free-wheeling diode to enhance efficiency during switching operations and protect the IGBT.
  • Isolated Baseplate: Features an insulated baseplate, simplifying mounting and ensuring effective thermal management for prolonged reliability.
  • Chassis Mount Package: Designed for chassis mounting, providing a secure and robust installation in industrial environments.
  • High Surge Current Capacity: Offers excellent resistance to surge currents, enhancing durability and reliability in transient conditions.

Technical Specifications

  • Model: CM600HU-12F
  • IGBT Type: Trench Gate
  • Configuration: Single IGBT with diode
  • Collector Current (Ic): 600 A (continuous), 1200 A (pulsed)
  • Collector-Emitter Voltage (Vces): 600 V
  • Power Dissipation (Max): 1420 W
  • Vce(on): 2.2 V @ 15 V, 600 A
  • Input Capacitance (Cies): 160 nF @ 10 V
  • Gate-Emitter Voltage: ±20 V
  • Turn-On/Off Time: Fast switching response
  • Mounting: Chassis
  • Package Type: Module
  • Operating Temperature: –40 °C to +150 °C

Applications

The Mitsubishi CM600HU-12F IGBT module is an indispensable component across various high-power industrial applications, including:

  • AC Motor Drives: Providing efficient power control for industrial motors, leading to enhanced performance and energy savings.
  • Industrial Inverters: Essential for converting DC to AC power in industrial settings, ensuring stable and reliable operation of machinery.
  • UPS Systems: Crucial for uninterruptible power supplies, offering dependable power backup and conditioning for critical systems.
  • High-Power Converters: Employed in a wide range of power conversion tasks where high efficiency and robust performance are paramount.
  • Battery-Powered Equipment: Contributing to the efficient power management of large-scale battery systems.
  • Renewable Energy Systems: Integral to inverters and converters within solar, wind, and other renewable energy infrastructures.

Why Choose This Model?

The CM600HU-12F stands out as a superior choice for professional power electronics engineers and system designers due to several critical advantages:

  • High Power Density: Delivers significant power output within a compact module footprint, optimizing space utilization in complex systems.
  • Reliable Operation: Engineered for consistent and stable performance even under high load conditions, minimizing downtime and maintenance.
  • Fast, Efficient Switching: Mitsubishi's advanced IGBT technology ensures rapid switching with minimal energy losses, contributing to overall system efficiency.
  • Built-in Thermal and Electrical Isolation: Provides enhanced safety and simplified system integration through its insulated baseplate.
  • Proven Mitsubishi IGBT Technology: Leveraging Mitsubishi Electric's long-standing reputation for innovation and quality in semiconductor manufacturing, guaranteeing a product built on decades of expertise.

Order Now

The Mitsubishi CM600HU-12F IGBT module is available for immediate acquisition in both new and surplus conditions, catering to diverse project needs and budgets. We offer worldwide shipping, ensuring that this essential power component can reach your facility regardless of your location. This product is a highlight within our extensive Mitsubishi IGBT Modules collection, specifically curated for high-efficiency power conversion and robust performance in critical industrial automation scenarios. We invite you to explore the complete range of Mitsubishi IGBT Modules to discover other components that can elevate your power electronics designs. Furthermore, delve into our comprehensive Power Electronics Components main category to access a broader spectrum of semiconductor solutions, including diodes, thyristors, GTOs, MOSFETs, and many more, all designed to meet the rigorous demands of modern industrial applications.
