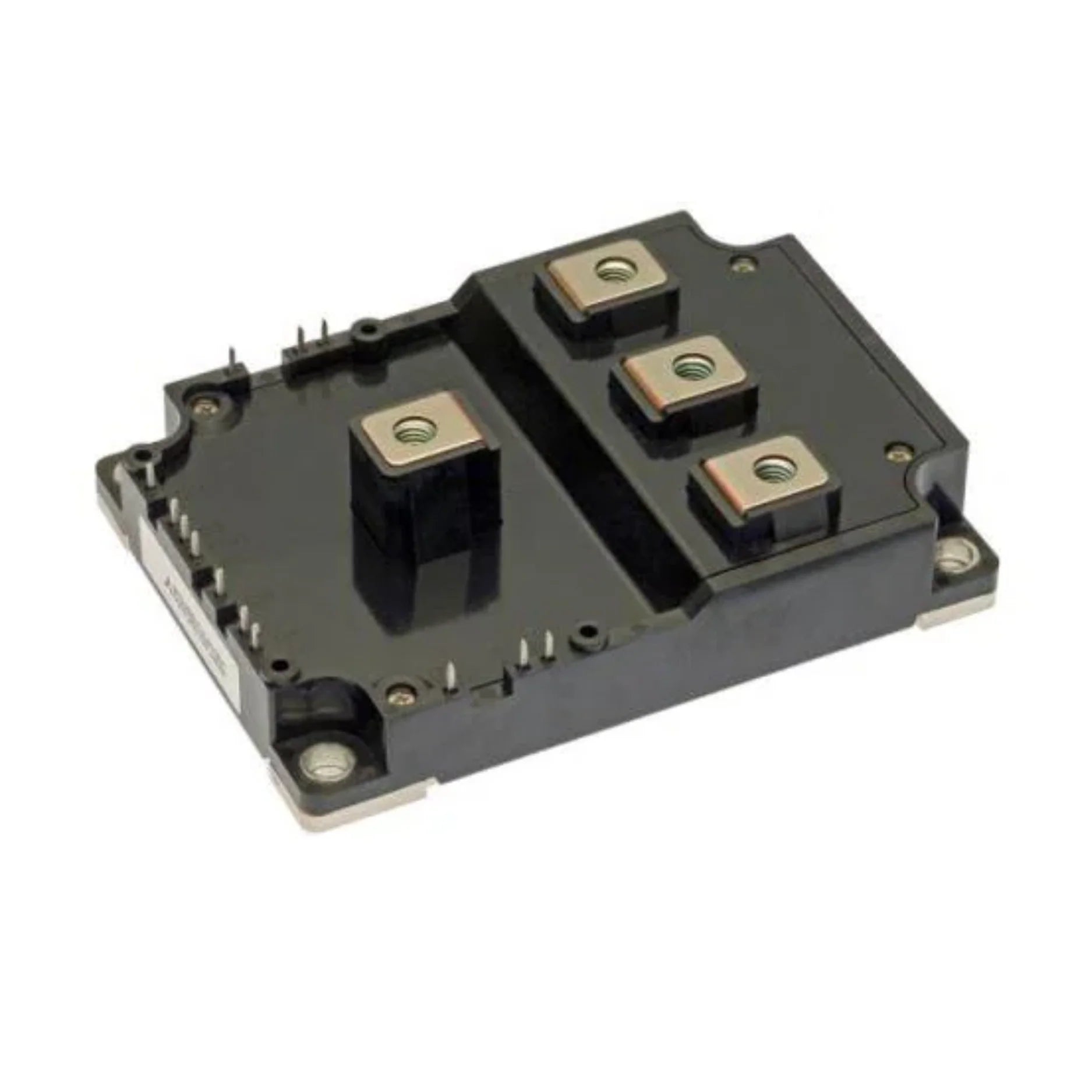

Mitsubishi CM400ST-24S1

Overview

The Mitsubishi CM400ST-24S1 is a powerful and highly efficient single IGBT module engineered for demanding industrial power control applications. Rated at an impressive 400 Amperes and 1200 Volts, this module is a cornerstone for systems requiring reliable high-current switching and superior energy conversion. Its advanced design incorporates Mitsubishi Electric’s renowned trench-gate IGBT technology, which significantly minimizes power losses and boosts overall operational efficiency. The integrated insulated baseplate ensures exceptional thermal management, allowing for stable performance even under strenuous conditions. Encased in a compact, chassis-mount package, the CM400ST-24S1 is built for durability and easy integration into a wide array of high-performance electronic systems, making it a preferred choice for engineers seeking cutting-edge power solutions.

Key Features

• High Power Rating: Configured as a single IGBT capable of handling 400 A collector current and 1200 V collector-emitter voltage, providing ample power for heavy-duty applications.
• Advanced Trench-Gate Technology: Utilizes Mitsubishi Electric's innovative trench-gate IGBT design for superior efficiency, reduced switching losses, and enhanced performance.
• Integrated Fast-Recovery Diode: Comes with a built-in fast-recovery diode, optimizing the module's switching characteristics and ensuring robust operation.
• Insulated Baseplate: Features an insulated baseplate that facilitates excellent heat dissipation, contributing to prolonged module life and stable operating temperatures.
• Robust Chassis Mount Package: Designed for chassis mounting, offering a secure and durable installation while ensuring efficient thermal pathways.
• Optimized for High-Frequency Switching: Perfectly suited for applications requiring rapid and precise switching, maintaining high efficiency across various frequencies.

Technical Specifications

• Part Number: CM400ST-24S1
• Configuration: Single IGBT with Integrated Diode
• Collector Current (IC): 400 A
• Collector-Emitter Voltage (VCE): 1200 V
• Collector-Emitter Saturation Voltage [VCE(sat)]: Approximately 2.1–2.3 V @ rated current
• Gate-Emitter Voltage (VGE): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.08 °C/W
• Switching Speed: Fast
• Mounting Type: Chassis mount (with isolated base)
• Operating Temperature Range: –40 °C to +150 °C
• Package Type: Industrial Power Module
• Weight: Approximately 700–900 g

Applications

The Mitsubishi CM400ST-24S1 IGBT module is versatile and indispensable across a multitude of industrial sectors, empowering critical systems with its reliable performance:

• Motor Drives and Robotics: Provides precise and efficient power control for industrial motors and advanced robotic systems, enhancing automation and productivity.
• Renewable Energy Inverters: Essential for solar and wind energy inverters, converting generated power with high efficiency and reliability for grid integration.
• Industrial Power Supplies: Forms the core of robust industrial power supplies, ensuring stable and consistent power delivery for various manufacturing and operational needs.
• Welding and Automation Systems: Delivers the high-current switching capabilities required for advanced welding equipment and complex automation processes.
• High-Power Switching Equipment: Powers a broad range of high-power switching applications where durability, efficiency, and precise control are paramount.

Why Choose This Model?

Opting for the Mitsubishi CM400ST-24S1 means investing in unparalleled reliability, efficiency, and engineering excellence:

• Superior Performance: Delivers exceptional high-current switching capabilities at 1200V, ensuring robust performance in the most demanding industrial environments.
• Mitsubishi Electric's Proven Technology: Benefits from Mitsubishi Electric's long-standing reputation for quality and innovation, featuring highly efficient trench-gate technology.
• Optimal Thermal Management: The isolated baseplate design guarantees safe and effective thermal performance, leading to extended operational life and reduced maintenance.
• Compact and Reliable Design: Its compact, chassis-mount form factor makes it ideal for seamless integration into OEM systems, contributing to overall system reliability and space efficiency.
• Industry-Leading Quality: Backed by Mitsubishi Electric's stringent quality standards and commitment to durability, providing peace of mind and long-term value.

Order Now

Equip your industrial systems with the high-performance Mitsubishi CM400ST-24S1 IGBT module. This essential component for high-efficiency power conversion and reliable industrial automation is readily available and ships worldwide to meet your project deadlines.

Explore our comprehensive Mitsubishi IGBT Modules collection to discover a full range of solutions designed to elevate your power electronic designs. For a broader selection of semiconductor technologies, including diodes, thyristors, GTOs, MOSFETs, and more, please visit our main category for Power Electronics Components.
