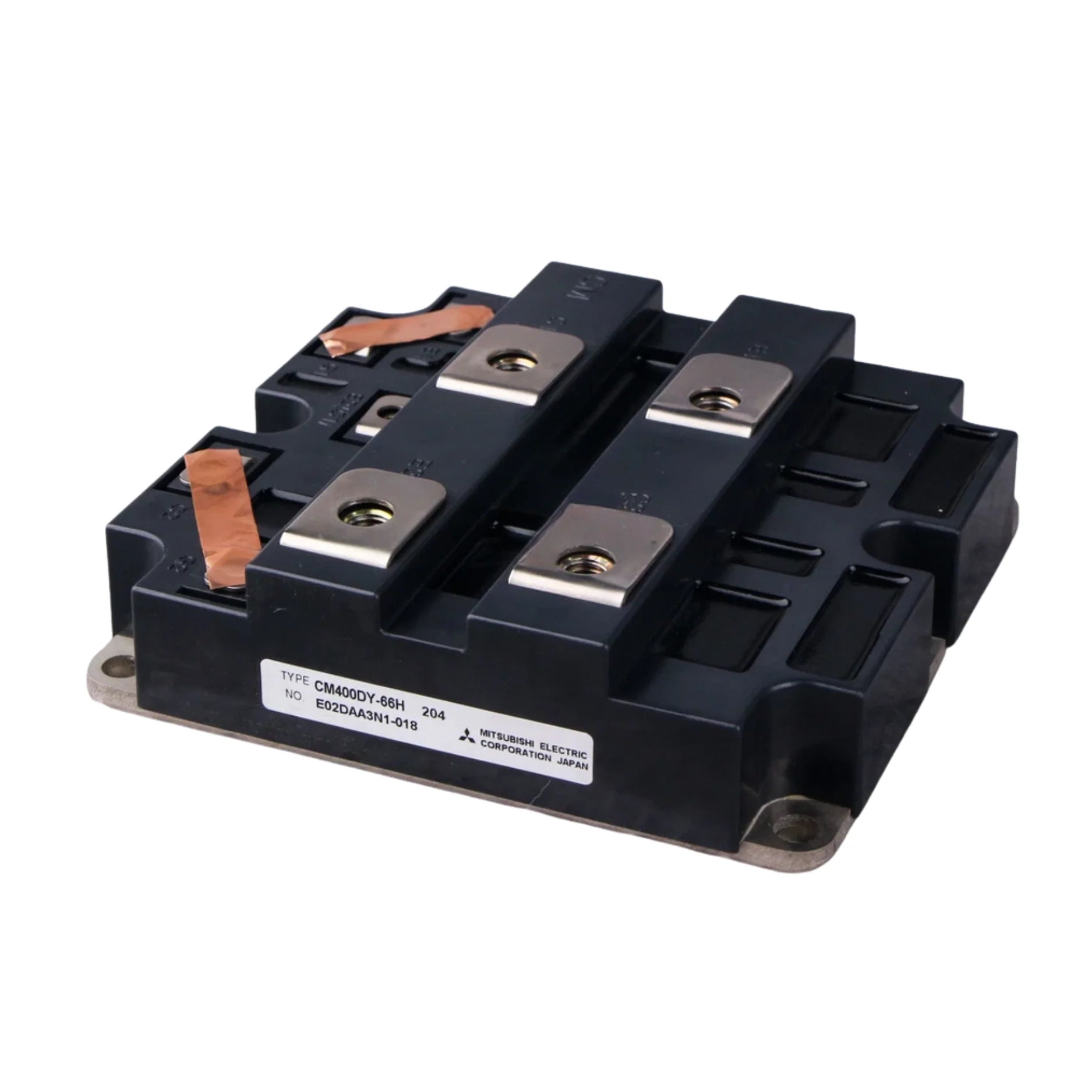

Mitsubishi CM400DY-66H

Overview

The Mitsubishi CM400DY-66H IGBT module stands as a cornerstone for high-voltage, high-current applications demanding unwavering reliability and peak performance. Rated at an impressive 3300 volts and 400 amperes, this dual transistor module is meticulously engineered to excel in the most rigorous industrial and transportation environments. Leveraging Mitsubishi Electric's cutting-edge trench-gate IGBT technology, the CM400DY-66H minimizes switching losses while maximizing efficiency. Its integrated fast-recovery diodes further bolster performance, making it an ideal choice for systems where robust switching and power conversion are paramount. The insulated baseplate design ensures optimal thermal management and enhanced durability, even under continuous high-power operation, solidifying its position as a go-to component for demanding power electronics.

Key Features

• Dual IGBT Half-Bridge Module: Provides versatile configuration for various power circuit designs.
• High Collector Current: Handles substantial loads with a 400 A rating.
• Exceptional Collector-Emitter Voltage: Operates reliably in 3300 V systems.
• Trench-Gate IGBT Technology: Achieves superior efficiency and reduced power losses.
• Integrated Fast-Recovery Diodes: Enhances switching speed and overall system performance.
• Insulated Baseplate: Guarantees optimal thermal conductivity and electrical isolation for safety and longevity.
• Chassis Mount: Designed for robust integration into industrial assemblies.
• Optimized for High-Voltage Applications: Engineered to meet the stringent demands of critical power systems.

Technical Specifications

• Part Number: CM400DY-66H
• Configuration: Dual IGBT with Diodes
• Collector Current (I_C): 400 A
• Collector-Emitter Voltage (V_CES): 3300 V
• Collector-Emitter Saturation Voltage (V_CE(sat)): Approximately 2.4–2.6 V (at rated current)
• Gate-Emitter Voltage (V_GE): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.06 °C/W
• Switching Speed: Medium to Fast
• Mounting Type: Chassis Mount (Isolated Base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Industrial IGBT Module
• Weight: Approximately 1.2–1.6 kg

Applications

The robust design and high-performance characteristics of the Mitsubishi CM400DY-66H make it suitable for a diverse range of demanding applications across various industries:

• Railway Traction Inverters: Providing reliable power control for electric locomotives and trams.
• HVDC Power Transmission Systems: Essential for efficient long-distance electricity transmission.
• High-Voltage Motor Drives: Enabling precise and powerful motor control in heavy industrial machinery.
• Industrial Power Supplies and Converters: Ensuring stable and efficient power conversion in factory automation.
• Power Grids and Infrastructure Systems: Contributing to the stability and reliability of national and regional electrical networks.

Why Choose This Model?

The Mitsubishi CM400DY-66H stands out as a prime choice for critical power applications due to its unparalleled combination of performance, durability, and advanced technology. It delivers exceptional current handling of 400 A at a high 3300 V, making it perfectly suited for extreme power systems. Built with Mitsubishi Electric's renowned high-reliability trench-gate technology, this module guarantees efficient operation and extended service life. It is specifically engineered to withstand significant thermal and electrical stress, a critical factor in demanding industrial and transportation environments. The chassis mount design, coupled with an insulated base, ensures not only safe operation but also straightforward integration into existing systems. For engineers and system integrators seeking a robust, high-performance, and reliable IGBT solution, the CM400DY-66H offers an optimal solution that underpins system stability and efficiency.
