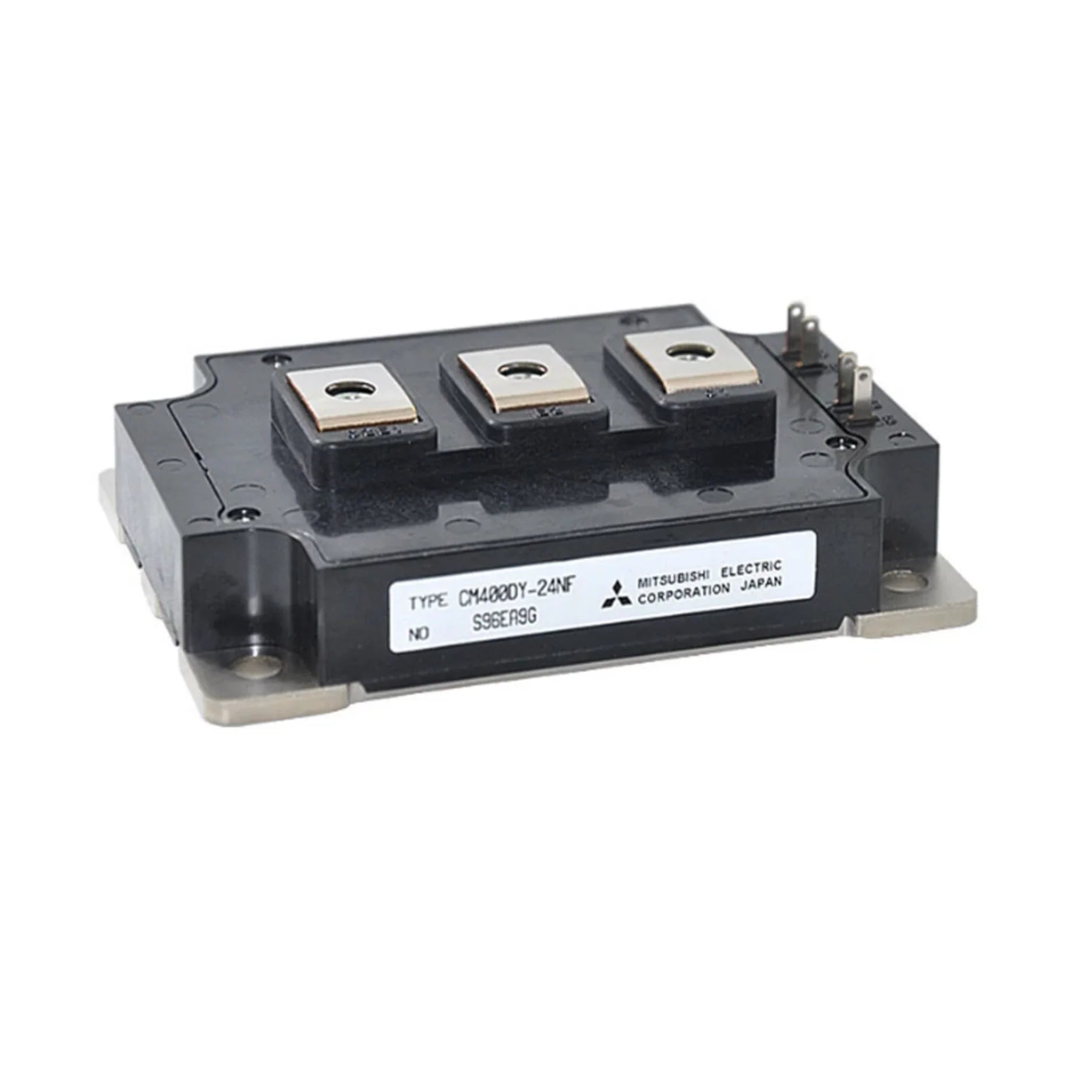

Mitsubishi CM400DY-24NF

Overview

The Mitsubishi CM400DY-24NF is a high-performance dual IGBT module engineered to meet the rigorous demands of modern industrial power electronics. This advanced component provides exceptional switching capabilities at 400 Amperes and 1200 Volts, making it an indispensable solution for high-power applications. Utilizing Mitsubishi Electric's renowned trench-gate technology, the CM400DY-24NF delivers superior efficiency with significantly reduced switching losses. Its integrated free-wheeling diodes further enhance performance and reliability, ensuring optimal operation in critical systems. Designed for chassis mounting with an insulated baseplate, this IGBT module simplifies installation and thermal management, offering a robust and long-lasting solution for your power conversion needs.

Key Features

• Dual IGBT Configuration: Enhances power handling and simplifies circuit design for various applications.
• High Current and Voltage Rating: Capable of handling 400 A collector current and 1200 V collector-emitter voltage, suitable for demanding industrial environments.
• Advanced Trench Gate Design: Minimizes ON-state voltage drop (Vce(sat)) to approximately 2.2V at 400A, leading to higher energy efficiency.
• Integrated Fast Recovery Diodes: Ensures excellent switching performance and reduces reverse recovery losses, contributing to overall system efficiency.
• Insulated Baseplate: Provides electrical isolation and simplifies thermal management, allowing for direct mounting to heatsinks without additional insulation layers.
• High-Speed Switching: Optimized for fast rise and fall times, enabling efficient operation in high-frequency applications.
• Chassis Mount Design: Facilitates easy and secure installation within industrial equipment.
• Rugged and Reliable Construction: Built to Mitsubishi Electric's exacting standards for durability and consistent performance in harsh industrial conditions.

Technical Specifications

• Model: CM400DY-24NF
• Collector Current (Ic): 400 A (continuous)
• Collector-Emitter Voltage (Vces): 1200 V
• Collector-Emitter Saturation Voltage (Vce(sat)): Approx. 2.2 V @ 400 A
• Total Power Dissipation: Approximately 1350 W
• Gate-Emitter Voltage (Vge): ±20 V
• Input Capacitance (Cies): Approximately 150 nF
• Switching Speed: Fast rise and fall times for efficient high-frequency operation
• Mounting Type: Chassis
• Operating Temperature Range: –40 °C to +150 °C
• Package Type: Module with insulated base for enhanced thermal and electrical performance

Applications

The versatility and robust performance of the Mitsubishi CM400DY-24NF make it an ideal choice for a wide array of high-power industrial applications:

• High-Power Inverters: Essential for converting DC to AC in various industrial machinery and grid-tied systems.
• AC Motor Drives: Provides precise control and efficient power delivery for industrial motors, enhancing operational efficiency.
• Uninterruptible Power Supplies (UPS) and Backup Power Systems: Ensures reliable power continuity for critical infrastructure.
• Induction Heating Systems: Delivers the high-frequency and high-power switching required for efficient induction heating processes.
• Renewable Energy Converters (Solar/Wind): Plays a crucial role in maximizing energy harvesting and conversion efficiency from renewable sources.
• Welding Equipment: Offers the necessary power handling for advanced welding applications.
• Industrial Automation: Integral component for various automated control systems requiring robust power switching.

Why Choose This Model?

The Mitsubishi CM400DY-24NF stands out as a premier choice for power electronics engineers and system designers due to its superior combination of features and benefits:

• Unparalleled Performance: Integrates high current (400 A) and high voltage (1200 V) capabilities within a remarkably compact module, reducing component count and board space.
• Simplified System Design: The dual IGBT configuration minimizes complexity, facilitating easier integration into various power systems and potentially reducing development time.
• Exceptional Efficiency: Leveraging advanced trench-gate technology, this module achieves significantly lower switching losses, directly translating to enhanced energy efficiency and reduced operational costs for your applications.
• Mitsubishi Electric's Renowned Quality: As a product from a global leader in power semiconductors, the CM400DY-24NF guarantees outstanding reliability, consistent performance, and a long operational lifespan, even under challenging load conditions.
• Effortless Integration: The insulated baseplate and chassis mount design ensure straightforward installation and optimal thermal management, streamlining the design process and improving system integrity.

Order Now

Elevate the performance and reliability of your power electronics systems with the Mitsubishi CM400DY-24NF IGBT module. This high-current, 1200V dual IGBT solution is readily available and can be shipped worldwide, ensuring that your projects proceed without delay. As a cornerstone of our extensive Mitsubishi IGBT Modules collection, this product exemplifies our commitment to high-efficiency power conversion and robust performance in industrial automation. We invite you to explore the complete range of Mitsubishi IGBT Modules to find the perfect components for your specific requirements. Furthermore, delve into our comprehensive Power Electronics Components main category, where you can discover an extensive selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions to power your innovations.
