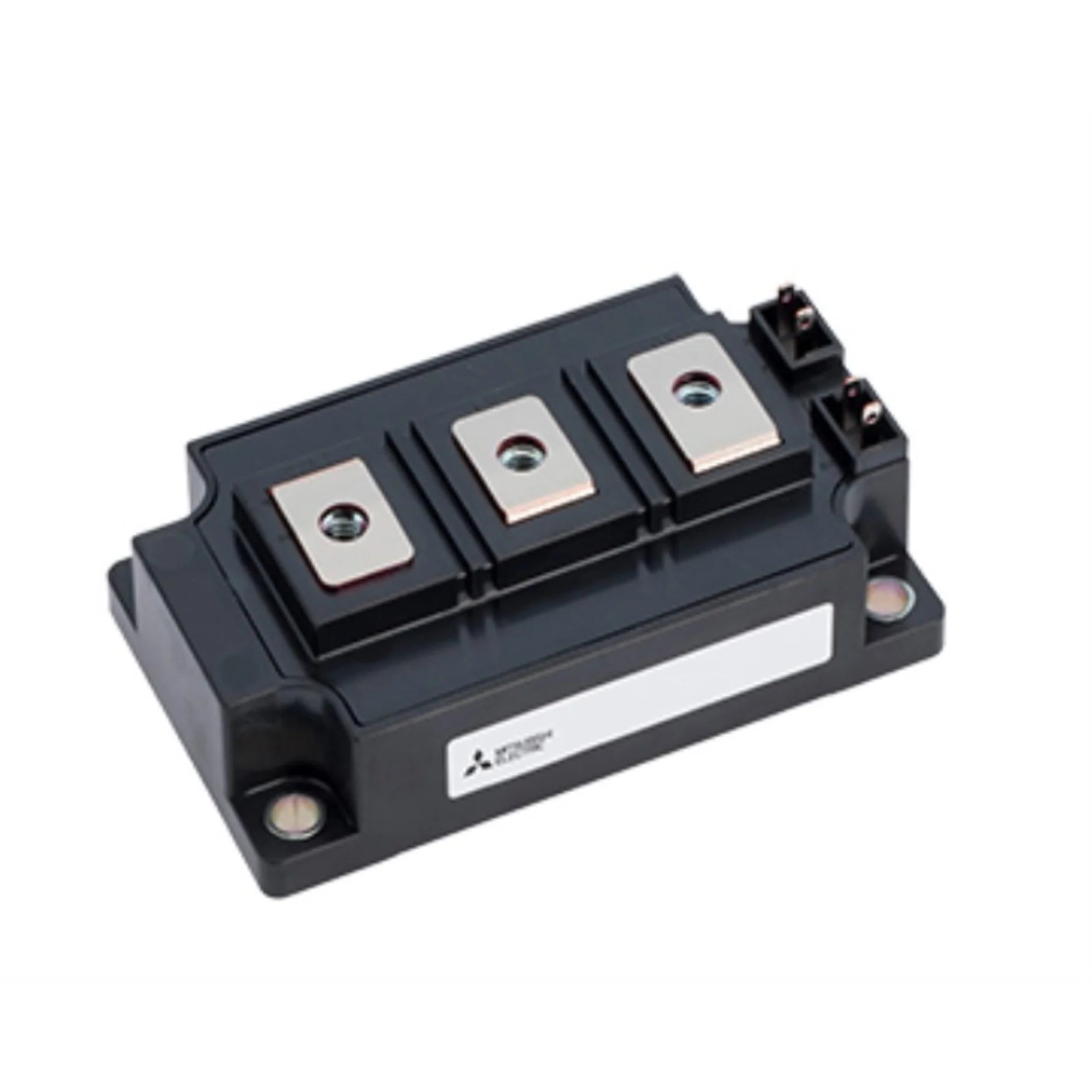

Mitsubishi CM300DY-24NFH

Overview

The Mitsubishi CM300DY-24NFH is a high-performance dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered to meet the rigorous demands of modern industrial power applications. Rated for an impressive 300 A and 1200 V, this module is a cornerstone for systems requiring exceptional power handling capability and unwavering reliability. Leveraging Mitsubishi Electric's cutting-edge trench-gate IGBT technology, it delivers superior performance characterized by minimal switching losses and remarkable energy efficiency. The incorporation of integrated fast-recovery diodes further enhances its operational efficiency, making it an ideal choice for high-frequency switching environments. Designed with a robust, isolated baseplate and durable chassis mount, the CM300DY-24NFH ensures optimal thermal management and an extended operational lifespan, even under the most challenging industrial conditions. This module stands as a testament to Mitsubishi Electric's commitment to advanced power semiconductor solutions, providing a dependable foundation for critical power systems worldwide.

Key Features

• Dual IGBT Half-Bridge Configuration: Offers versatile and efficient power switching capabilities for a wide range of applications.
• High Current and Voltage Ratings: Boasts a collector current of 300 A and a collector-emitter voltage of 1200 V, suitable for demanding power conversion.
• Trench-Gate IGBT Technology with Low VCE(sat): Minimizes conduction losses, leading to enhanced overall system efficiency and reduced heat generation.
• Integrated Fast-Recovery Free-Wheeling Diodes: Ensures swift and efficient current commutation, reducing switching losses and improving performance during high-frequency operation.
• Isolated Baseplate: Facilitates superior thermal management by efficiently dissipating heat, thereby extending the module's lifespan and enhancing reliability.
• Rugged Chassis-Mount Construction: Provides a durable and stable mounting solution, ensuring resilience in harsh industrial environments.
• Optimized for High-Power and High-Frequency Systems: Engineered to excel in applications requiring both significant power output and rapid switching speeds.

Technical Specifications

• Part Number: CM300DY-24NFH
• Configuration: Dual IGBT with Diodes
• Collector Current (IC): 300 A
• Collector-Emitter Voltage (VCE): 1200 V
• Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 2.1–2.3 V at rated current
• Gate-Emitter Voltage (VGE): ±20 V
• Thermal Resistance (Junction-Case): Approximately 0.075 °C/W
• Switching Speed: Fast
• Mounting Type: Chassis Mount (Isolated Base)
• Operating Temperature: –40 °C to +150 °C
• Package Type: Industrial IGBT Module
• Weight: Approximately 600–700 g

Applications

• High-Power Industrial Drives: Provides the robust power control necessary for large industrial motors and machinery.
• Inverters for Renewable Energy Systems: Essential for efficient power conversion in solar and wind power generation.
• Traction and Transportation Power Systems: Ideal for electric vehicles, trains, and other high-power transportation applications.
• Large Motor Controllers: Ensures precise and efficient control of substantial electric motors in various industrial settings.
• Industrial Automation and Robotics: Powers advanced robotic systems and automated machinery, enhancing precision and reliability.

Why Choose This Model?

The Mitsubishi CM300DY-24NFH stands out as a premier choice for professionals seeking unparalleled performance and reliability in their power electronic designs. This module delivers a formidable 300 A at 1200 V with exceptional efficiency, crucial for minimizing energy consumption and operational costs. Its integration of Mitsubishi’s renowned trench-gate technology guarantees a low VCE(sat), translating into reduced power dissipation and optimized thermal performance. The isolated baseplate further augments its thermal management capabilities, ensuring stable operation and extended durability even under persistently high-stress conditions. Engineered specifically for resilience, the CM300DY-24NFH is reliable in harsh operating environments, making it suitable for critical applications where failure is not an option. It is the perfect solution for both Original Equipment Manufacturers (OEMs) and heavy-duty power systems, providing a solid foundation for innovation and sustained performance.

Order Now

The high-performance Mitsubishi CM300DY-24NFH IGBT module is readily available to enhance your power electronic applications. We ensure worldwide shipping, bringing this vital component directly to your project, wherever you are. This product is a key offering within our extensive Mitsubishi IGBT Modules collection, specifically curated for superior efficiency in power conversion and consistent reliability across diverse industrial automation landscapes. We invite you to explore our complete range of Mitsubishi IGBT Modules to discover other innovative solutions tailored to your specific needs. Additionally, broaden your search by visiting our main category for Power Electronics Components, where you can find a comprehensive selection of diodes, thyristors, GTOs, MOSFETs, and many other advanced semiconductor components to complete your designs.
