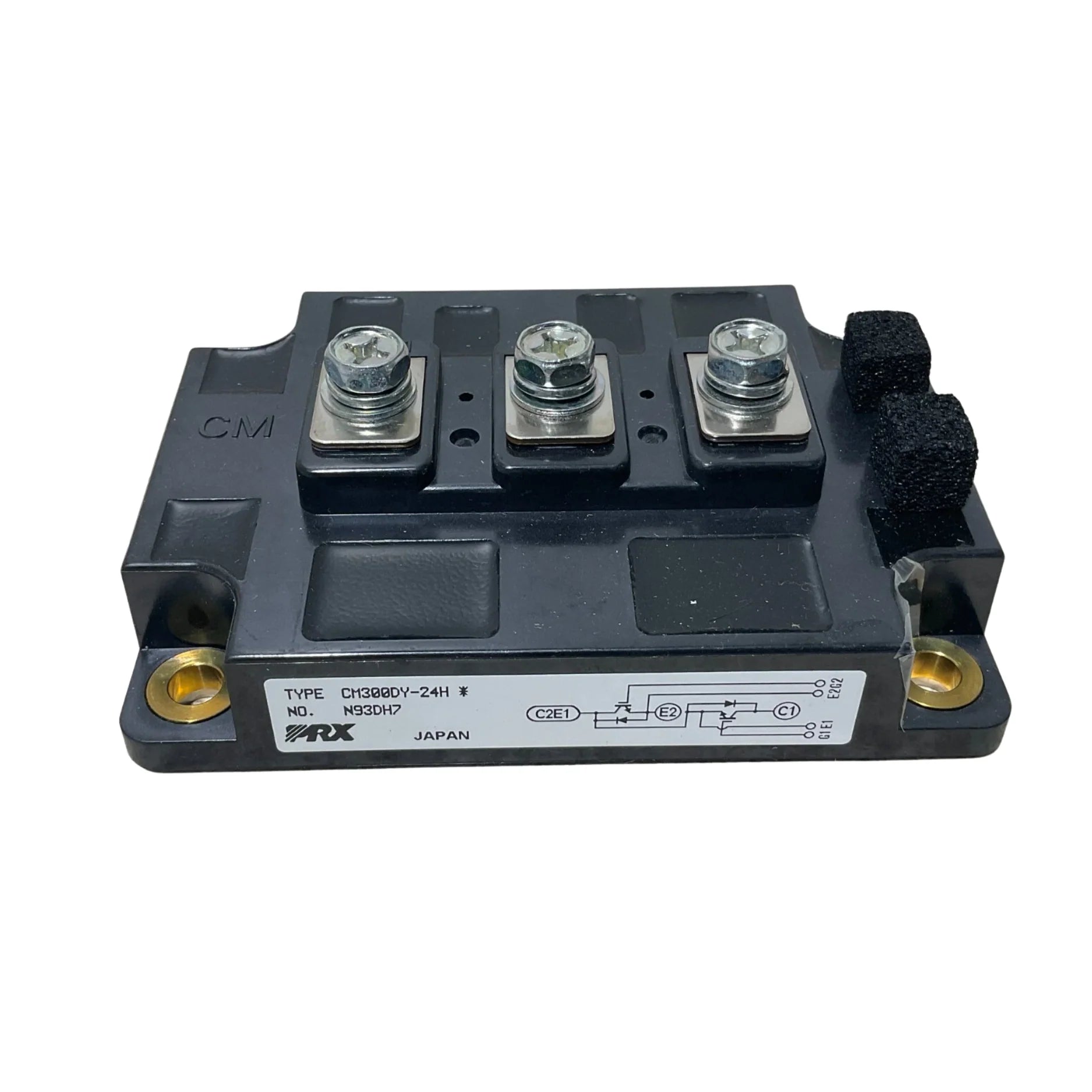

Mitsubishi CM300DY-24H

Overview

The Mitsubishi CM300DY-24H is a robust and high-performance dual Insulated Gate Bipolar Transistor (IGBT) module meticulously engineered for the most demanding industrial applications. This cutting-edge power semiconductor device is ideal for use in high-power inverters, sophisticated motor drives, and critical power conversion systems that require superior efficiency and unwavering reliability. Delivering an impressive 300 A continuous collector current and boasting a maximum collector-emitter voltage of 1200 V, the CM300DY-24H ensures stable and efficient operation under significant electrical loads. Its integration of fast-recovery diodes further enhances its performance by facilitating reliable high-speed switching, a crucial feature for modern power electronics.

Key Features

• Dual IGBT Module: Efficiently combines two IGBTs and two free-wheeling diodes within a single, compact package for streamlined circuit design.
• High Current Rating: Capable of handling a continuous collector current of 300 A, suitable for high-power applications.
• High Voltage Capability: Features a collector-emitter voltage of 1200 V, providing ample headroom for various industrial voltage requirements.
• Energy-Efficient Switching: Achieves low Vce(sat) (approximately 2.2 V @ 300 A), minimizing power losses and increasing system efficiency.
• Integrated Free-Wheeling Diodes: Built-in diodes ensure rapid current commutation and improved overall system reliability.
• Isolated Baseplate: Offers enhanced thermal management and simplified mounting to heatsinks while providing electrical isolation.
• Chassis-Mount Design: Facilitates easy and secure installation within industrial enclosures.
• Mitsubishi Quality and Durability: Engineered to the highest standards, ensuring long-term performance and reliability in harsh industrial environments.

Technical Specifications

• Model: CM300DY-24H
• Configuration: Dual IGBT + Dual Diode
• Collector Current (Ic): 300 A (continuous)
• Collector-Emitter Voltage (Vces): 1200 V
• Vce(sat): Approx. 2.2 V @ 300 A
• Input Capacitance: ~140 nF
• Turn-on/off Time: Fast switching response
• Gate-Emitter Voltage: ±20 V
• Operating Temperature: –40 °C to +150 °C
• Package: Chassis-mount module with insulated base

Applications

• High-Power Inverters: Essential for converting DC to AC in various industrial settings.
• AC/DC Motor Drives: Provides precise control and efficient operation for industrial motors.
• UPS and Power Backup Systems: Ensures reliable and uninterrupted power supply for critical loads.
• Induction Heating and Welding Equipment: Delivers the high power required for these demanding processes.
• Renewable Energy Converters (Solar/Wind): Optimizes power conversion in solar and wind energy systems.

Why Choose This Model?

The Mitsubishi CM300DY-24H stands out as a premier choice for professionals seeking unparalleled performance and reliability in power electronics. Its exceptional high current (300 A) and voltage (1200 V) ratings make it perfectly suited for the most demanding loads in industrial automation. The efficient dual IGBT design not only streamlines power circuitry but also contributes to reduced system complexity and cost. With low Vce(sat) and integrated free-wheeling diodes, this module guarantees excellent heat dissipation and superior switching efficiency, leading to significant energy savings. Furthermore, choosing a Mitsubishi module means investing in a product backed by a legacy of quality and trusted performance in industrial automation worldwide. Its robust construction and advanced features ensure long operational life and consistent performance in challenging environments.

Order Now

The high-power Mitsubishi CM300DY-24H IGBT module is readily available and poised to enhance your power conversion and motor drive applications. We offer worldwide shipping to ensure that this critical component reaches your facility efficiently. This product proudly represents a core part of our extensive Mitsubishi IGBT Modules collection, which is specifically curated for high-efficiency power conversion and dependable performance across various industrial automation sectors. We invite you to browse and explore the complete range of our Power Electronics Components, where you can discover a diverse selection of diodes, thyristors, GTOs, MOSFETs, and other cutting-edge semiconductor solutions to meet all your design requirements.
