Mitsubishi CM300DY-13T IGBT module, 300 A 650 V, dual transistor, chassis mount

Mitsubishi CM300DY-13T

$298.00
$298.00
Skip to product information

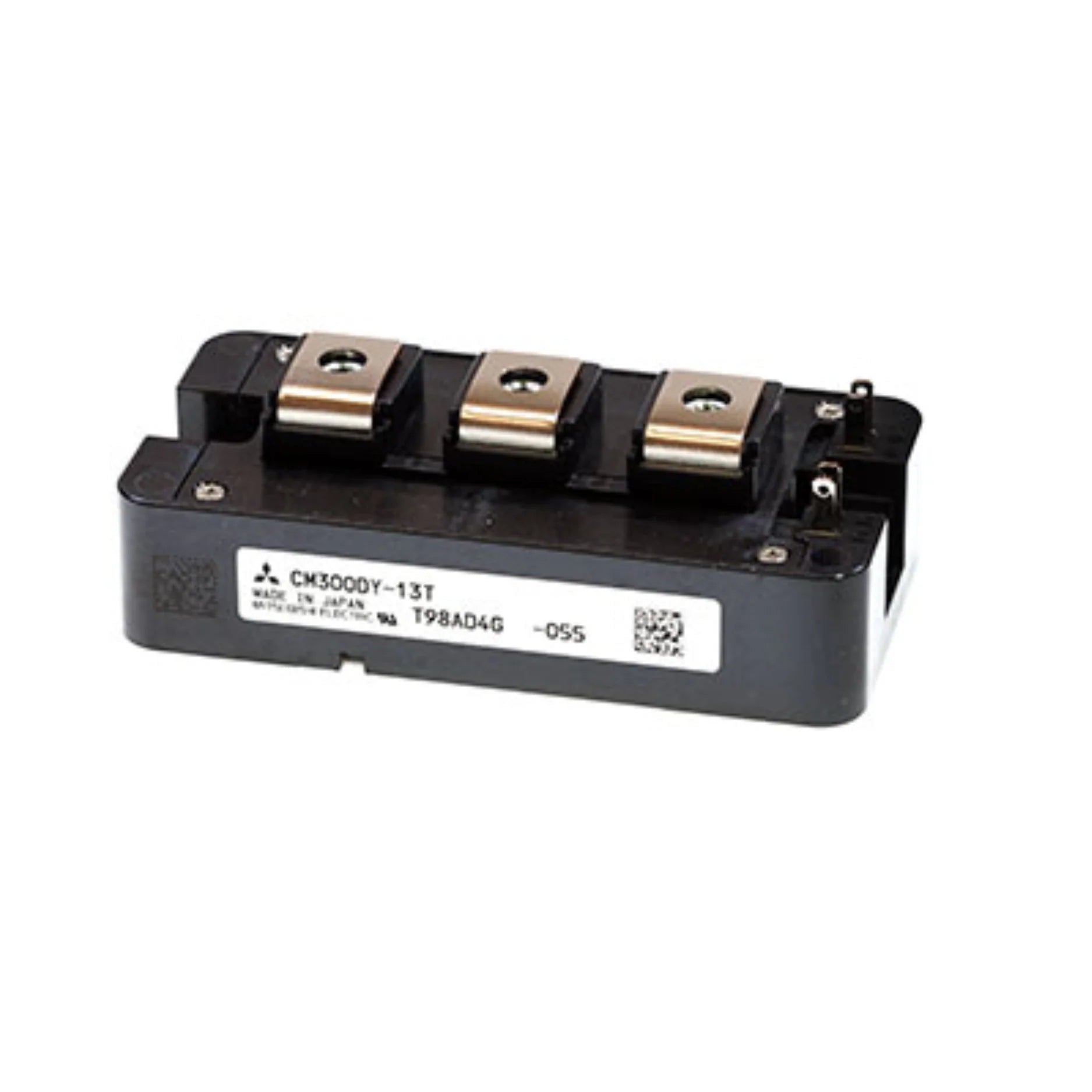

Mitsubishi CM300DY-13T IGBT module, 300 A 650 V, dual transistor, chassis mount
  • Mitsubishi CM300DY-13T IGBT module, 300 A 650 V, dual transistor, chassis mount
  • Mitsubishi CM300DY-13T IGBT module, 300 A 650 V, dual transistor, chassis mount
Mitsubishi CM300DY-13T

Mitsubishi CM300DY-13T

$298.00
$298.00

Overview

The Mitsubishi CM300DY-13T is a high-performance, dual IGBT power module engineered for demanding medium-to-high power applications. This robust module is precisely rated for 300 Amperes and 650 Volts, making it an ideal choice for systems requiring highly efficient and supremely reliable switching capabilities. At its core, the CM300DY-13T integrates advanced trench-gate IGBT technology coupled with integrated fast-recovery diodes. This sophisticated design minimizes power losses, ensures rapid operational response, and significantly enhances thermal performance, crucial for longevity and stability in industrial environments. Further bolstering its resilience, the module features an insulated baseplate and a rugged construction, guaranteeing exceptional durability and consistent operation even in the most challenging conditions. This product is a testament to Mitsubishi Electric's commitment to quality and innovation in power electronics.

Key Features

  • Dual IGBT Half-Bridge Configuration: Provides versatile and efficient power switching for various applications.
  • High Current and Voltage Rating: Rated at 300 A and 650 V, suitable for substantial power demands.
  • Trench-Gate IGBT Technology: Delivers superior efficiency through reduced conduction and switching losses.
  • Integrated Fast-Recovery Diodes: Enhances overall system efficiency and reliability by minimizing reverse recovery losses.
  • Isolated Baseplate: Ensures effective thermal dissipation and simplifies mounting, promoting extended operational life.
  • Rugged Chassis Mount Design: Built for durability and stability in harsh industrial settings.
  • Compact and Robust Module Package: A space-saving design that doesn't compromise on performance or reliability.

Technical Specifications

  • Part Number: CM300DY-13T
  • Configuration: Dual IGBT with fast diodes
  • Collector Current (IC): 300 A
  • Collector-Emitter Voltage (VCE): 650 V
  • Collector-Emitter Saturation Voltage (VCE(sat)): Approximately 2.0–2.2 V @ 300 A
  • Gate-Emitter Voltage (VGE): ±20 V
  • Switching Characteristics: Fast switching speeds optimizing system responsiveness.
  • Thermal Resistance (Junction-Case): Approximately 0.08 °C/W, ensuring efficient heat management.
  • Mounting Type: Chassis mount with an isolated base for enhanced safety and thermal performance.
  • Operating Temperature Range: –40 °C to +150 °C, offering broad environmental adaptability.
  • Package Type: Standard industrial IGBT module format.
  • Weight: Approximately 450 g

Applications

  • Inverters and Motor Drives: Essential for precise control and efficiency in industrial motor applications.
  • Renewable Energy and Power Conversion Systems: Crucial for optimizing energy flow in solar, wind, and other renewable installations.
  • Uninterruptible Power Supplies (UPS) and Automation: Provides reliable power management for critical infrastructure.
  • Heavy-Duty Industrial Control: Supports robust and stable operation in demanding manufacturing and process control.
  • Welding and Energy Systems: Delivers high-current switching for advanced welding equipment and energy applications.

Why Choose This Model?

The Mitsubishi CM300DY-13T stands out as a premier choice for professionals seeking unparalleled performance and reliability in power management. Its robust 300 A current and 650 V blocking voltage capacity ensures it can handle significant power loads with ease. The integration of low-loss trench-gate technology dramatically improves energy efficiency, leading to reduced operational costs and a smaller thermal footprint. With built-in protection via fast-recovery diodes, system integrity is maintained even during rapid switching events. Furthermore, by choosing the CM300DY-13T, you are investing in Mitsubishi Electric's renowned quality and performance—a brand synonymous with innovation and dependability in power electronics. The efficient thermal design, facilitated by its isolated mounting, guarantees stable and long-term operation, making it an intelligent and economical choice for your most critical applications.

Order Now

Secure the Mitsubishi CM300DY-13T IGBT module today and elevate your power conversion and control systems. This high-demand product is readily available and capable of worldwide shipment, ensuring that you can access this essential component no matter your location. The CM300DY-13T is a proud member of our comprehensive Mitsubishi IGBT Modules collection, meticulously designed to offer high-efficiency power conversion and unwavering performance across various industrial automation tasks. We invite you to explore the entire range of Mitsubishi IGBT Modules to discover more innovative solutions that meet your specific requirements. Additionally, expand your search within our main category, Power Electronics Components, where you will find an extensive selection of essential semiconductor solutions, including a variety of diodes, thyristors, GTOs, MOSFETs, and other advanced components to complete your designs.
